101 Exam - Application Delivery Fundamentals

NEW QUESTION 1
An administrator needs to allow secure access to application within the corporate data center for remote office, branch office and mobile employees.
Which F5 product provides this functionally?

• A. APM
• B. ASM
• C. GTM
• D. AFM

Answer: A

NEW QUESTION 2
An administrator needs to load balance connections to the application server with the lowest number of Which load balancing method meets these requirements?

• A. Least Sessions
• B. Ratio Least Connections (member)
• C. Least Connections (member)
• D. Least Connections (node)

Answer: D

Explanation:
https:/support f5 com/csp/article/K9573

NEW QUESTION 3
User A and User B's workload are on the same VLAN, but connected through a transparent layer 2 bridge in use B's ARP table. Which MAC address is reported for user A's workstation?

• A. The physical port MAC address on the bridge for user A’s workstation
• B. The MAC address of the 12 bridge
• C. The MAC address of User A's workstation
• D. The physical port MAC address on the bridge for user B*s workstation

Answer: D

NEW QUESTION 4
ATP administrator recently added a new VLAN and needs to confirm that the BIG IP sees traffic on this VLAN. The VLAN is untagged on interface 1.1 and is named VLAN704 in the BIG IP Configuration Unity.
Which tool should be used to generate a packet capture that shows all traffic on this VLAN?

• A. netstat
• B. map
• C. tcpdump
• D. ifconsfig

Answer: C

NEW QUESTION 5
An administrator needs a remote VPN solution for corporate users. The existing network infrastructure has web-based services. The administrator needs to select the VPN that is the least complicated to deploy.
Which VPN solution should the administrator choose?

• A. IPSec
• B. L2TP
• C. SSL
• D. PPTP

Answer: A

NEW QUESTION 6
A client needs to learn if a web server supports POST Which HTTP method is used?

• A. OPTIONS
• B. TRACE
• C. LIST
• D. GET

Answer: A

Explanation:
https //developer mozilla.org/en-US/docs/Web/HTTP/Methods/OPTION

NEW QUESTION 7
An administrator needs to do the following
* install a load balancer in front of an existing application
* test application performance
* avoid reconfiguration of the application server
* avoid interruption of users accessing the application

• A. modify the test client's local host file
• B. modify the DNS Server A-record for the application
• C. configure IP Anycasting
• D. configure Port Address Translation

Answer: A

NEW QUESTION 8
Given the service list of a server shown, the administrator needs to determine why users are unable to resolve the IP addresswww.example.com.
What is the causing this issue?

• A. bigd is down
• B. named is down

Answer: B

Explanation:
berkely internetname daemon (DNS) bigd is the health checking daemon

NEW QUESTION 9
A client’s operating system needs to make sure that data received from a server is mapped to the application that requested it.
How does it complete this mapping?

• A. using the TCP sequence number
• B. using the client source port
• C. using the TCP acknowledgement number
• D. using the server source port

Answer: B

NEW QUESTION 10
In a fully proxy architecture, what is considered the client in the server-side communications

• A. the ADC
• B. the switch
• C. the server
• D. the client workstation

Answer: A

NEW QUESTION 11
A company recentlyopened a new branch site. The site needs to access the internet through a link to HQ.Therouter at the branch Branch1 the router at HQ is Called core1. The computers at the branch site reside on the network 192 168 1 0/24 directly connected to Branch1 Users at HQ can already access the Internet.What routing must be configured to achieve the required internet connectivity for the branch site?

• A. a route for 0. 0. 0.0/0 on Branch1 to Core1, and a route for 192 168 1 0/24 from Core 1 to Branch1
• B. a route for 0. 0. 0.0/0 on Core 1 to Branch1. and a route (or 192 168 1.0/24 from Branch 1 to Core.
• C. only a route for 192 168 0 0724 from Corel to Branch1
• D. only a route for 0. 0.0.0/0 on Branch1 to Core1

Answer: A

NEW QUESTION 12
A server is capable of handling more connections than other servers in the same pool. Which load distribution method should the administrator choose?

• A. Least Connections
• B. Fastest
• C. Ratio
• D. Round Robin

Answer: C

NEW QUESTION 13
A BIG IP administrator is testing a web server behind ADC. The connection to a Virtual Server is successful but the page is still not loading Where should the administrator test to determine if theserver is available?

• A. from server-side interface in ADC.
• B. from client side interface in ADC
• C. from Workstation client
• D. from switch connected to ADC and Server

Answer: A

NEW QUESTION 14
A BIG IP Administrator reviews the Virtual Server configuration and sees the object status represented by a blue square tor an unknown status.How should the administrator change the unknown status?

• A. restart the BIG-IP device
• B. assign a monitor to the pool
• C. restart the backend webserver
• D. run a packet capture on the BIG-IP device

Answer: B

NEW QUESTION 15

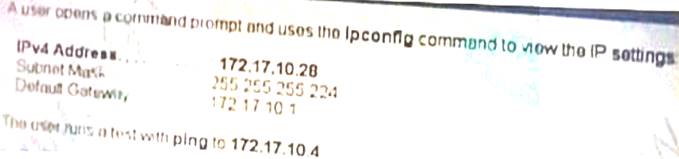

Which of the following would happen?

• A. The PC sends a DNS query for 172. 17. 10. 1
• B. The PC sends an ARP looking for the MAC address of 172. 17. 10. 4
• C. The PC sends an ARP looking for the MAC address of 172. 17. 10. 1
• D. The PC sends a DNS query for 172.17.10 4

Answer: B

NEW QUESTION 16
A BIG-IP Administrator needs to make sure that requests from a single user are directed to the server that was initially selected (unless that server is marked down). What should the administrator configure?

• A. caching profile
• B. TCP profile
• C. persistence profile
• D. security policy

Answer: C

NEW QUESTION 17
......
