1Y0-403 Exam - Citrix Virtual Apps and Desktops 7 AssessmentDesign and Advanced Configurations

NEW QUESTION 1
Scenario: A Citrix Architect is designing a multi-data center Citrix Virtual Apps and Desktops environment that will use Citrix Provisioning (PVS) to manage Virtual Delivery Agent (VDA) machine images. Each data center will have a separate PVS farm. During design discussions, the architect created a diagram to depict the way in which vDisk files will be replicated among PVS farms, based on the available storage for the vDisk stores.

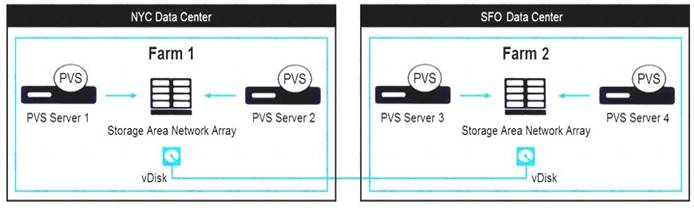

Click the Exhibit button to view the diagram.

Overall, the customer has identified 3 objectives for the image-replication process:
Administrative time required to replicate images among farms must be minimized.
Pre-existing infrastructure and processes should be used where possible.
Which method should the architect use to replicate vDisk files among data centers?

• A. Manual copy
• B. Scheduled RoboCopy commands
• C. SAN replication
• D. vDisk Replicator Utility
• E. Microsoft Distributed File System Replication (DFSR) Namespaces

Answer: C

Explanation:
"vDisks and Storage – For vDisk stores hosted on local, Direct Attached Storage (DAS) or Storage Area Network (SAN), replication should be used to synchronize the vDisks. If using Network Attached Storage (NAS), ensure that the vDisks are hosted on a highly available network share."
https://docs.citrix.com/en-us/xenapp-and-xendesktop/7-15-ltsr/citrix-vdi-best-practices/design/design-userlayer4

NEW QUESTION 2
Scenario: A Citrix Architect is designing a new Citrix Virtual Apps and Desktops environment. The design has a Primary Zone and 3 Satellite Zones. Each Satellite Zone has a number of Virtual Delivery Agent (VDA) machines that belong to a single Delivery Group spanning all 3 Satellite Zones.

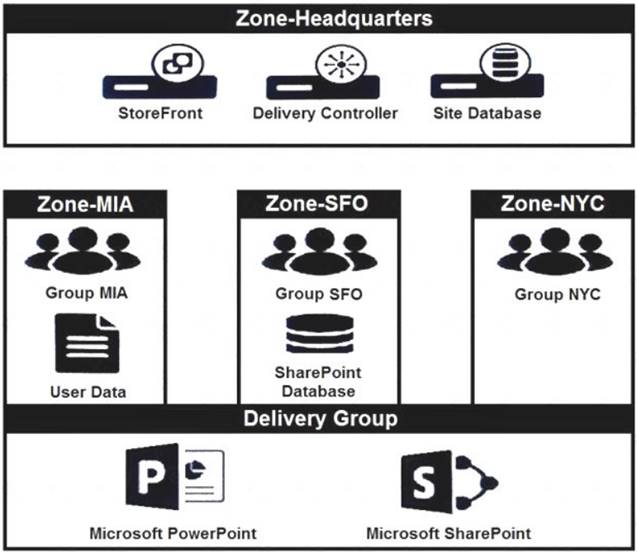

Click the Exhibit button to view more details about the configuration.

How should the architect ensure that the SharePoint application has optimal performance for all user groups?

• A. Use PowerShell to change the process priority to high for SharePoint within Zone-SFO.
• B. Publish SharePoint in an individual Delivery Group within each zone.
• C. Edit the application properties to set Zone-SFO as the Home Zone for SharePoint.
• D. Edit the zone properties to only allow SharePoint to launch in Zone-SFO.

Answer: C

NEW QUESTION 3
Scenario: A Citrix Architect is designing a new Citrix Virtual Apps and Desktops environment. The architect has identified the Resource Layer requirements shown in the exhibit.

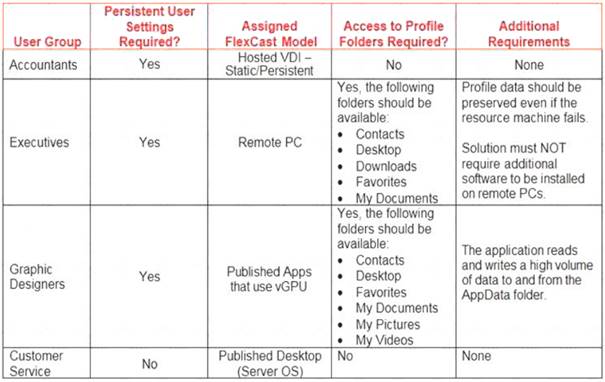

Click the Exhibit button to view the requirements.

Which feature of Citrix Profile Management could help the architect address the Graphic Designers Group requirements while minimizing login time?

• A. Profile streaming
• B. Active write back
• C. Folder redirection
• D. File exclusions

Answer: C

Explanation:
https://docs.citrix.com/en-us/profile-management/current-release/profile-management-best-practices.html

NEW QUESTION 4
Scenario: A Citrix Architect designed an active-passive Citrix Virtual Apps and Desktops environment, where the passive data center serves as the disaster recovery (DR) data center for all users.
Twelve items have been configured:
Citrix ADC Global Server Load Balancing (GSLB) to provide single URL direction to the active data center.
GSLB has health monitors configured for the load balanced servers.
Citrix Gateways are on both data centers.
Citrix ADC load balancing occurs for StoreFront and Delivery Controller XML services.
A single Citrix Virtual Apps and Desktops Site exists.
Four Delivery Controllers are members of the Site.
Two Delivery Controllers are members of the Primary Zone in the active data center.
Two Delivery Controllers are members of the Satellite Zone in the passive data center.
SQL is deployed in the active data center.
Local Host Cache is enabled.
Two StoreFront servers are deployed in each data center aggregating resources from the Delivery Controllers in the respective data center.
Virtual Delivery Agent (VDA) machines are deployed in both data centers and configured to register with Delivery Controllers in their zone.
What would happen if the Delivery Controllers in the primary data center were turned off?

• A. VDA machines from the primary data center would register with the Delivery Controllers in the passive data center.
• B. StoreFront in the primary data center would still be able to launch sessions.
• C. GSLB will start redirecting connections to the secondary data center.
• D. GSLB will NOT identify that the Delivery Controllers are down and sessions CANNOT launch.

Answer: C

Explanation:
GSLB will start redirecting connections to the secondary data center, as GSLB is aware the controllers are down.

NEW QUESTION 5
Scenario: A Citrix Architect is designing a new 2,000-user Citrix Virtual Apps and Desktops environment. The environment will use Windows Server 2016 for all Site infrastructure components (Delivery Controllers, StoreFront servers, and Citrix Director). Machine Creation Services (MCS) will be used to provision Virtual Delivery Agent (VDA) machines. The environment will include 2 primary use cases:
Windows Server 2016 VDA machines providing hosted applications
Windows 10 VDA machines providing random, non-persistent VDI
The IT team has NOT yet purchased the hardware that will be used for the environment, and will build the Hardware Layer components based on the architect’s recommendations.
How should the architect design the Citrix Hypervisor resource pools based on Citrix leading practices?

• A. Windows Server 2016 VDA machines should be placed in 1 resource pool, Windows 10 machines should be placed in a second resource pool, and the infrastructure servers should be placed in a third resource pool.
• B. Windows Server 2016 machines should be placed in 1 resource pool, and all Windows 10 machines should be placed in a second resource pool.
• C. The infrastructure servers and all VDA machines should be located in 1 resource pool.
• D. The infrastructure servers should be placed in 1 resource pool, and the VDA machines should be placed in a second resource pool.

Answer: D

NEW QUESTION 6
Scenario: A Citrix Architect designing a new Citrix Virtual Apps and Desktops environment needs to determine which endpoints to include. Based on discussions with various departments, the user requirements listed in the exhibit were collected.

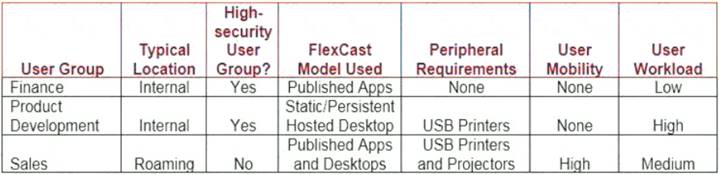

Click the Exhibit button to view the requirements.

In addition to the user requirements, the architect must address the organizational requirement of minimizing endpoint management effort.
Which endpoint type should the architect use for the Sales Group, based on the requirements?

• A. Corporate-owned thin client
• B. Bring-your-own device (BYOD) laptop/notebook
• C. Corporate-owned smartphone
• D. Corporate-owned laptop/notebook
• E. Bring-your-own device (BYOD) smartphone

Answer: B

NEW QUESTION 7
A Citrix Architect needs to enable the security of the Virtual Delivery Agent (VDA) by evaluating the ‘Enable- VdaSSL.ps1 -Enable’ script.
Which supported SSL protocol version is least secure when using the default settings of the script?

• A. TLS 1.0
• B. SSL 3.0
• C. TLS 1.2
• D. TLS 1.1
• E. SSL 1.0
• F. SSL 2.0

Answer: A

Explanation:
Defaults setting is TLS 1.0 (Script -> .PARAMETER SSLMinVersion Specifies the minimum SSL version (allowed values are SSL_3.0, TLS_1.0, TLS_1.1 and TLS_1.2). Default is TLS_1.0. )
https://support.citrix.com/article/CTX220062

NEW QUESTION 8
Scenario: A Citrix Architect is configuring a multi-location profile strategy as part of a large Citrix Virtual Apps and Desktops solution. The architect needs to implement a single policy that sets the profile path for all users and distributes the user profiles between 3 shares and 9 file servers.
New York users: Server: NYC-FS.company.lan – Share: NYC-Profiles$
Miami users: Server: MIA-FS.company.lan – Share: MIA-Profiles$
San Francisco users: Server: SFO-FS.company.lan – Share: SFO-Profiles$
Which value constitutes a valid path for use with a Citrix Profile Management policy?

• A. \\%DataCenter%-FS.company.lan\%UserHome%-Profiles$\#sAMAccountName#\%ProfileVer%\
• B. \\%DFS-ROOT%.company.lan\%HomeShare%$\#sAMAccountName#\%ProfileVer%\
• C. \\#DataCenter#-FS.company.lan\#DataCenter#-Profiles$\#sAMAccountName#\%ProfileVer%\
• D. \\#DFS-ROOT#.company.lan\%HomeLocation%$\#sAMAccountName#\%ProfileVer%\

Answer: C

Explanation:
"You configure the path to the user store as:
\\#l#.userstore.myschools.net\profile\#sAMAccountName#\%ProfileVer%\" https://docs.citrix.com/en-us/profile-management/current-release/plan/multiple-file-servers.html

NEW QUESTION 9
Scenario: A Citrix Architect is creating a conceptual architecture for a Citrix Virtual Apps and Desktops environment. Based on some initial discussions around the company’s business goals and objectives, the architect collected the information shown in the exhibit.

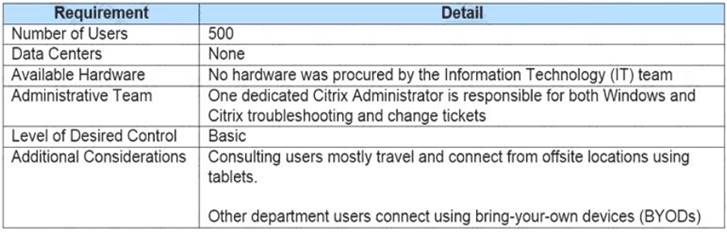

Click the Exhibit button to view the information.

Which delivery model should the architect recommend?

• A. Single-Site in Citrix Cloud, with resources hosted in public cloud
• B. Single-Site, single-zone, and single on-premises data center
• C. Multi-Site, and single on-premises data center
• D. Multi-Site in Citrix Cloud, with resources hosted in public cloud

Answer: B

NEW QUESTION 10
Scenario: A Citrix Architect is designing a new Citrix Virtual Apps and Desktops environment. Management has advised that they have a limited budget for the new solution. However, they still expect the design to account for future growth without the need to redesign or repurchase central hardware components. Additionally, the current 1 Gb network infrastructure CANNOT be replaced within the scope of this project. The architect has determined that the company can support both current and future load with 2 to 3 separate Virtual Delivery Agent (VDA) machine images.
Which two features should the architect consider while designing the Citrix Hypervisors for the proposed Citrix environment? (Choose two.)

• A. Thin provisioning
• B. PXE boot with PVS
• C. Boot from SAN
• D. vApps
• E. iSCSI storage
• F. Intellicache

Answer: AF

NEW QUESTION 11
Scenario: A Citrix Architect is designing a new Citrix Virtual Apps and Desktops environment. Two Control Layer security requirements have been identified:
For security reasons, it is unacceptable to use default ports for FlexCast Management Architecture (FMA) services.
Management access to PowerShell and Citrix Studio should be restricted to management workstations by
granular firewall rules.
Which combination of ports can the architect assign to the listed Citrix services to meet the Control Layer security requirements?

• A. VDA Registration Port: 80 XML SSL Port: 80 SDK Port: 8083
• B. VDA Registration Port: 8081 XML SSL Port: 443 SDK Port: 80
• C. VDA Registration Port: 8081 XML SSL Port: 8082 SDK Port: 8083
• D. VDA Registration Port: 8081 XML SSL Port: 8083 SDK Port: 8083

Answer: B

NEW QUESTION 12
Scenario: A Citrix Architect is developing a Citrix Provisioning (PVS) design for a healthcare organization. The initial design places all PVS farm components in the primary data center of the organization. The customer asks if the vDisk can be streamed from PVS servers in the primary data center to target devices located in a secondary data center in another region, while still maintaining good performance. The data centers are connected with a 10 GB link with approximately 20 ms of latency.
The architect recommends against the organization pursuing this approach. Which statement is a relevant
reason for this recommendation?

• A. This configuration would introduce excessive latency in streaming traffic.
• B. This configuration does NOT provide sufficient connectivity between PVS servers and the farm database.
• C. This configuration prevents the Subnet Affinity feature from being implemented.
• D. This configuration does NOT provide sufficient bandwidth for streaming traffic.

Answer: A

Explanation:
"If having a global PVS Farm across data centers is required, Citrix recommends additional testing to confirm network performance and reliability, this is especially relevant for networks with higher latency (>15ms). If reliability and performance cannot be guaranteed then it is best to implement multiple PVS farms with local SQL databases for optimal performance and reliability." https://support.citrix.com/article/CTX220651

NEW QUESTION 13
Scenario: A Citrix Architect needs to support a Citrix Virtual Apps and Desktops environment with 2 data centers. App Layering is being used to create layered images that are used by the Virtual Delivery Agent (VDA) machines in both data center locations. To comply with disaster recovery (DR) requirements, administrators must be able to modify and deploy layered images from either data center if needed.
Which statement correctly describes the process that the architect must follow to meet the requirements?

• A. All required layers should be exported from the first Enterprise Layer Manager using the hypervisor hosting the machine, then imported to the hypervisor resource pool in the secondary data center.
• B. All required layers should be copied from the first Enterprise Layer Manager to the second Enterprise Layer Manager using Microsoft Distributed File System Replication (DFSR)
• C. All required layers should be exported from the first Enterprise Layer Manager to an SMB file share, and then imported into the second Enterprise Layer Manager.
• D. All required layers should be copied from the first Enterprise Layer Manager to the second Enterprise Layer Manager using RoboCopy commands

Answer: B

NEW QUESTION 14
Scenario: An additional zone was recently added to a Citrix Virtual Apps and Desktops environment. The main zone is located in New York City, and a small, second zone is located in Tokyo. Within the next year, the number of users in Tokyo is expected to equal that in New York City.
A Citrix Architect recommended the addition of 2 StoreFront servers in Tokyo to support the users.
What should the architect recommend for this environment to ensure user-experience consistency and reduce WAN bandwidth consumption?

• A. Add 2 StoreFront servers to separate server groups and configure subscription synchronization
• B. Add 2 StoreFront servers and configure the Optimal Gateway routing feature
• C. Add 2 standalone StoreFront servers
• D. Add 2 StoreFront servers to the same server group

Answer: B

NEW QUESTION 15
Scenario: A Citrix Architect is designing a new Citrix Virtual Apps and Desktops environment for a marketing company. Several departments within the company utilize 3D applications based on OpenGL and Direct X. These applications run as hosted applications within 5 different virtual machines running on a single Citrix Hypervisor host. The host is configured with 1 single physical GPU running Intel Iris Pro technology.
Which HDX 3D Pro method should the architect utilize for these 3D applications?

• A. Software-virtualized GPU
• B. Pass-through GPU
• C. Hardware-virtualized GPU
• D. CUDA-virtualized GPU

Answer: B

NEW QUESTION 16
Scenario: A Citrix Architect is designing a new Citrix Virtual Apps and Desktops environment. Management has requested dynamic distribution of users between the primary and backup data centers to ensure that all available hardware is utilized during normal operations.
What is the biggest risk the architect should highlight to the customer when designing the profile strategy?

• A. Scale-Out File Servers are required to support active-active profile deployments
• B. Using Microsoft Distributed File System Replication (DFSR) to replicate user profiles requires significant bandwidth
• C. Replicating profiles between the 2 data centers will double storage costs
• D. Roaming profiles are NOT supported in active-active Microsoft Distributed File System Replication (DFSR) deployments

Answer: B

NEW QUESTION 17
Scenario: A Citrix Architect is designing a Citrix Virtual Desktops environment. The Graphic Designers Group uses graphic-intensive applications. Graphic designers will be provided with a Windows 10-hosted assigned desktop, with NVIDIA graphics hardware acceleration. HDX 3D Pro mode was selected during the installation of the Virtual Delivery Agent (VDA).
What is the maximum number of monitors supported for the Graphic Designers Group?

• A. 4
• B. 1
• C. 2
• D. 8

Answer: A

Explanation:
https://support.citrix.com/article/CTX201696

NEW QUESTION 18
Scenario: A Citrix Architect is designing a new Citrix Virtual Apps and Desktops environment. The architect has identified the Resource Layer requirements shown in the exhibit.

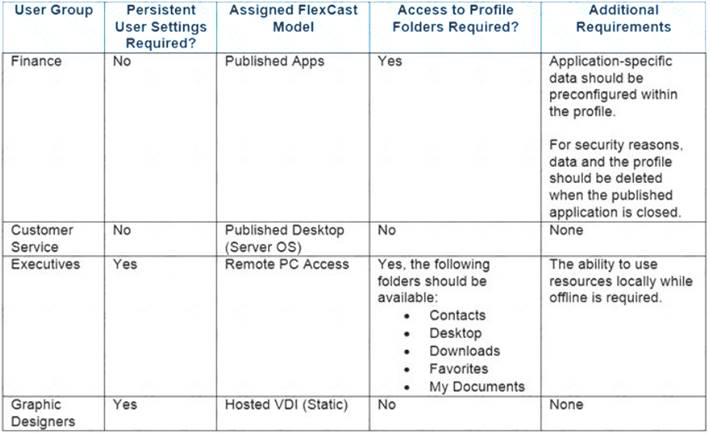

Click the Exhibit button to view the requirements.

Additionally, management identified 2 general Resource Layer requirements:
The time required to configure the solution should be minimized.
Different user groups can use different profile solutions.
Which profile type should the architect consider for the Finance Group?

• A. Hybrid
• B. Mandatory
• C. Roaming
• D. Local

Answer: B

NEW QUESTION 19
Scenario: A Citrix Architect is designing a new Citrix Virtual Apps and Desktops environment. During the assessment, the architect determined the applications and characteristics.

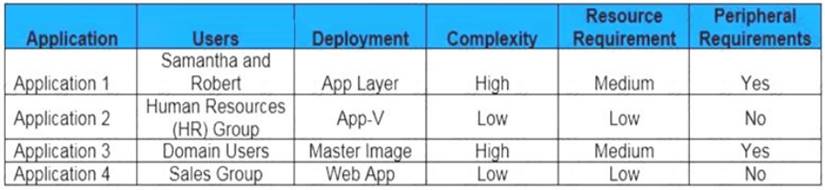

Click the Exhibit button to view the list of applications and characteristics.

To which application category does Application 1 belong, based on the information in the exhibit?

• A. Departmental
• B. User
• C. Common
• D. Management

Answer: B
