NEW QUESTION 1
A BIG-IP Administrator finds the following log entry:
tnm tmm[7141]: 011e0002:4: sweeperjjpdate: aggressive mode activated. Which action should the BIG-IP Administrator to mitigate this memory issue?
- A. Configure the redundant par to be active-active
- B. Decrease the TCP profile ide Timeout value
- C. increase the TCP profile ide Timeout value
- D. Configure the serve to use Connection Mirroring
Answer: D
NEW QUESTION 2
A BIG-IP Administrator is creating a new Trunk on the BIG-IP device. What objects should be added to the new Trunk being created?
- A. Interfaces
- B. Network routes
- C. VLANS
- D. IP addresses
Answer: A
Explanation:
trunk is a portchannel, you need to add a physical interface.
NEW QUESTION 3

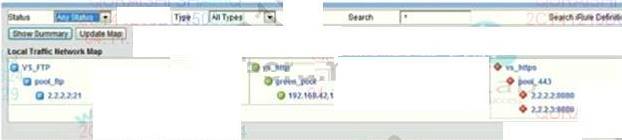

Refer to the exhibit.
How many nodes are represented on the network map shown?
- A. Four
- B. Three
- C. One
- D. Two
Answer: B
NEW QUESTION 4
Which statement is true concerning SNATs using automap?
- A. Only specified self-IP addresses are used as automap addresses.
- B. SNATs using automap will translate all client addresses to an automap address.
- C. A SNAT using automap will preferentially use a floating self-IP over a nonfloating self-IP.
- D. A SNAT using automap can be used to translate the source address of all outgoing traffic to the same address regardless of which VLAN the traffic is sent through.
Answer: C
NEW QUESTION 5
A BIG-IP Administrator creates an HTTP Virtual Server using an iApp template. After the Virtual Server is created, the user requests to change the destination IP addresses. The BIG-IP Administrator tries to change the destination IP address from 10.1.1.1 to 10.2.1.1 in Virtual Server settings, but receives the following error:
The application service must be updated using an application management interface What is causing this error?
- A. The Application Service was NOT deleted before making the IP address change.
- B. The IP addresses are already in use.
- C. The Application Services have Strict Updates enabled.
- D. The IP addresses used are NOT from the same subnet as the Self IP.
Answer: C
Explanation:
Strict Updates : Indicates whether the application service is tied to the template, so when the template is updated, the application service changes to reflect the updates.
NEW QUESTION 6
Refer to the exhibit
The network team creates a new VLAN on the switches. The BIG-IP Administrator needs to create a configuration on the BIG-IP device. The BIG-IP Administrator creates a new VLAN and Self IP, but the servers on the new VLAN are NOT reachable from the BIG-IP device.
Which action should the BIG-IP Administrators to resolve this issue?
- A. Set Port Lockdown of Set IP to Allow All
- B. Change Auto Last Hop to enabled
- C. Assign a physical interface to the new VLAN
- D. Create a Floating Set IP Address
Answer: C
NEW QUESTION 7
Refer to the exhibit.
Which two pool members should be chosen for a new connection? (Choose two.)
- A. 172.16.15.9.80
- B. 172.16.15.4.80
- C. 172.10.15.2.80
- D. 172.16.15.1.80
- E. 172.16.15.7.80
Answer: BE
NEW QUESTION 8
The current status of a given pool is offline (red). Which condition could explain that state? Assume the descriptions below include all monitors assigned for each scenario.
- A. No monitors are currently assigned to any pool, member or node.
- B. The pool has a monitor assigned to it, and none of the pool members passed the test.
- C. The pool has a monitor assigned to it, and only some of the pool's members passed the test.
- D. A monitor is assigned to all nodes and all nodes have passed the tes
- E. The pool's members have no specific monitor assigned to them.
Answer: B
NEW QUESTION 9
Which file should the BIG-IP Administrator check to determine when a Virtual Server changed its status
- A. /var/log/audit
- B. /var/log/lastlog
- C. /var/log/tm
- D. /var/log/monitors
Answer: C
NEW QUESTION 10
Assume a virtual server has a ServerSSL profile. What SSL certificates are required on the BIG-IP?
- A. No SSL certificates are required on the BIG-IP.
- B. The BIG-IP's SSL certificates must only exist.
- C. The BIG-IP's SSL certificates must be issued from a certificate authority.
- D. The BIG-IP's SSL certificates must be created within the company hosting the BIG-IPs.
Answer: A
NEW QUESTION 11
Refer to the exhibit.
Which Pool Members are receiving traffic?
- A. Serv1, serv2,serv3, serv4
- B. serv1, serv3
- C. serv1, serv3, serv4
- D. serv1
Answer: C
NEW QUESTION 12
A BIG-IP Administrator needs to install a HotFix on a standalone BIG-IP device, which has HD1.1 as the Active Boot Location. The BIG-IP Administrator has already re-activated the license and created an UCS archive of the configuration. In which sequence should the BIG-IP Administrator perform the remaining steps?
- A. Install HotFix in HD 1.1, Reboot the BIG-IP devic
- B. Install UCS Archive
- C. Install HotFix in HO 1.2, Install base Image in HD 1.2, Activate HD1.2
- D. Install base Image in HD1.2, Install HotFix in HD1.2, Activate HD 1.2
- E. Activate HD 1.2, Install base image in HD 1.2. Install HotFix in HD 1.2
Answer: C
NEW QUESTION 13

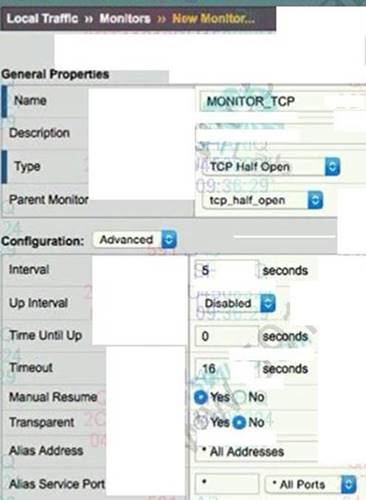

Refer to the exhibit.
A pool member fails the monitor checks for about 30 minutes and then starts passing the monitor checks. New traffic is Not being sent to the pool member.
What is the likely reason for this problem?
- A. The pool member is disabled
- B. Monitor Type is TCP Half Open
- C. Manual resume is enabled
- D. Time Until Up is zero
Answer: C
NEW QUESTION 14
DNS queries from two internal DNS servers are being load balanced to external DNS Servers via a Virtual Server on a BIG-P device. The DNS queries originate from 192.168.101.100 and 192.168.101.200 and target 192.168.21.50
All DNS queries destined for the external DNS Servers fail
Which property change should the BIG-IP Administrator make in the Virtual Server to resolve this issue?
- A. Protocol Profile (Client) to DNS-OPTIMZED
- B. Type to Performance (HTTP)
- C. Protocol to UDP
- D. Source Address to 192.168.101.0/24
Answer: C
NEW QUESTION 15
A BIG-IP Administrator must determine if a Virtual Address is configured to fail over to the standby member of a device group in which area of the Configuration Utility can this be confirmed?
- A. Device Management > Traffic Groups
- B. Device Management > Devices
- C. Local Traffic > Virtual Servers
- D. Device Management > Overview
Answer: C
NEW QUESTION 16
A BIG-IP Administrator discovers malicious brute-force attempts to access the BIG-IP device on the management interface via SSH. The BIG-IP Administrator needs to restrict SSH access to the
management interface.
Where should this be accomplished?
- A. System > Configuration
- B. Network > Interfaces
- C. Network > Self IPs
- D. System > Platform
Answer: D
