210-065 Exam - Implementing Cisco Video Network Devices v1.0

NEW QUESTION 1
Which three features are supported by Cisco TMSPE? (Choose three.)

• A. Simplified provisioning
• B. LDAP user import
• C. Scheduling via Microsoft Outlook
• D. FindMe
• E. Jabber for Windows
• F. Automatic endpoint upgrades

Answer: ABD

NEW QUESTION 2

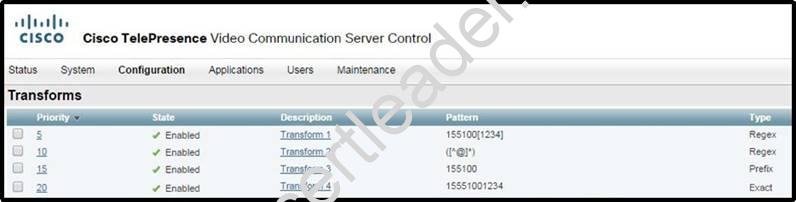

Refer to the exhibit.

A call with a destination alias of 15551001234 reaches a Cisco TelePresence VCS. Which transform will the destination alias match?

• A. Transform 1
• B. Transform 2
• C. Transform 3
• D. Transform 4

Answer: B

NEW QUESTION 3
A voice engineer installed and configured Cisco TMSXE in a Windows Server and integrated with Cisco TMS. Which action can now be taken?

• A. Use Windows PC as a Cisco TelePresence endpoint.
• B. Start Cisco TelePresence meetings online.
• C. Schedule Cisco TelePresence meetings through Outlook.
• D. Start Cisco TelePresence meetings with Cisco TelePresence endpoints.

Answer: C

NEW QUESTION 4
Cascading feature with TP Conductor and TP Server has 2 limitations:

• A. Multi-screen endpoints are supported with more than 3 TP Server cascading
• B. Scheduling conference is not supported
• C. Ad-hoc conferencing are supported with more than 3 TP Server cascading
• D. Ad-hoc conference is not supported
• E. Only single screen endpoints supported through cascading link

Answer: DE

NEW QUESTION 5
Cisco DX Series endpoints run on which operating system?

• A. TC
• B. Android
• C. CE
• D. Windows

Answer: B

NEW QUESTION 6
Which of these devices require configuration in order for an endpoint to initiate a Multiway conference?

• A. endpoint only
• B. Cisco TelePresence Video Communications Server only
• C. multipoint control unit only
• D. endpoint and multipoint control unit only
• E. endpoint and Cisco TelePresence Video Communications Server only
• F. endpoint, Cisco TelePresence Video Communications Server, and multipoint control unit

Answer: F

NEW QUESTION 7

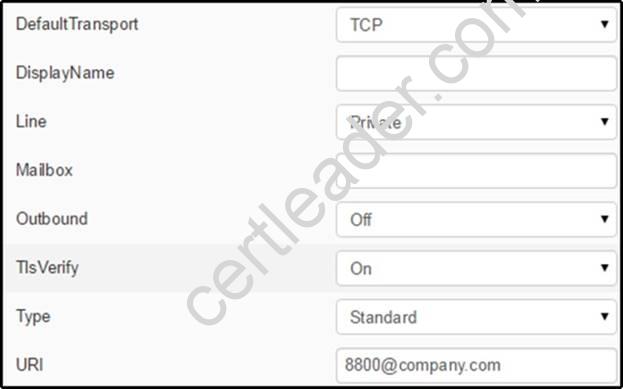

Refer to the exhibit.

Which kind of profile is shown?

• A. TC WebAdmin H.323 Profile
• B. TC WebAdmin SIP Profile
• C. TX WebAdmin SIP Profile
• D. TC WebAdmin Conference Profile

Answer: B

NEW QUESTION 8
Which two additional items must be configured for an endpoint to register manually with the Cisco TelePresence Video Communication Server for the SIP to function correctly? (Choose two.)

• A. E.164 alias
• B. H.323 ID
• C. SIP uniform resource indicator
• D. configured SIP registrar and proxy server
• E. NTP server IPv4 address
• F. unique system ID

Answer: CD

NEW QUESTION 9
Which two of these are required in order to complete the password recovery of a Cisco TelePresence System endpoint? (Choose two.)

• A. must have FTP enabled on the endpoint
• B. must have SSH enabled on the endpoint
• C. must have the security question answer for the endpoint
• D. must be in the same room as the main display
• E. must have SFTP enabled on the endpoint
• F. must call Cisco TAC for the security code

Answer: BD

NEW QUESTION 10
An end user using C series codec wants to change the participant layout for a meeting hosted on a Cisco TelePresence Server. What are three valid layout options available in codec web interface? (Choose three.)

• A. single screen
• B. loudest speaker
• C. rolling
• D. equal
• E. custom
• F. overlay

Answer: ADF

NEW QUESTION 11
Which endpoint use for multiparty with presentation capability and without centralized bridge?

• A. Jabber
• B. SX20
• C. 7800
• D. DX650

Answer: B

NEW QUESTION 12
Which means this command: set audio aec enable?

• A. aec codec enabled
• B. echo cancelation
• C. noise cancelation
• D. call economy bandwidth enable

Answer: B

NEW QUESTION 13
Which of the following first provided centralized call control capabilities for H.323 video endpoints?

• A. Gatekeeper
• B. CUCM
• C. MGCP
• D. MCU

Answer: D

NEW QUESTION 14
A company just acquired a Cisco MCU 5300 for multi videoconferencing. The networking engineer must create a conference. To which tab does the engineer go to create a conference?

• A. Endpoints
• B. Conferences
• C. Network
• D. Settings

Answer: B

Explanation: In this tutorial the instruction ‘Go to Conferences > Move participants’ means click the Conferences link on the menu bar and then click the Move participants tab.
https://www.cisco.com/c/dam/en/us/td/docs/telepresence/infrastructure/mcu/user_guide/Cisco_TelePresence_M

Topic 6, Simulation Questions

NEW QUESTION 15
Which four characteristics are associated with video? (Choose four)

• A. greedy
• B. TCP retransmits
• C. UDP priority
• D. delay sensitive
• E. drop sensitive
• F. benign
• G. bursty

Answer: CDEG

NEW QUESTION 16
An engineer is configuring a Cisco TelePresence System endpoint for use with a maximum of six people in the room. Which table type should be configured when setting up cameras where two participants directly face the endpoint display?

• A. short racetrack
• B. long racetrack
• C. short rectangle
• D. long rectangle

Answer: A

NEW QUESTION 17
A new Cisco TelePresence MCU 5300 is being installed. The customer requested a static IP address to be configured on this device. Which two methods address this request? (Choose two.)

• A. From the MCU console, issue the command set static ip-address netmask default-gateway.
• B. From the MCU console, issue the command xconfigure interface:1 static ip-address netmask.
• C. From the MCU console, issue the command static A ip-address netmask default-gateway.
• D. From the web interface, use the Network > Port A menu options.
• E. From the web interface, use the Settings > Interface menu options.

Answer: CD

NEW QUESTION 18
In a Cisco TelePresence conference that is hosted on a Cisco MCU, a single pane shows the person who is currently talking. What is this pane called?

• A. The host
• B. The active participant
• C. The active speaker
• D. The active floor

Answer: C
