300-160 Exam - DCID Designing Cisco Data Center Infrastructure

NEW QUESTION 1
Which item represents a method of increasing storage utilization efficiency?

• A. thick provisioning
• B. thin provisioning
• C. transparent provisioning
• D. weighted provisioning

Answer: B

NEW QUESTION 2
Which two statements about OTV are true? (Choose two.)

• A. OTV forwards and processes spanning-tree BPDUs between sites to ensure a loop-free topology.
• B. All OTV overlay interfaces must use the same join interface.
• C. OTV provides STP isolation because it does not transmit BPDUs across the overlay
• D. OTV utilizes the IS-IS routing protocol to propagate MAC address reachability information
• E. Multicast support in the transport network is a strict requirement to establish OTV adjacencies.
• F. OTV propagates MAC address reachability information via the underlying IS-IS control-plane.

Answer: CD

NEW QUESTION 3
Which two options are valid for enabling Layer 3 control between Cisco Nexus 1000V Series VSM and VEM? (Choose two)

• A. A virtual Ethernet interfaces
• B. A dedicated control interfaces
• C. An out-of-band management interface
• D. A VMWare vCenter virtual machine virtual interface
• E. A dedicated packet interfaces

Answer: BE

NEW QUESTION 4
Which statement describes an interconnect link between an FCoE NPV switch and an FCF switch?

• A. The interconnect must use port type NP on the FCoE switch.
• B. The interconnect must use port type VNP on the FCoE switch.
• C. The interconnect must use port type E on the FCoE switch
• D. The FCoE switch must create the tunnel interface and bind to the physical interconnect.

Answer: B

NEW QUESTION 5
Which option must be enabled to allow line-rate forwarding on a Fibre Channel port?

• A. F port
• B. TEport
• C. dedicated mode
• D. shared mode
• E. E port

Answer: C

NEW QUESTION 6

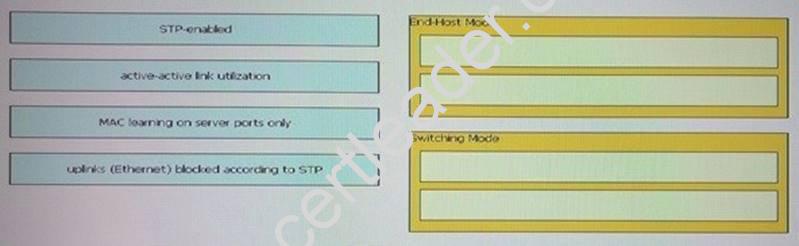

Drag and drop each Cisco UCS Fabric Interconnect feature on the left to the correct forwarding mode on the right.

Answer:

Explanation: End Host Mode:
MAC learning on server ports only Active-active link utilization Switching Mode:
STP-enabled
Uplinks (Ethernet) blocked according to STP

NEW QUESTION 7
You plan to configure OTV multicast. What must you enable to use SSM?

• A. IGMFv3
• B. PIM-DM
• C. IGMPv2
• D. PIM-SM
• E. PIM Anycast-RP

Answer: D

NEW QUESTION 8
Which component of a Cisco Nexus 1000V Series switch is responsible for propagating configurations to virtual switches?

• A. SUP
• B. FEX
• C. VSM
• D. VEM

Answer: C

Explanation: Product Architecture
The Cisco Nexus 1000V Series Switch has two major components (Figure 1): the virtual Ethernet module (VEM), which runs inside the hypervisor, and the virtual supervisor module (VSM), which manages the VEMs.
Virtual Supervisor Module
The Cisco Nexus 1000V Series VSM controls multiple VEMs as one logical modular distributed virtual switch. Configuration is performed through the VSM and is automatically propagated to the VEMs.
http://www.cisco.com/c/en/us/products/collateral/switches/nexus-1000v-switch-vmware-vsphere/data_sheet_c78

Topic 2, Main Exam Set 2 (NEW QUESTIONS)

NEW QUESTION 9
How is oversubscription between disk arrays and hosts calculated when you use only line-rate capable line cards?

• A. by dividing the total bandwidth of the disk array ports by the total bandwidth of the Inter-Switch Links
• B. dividing the total bandwidth of the host ports by the total bandwidth of the disk array ports
• C. by dividing the total bandwidth of the host ports by the total bandwidth of the Inter-Switch Links
• D. by dividing the total bandwidth of the disk array ports by the total bandwidth of the host ports

Answer: B

NEW QUESTION 10
What is used to insert services when using Layer 4 to Layer 7 service insertion in the Cisco ACI?

• A. device scripts
• B. tenant administrators
• C. policies
• D. function profiles

Answer: D

NEW QUESTION 11
Which two options are advantages when using NPIV? (Choose two.)

• A. allows a single physical N-Port to have single WWPNs, and therefore single N-Port IDs, associated with it
• B. NPIV-enabled physical N-Port can subsequently issue additional commands to register more WWPNs and receive more N-Port IDs (one for each WWPN).
• C. allows a 'single' physical N-Port to have multiple WWPNs, and therefore multiple N-Port IDs, associated with it
• D. NPV-enabled physical N-Port can subsequently issue additional commands to register more WWPNs and receive more N-Port IDs (one for each WWPN).
• E. allows 'multiple' single physical N-Port to have multiple WWPNs, and therefore multiple N-Port IDs, associated with it
• F. N-Port on the physical host would have only a single WWPN (and N-Port ID).

Answer: BC

NEW QUESTION 12
Which two items represent data center virtualization technologies? (Choose two.)

• A. ECMP
• B. GLBP
• C. LUN
• D. VSAN
• E. L2 firewall

Answer: CD

NEW QUESTION 13
Which two options are valid methods for configuring VLANs on a Cisco UCS cluster? (Choose two.)

• A. globally per Cisco UCS cluster
• B. by using Cisco UCS Fabric Interconnect
• C. by using vPC domain configuration
• D. by using VTP
• E. by using CFS

Answer: AB

Explanation: http://www.cisco.com/c/en/us/support/docs/servers-unified-computing/ucs-2104xp-fabric-extender/110517-vlan

NEW QUESTION 14
In which OTV transport mode must an AED router create multiple copies of each control plan packet?

• A. site-to-site
• B. unicast-only
• C. multicast
• D. anycast

Answer: B

Explanation: http://www.cisco.com/c/en/us/products/collateral/routers/asr-1000-series-aggregation-services-routers/guide-c07

NEW QUESTION 15
During a presentation about Fiber Channel logins when using cisco fabric interconnect switches in switch mode you discuss FLOGI and PLOGI process. Your customer ask you to define the PLOGI process which response do you provide?

• A. It is a process where two N_ports discover their mutual capabilities
• B. It is a process used to establish a session between two N_ports
• C. It is a process where N_ports obtains FCID
• D. Its process where an N_Port discovers the characteristic associated with a fabric

Answer: B

NEW QUESTION 16

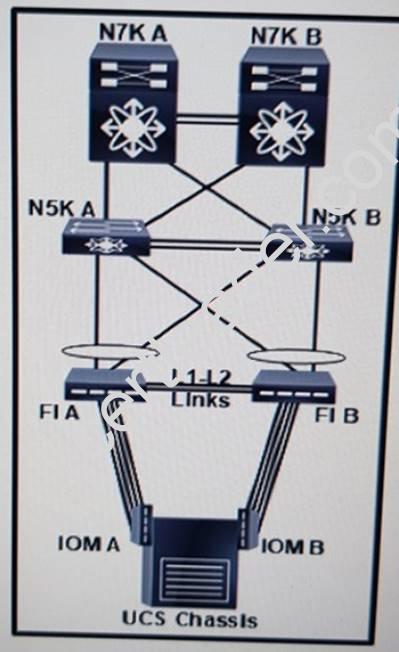

Refer to the exhibit.

Which two descriptions of the purpose of the L1-L2 links between FI A and FI B are true? (Choose two)

• A. synchronizes the configuration information
• B. provides a vPC peer link between the fabric interconnects.
• C. allows each fabric interconnect to monitor the status of the other fabric interconnect continuously.
• D. provides an alternate data path if an upstream link fails.
• E. migrates VIFs from FI A to FI B if FI fails.

Answer: AC

NEW QUESTION 17
The classical access layer has its limitations due to a high value in which of the following items?

• A. oversubscription
• B. jitter
• C. cost
• D. 10 Gigabit Ethernet links

Answer: A

NEW QUESTION 18
You must design a Cisco UCS Manager service profile for a customer. They require that the Cisco UCS blades utilize Cisco Discovery Protocol. Which policy must you add to the service profile template to meet this requirement?

• A. network control policies
• B. link protocol policies
• C. LAN connectivity policies
• D. flow control policies

Answer: A

NEW QUESTION 19
Which technology provides additional scalability and simplification of an Ethernet network, providing more efficient forwarding and eliminating the need for the STP?

• A. OTV
• B. vPC
• C. PVST+
• D. FabricPath

Answer: D
