300-415 Exam - Implementing Cisco SD-WAN Solutions (ENSDWI)

NEW QUESTION 1
A voice packet requires a latency of 50 msec. Which policy is configured to ensure that a voice packet is always sent on the link with less than a 50 msec delay?

• A. localized data
• B. centralized control
• C. localized control
• D. centralized data

Answer: A

NEW QUESTION 2
Refer to the exhibit. What does the BFD value of 8 represent?

• A. dead timer of BFD session
• B. poll-interval of BFD session
• C. hello timer of BFD session
• D. number of BFD sessions

Answer: D

NEW QUESTION 3
Which API call retrieves a list of all devices in the network?

• A. https://vmanage_IP_address/dataservice/system/device/{{model}}
• B. http://vmanage_IP_address/dataservice/system/device/{{model}}
• C. http://vmanage_IP_address/api-call/system/device/{{model}}
• D. https://vmanage_IP_address/api-call/system/device/{{model}}

Answer: A

NEW QUESTION 4
When redistribution is configured between OMP and BGP at two Data Center sites that have Direct Connection Interlink, which step avoids learning the same routes on WAN Edge routers of the DCs from LAN?

• A. Set down-bit on Edge routers on DC1
• B. Define different VRFs on both DCs
• C. Set OMP admin distance lower than BGP admin distance
• D. Set same overlay AS on both DC WAN Edge routers

Answer: BD

NEW QUESTION 5
Which command verifies a policy that has been pushed to the vEdge router?

• A. vSmart# show running-config policy
• B. vEdge# show running-config data policy
• C. vSmart# show running-config apply policy
• D. vEdge# show policy from-vsmart

Answer: D

NEW QUESTION 6
Which configuration changes the packet loss priority from low to high?

• A.
• B.
• C.
• D.

Answer: B

NEW QUESTION 7
Which pathway under Monitor > Network > Select Device is used to verify service insertion configuration?

• A. System Status
• B. Troubleshooting
• C. Real Time
• D. Events

Answer: B

NEW QUESTION 8
An engineer is troubleshooting a vEdge router and identifies a “DCONFAIL – DTLS connection failure” message. What is the problem?

• A. memory issue
• B. certificate mismatch
• C. organization mismatch
• D. connectivity issue

Answer: D

NEW QUESTION 9
Which attributes are configured to uniquely identify and represent a TLOC route?

• A. system IP address, link color, and encapsulation
• B. origin, originator, and preference
• C. site ID, tag, and VPN
• D. firewall, IPS, and application optimization

Answer: A

NEW QUESTION 10
Which alarm setting is configured to monitor serious events that affect, but do not shut down, the operation of a network function?

• A. Critical
• B. Medium
• C. Major
• D. Minor

Answer: C

NEW QUESTION 11
In which VPN is the NAT operation on an outgoing interface configured for direct Internet access?

• A. 512
• B. 10
• C. 1

Answer: A

NEW QUESTION 12
Which command disables the logging of syslog messages to the local disk?

• A. no system logging disk local
• B. system logging server remote
• C. no system logging disk enable
• D. system logging disk disable

Answer: C

NEW QUESTION 13
Refer to the exhibit. Which configuration change is needed to configure the tloc-extention on Branch1-Edge1? A.

• A.
• B.
• C.
• D.

Answer: D

NEW QUESTION 14
Which scheduling method is configured by default for the eight queues in the cloud vEdge router?

• A. weighted round robin
• B. priority queue
• C. low latency queue
• D. weighted random early detection

Answer: A

NEW QUESTION 15
On which device is a service FW address configured to insert firewall service at the hub?

• A. vSmart at the branch
• B. vEdge at the branch
• C. vEdge at the hub
• D. vSmart at the hub

Answer: C

NEW QUESTION 16
Which Cisco SD-WAN WAN Edge platform supports LTE and Wi-Fi?

• A. ISR 1101
• B. ASR 1001
• C. CSR 1000v
• D. vEdge 2000

Answer: A

NEW QUESTION 17
When VPNs are grouped to create destination zone, how many zones can a VPN be part of?

• A. two
• B. four
• C. one
• D. three

Answer: C

NEW QUESTION 18
Which platforms are managed by a single vManage dashboard?

• A. ISR4351, ASR1002HX, vEdge2000, vEdge Cloud
• B. ISR4321, ASR1001, Nexus, ENCS
• C. ISR4321, ASR1001, ENCS, ISRv
• D. ISR4351, ASR1009, vEdge2000, CSR1000v

Answer: C

NEW QUESTION 19
Which configuration step is taken on vManage after WAN Edge list is uploaded to support the on-boarding process before the device comes online?

• A. Verify the device certificate
• B. Enable the ZTP process
• C. Set the device as valid
• D. Send the list to controllers

Answer: C

NEW QUESTION 20

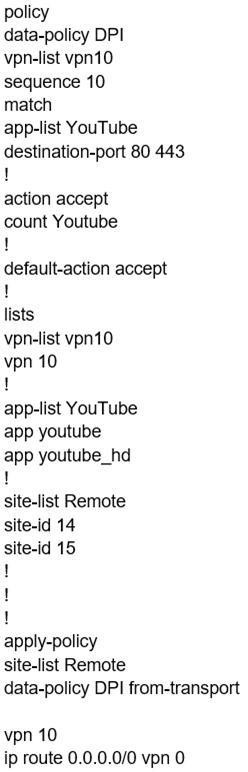

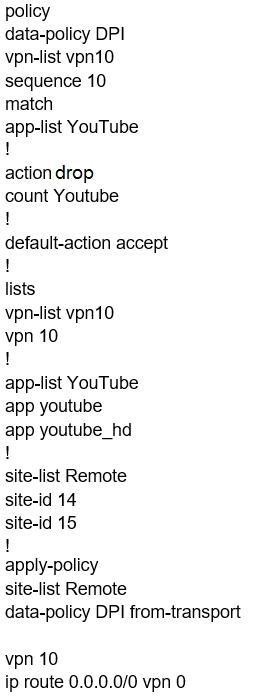

Which configuration allows users to reach YouTube from a local Internet breakout?

• A. B.
• B.

Answer: C
