300-625 Exam - Implementing Cisco Storage Area Networking (DCSAN)

NEW QUESTION 1
Two stable fabrics have overlapping domains. After a switch from the first domain is joined to a switch from the second domain, both switches become isolated. What caused the problem?

• A. The autoreconfigure option is disabled on both switches.
• B. The autoreconfigure option is enabled on both switches.
• C. The rcf-reject option is enabled on the interfaces.
• D. The rcf-reject option is disabled on the interfaces.

Answer: A

NEW QUESTION 2
Which result occurs when a VSAN is deleted that contains non-trunking ports?

• A. The ports are moved to VSAN 4094.
• B. The ports are moved to VSAN 1.
• C. The ports are removed from the configuration.
• D. The port configurations are cleared.

Answer: A

NEW QUESTION 3
Which configuration is available only in Cisco DCNM-SAN Advanced mode?

• A. IVR
• B. VMpath configuration
• C. zoning
• D. template-based provisioning

Answer: A

NEW QUESTION 4
DRAG DROP
Drag and drop the DCNM configuration tasks from the left onto the correct tools on the right.
Select and Place:

• A. Mastered
• B. Not Mastered

Answer: A

NEW QUESTION 5
Which two components are required for successful MDS USB POAP (Choose two.)

• A. NTFS formatted USB drive
• B. USB drive in port 1
• C. script named poap_script pl
• D. ENTERPRISE_PKG license
• E. system and kickstart images

Answer: CE

NEW QUESTION 6

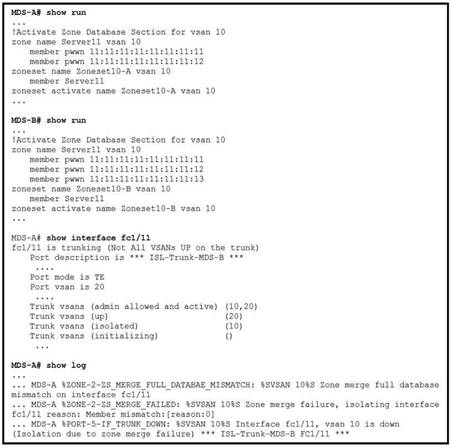

Refer to the exhibit.

A storage network engineer gets remote access to two Cisco MDS 9000 Series Switches with an ISL trunk and receives several log messages. Which set of actions resolve the problem while least affecting service?

• A. 1. Add :11:11:11:11:11:11:11:13 pwwn in zone Server11 and activate Zoneset10-A on MDS-A.2. shut/no shut interface fc1/11 on MDS-A.
• B. 1. Deactivate zone set Zoneset10-A on MDS-A.2. shut/no shut interface fc1/11 on MDS-A.
• C. 1. Add :11:11:11:11:11:11:11:13 pwwn in zone Server11 and activate Zoneset10-A on MDS-A.2. Remove VSAN 10 from the allowed VSAN range of interface fc1/11 on MDS-A and add it back in the range.
• D. 1. Explicitly import zone set Zoneset10-A on MDS-B using the zoneset import interface import fc1/11 vsan 10 command.2. Activate the zone set Zoneset10-A.

Answer: A

NEW QUESTION 7

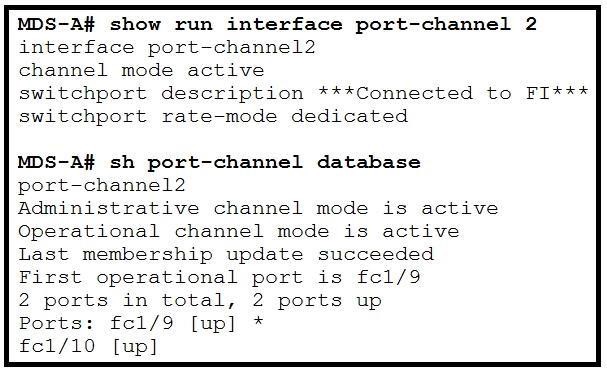

Refer to the exhibit.

A port channel has been configured between a Cisco MDS and a Cisco Fabric Interconnect switch. Which interface(s) in the port channel carry the control plane traffic?

• A. per packet, balanced between interfaces fc1/9 and fc1/10
• B. from interface fc1/9
• C. from interface fc1/10
• D. per flow, balanced between interfaces fc1/9 and fc1/10

Answer: D

NEW QUESTION 8
A domain ID conflict is detected on a switch. Which action resolves the issue in the shortest possible time after the preferred domain ID is changed to a static domain ID?

• A. Issue an fcdomain disruptive restart.
• B. Issue an fcdomain nondisruptive restart.
• C. Enter the commands for a VSAN suspend / no-suspend.
• D. Enter the commands to complete a domain manager fast restart.

Answer: A

NEW QUESTION 9

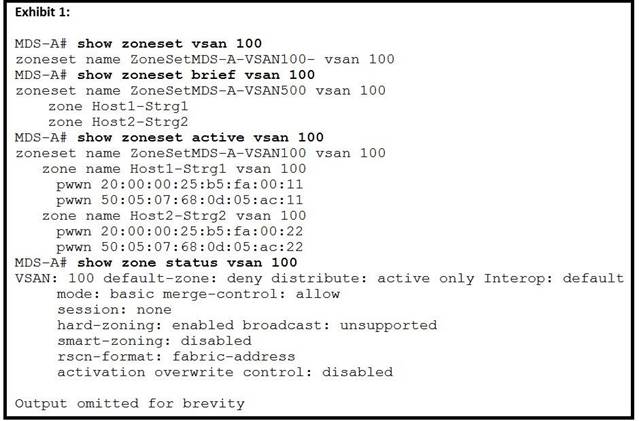

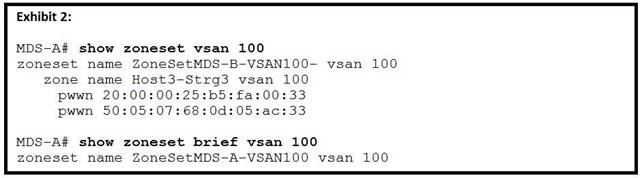

Refer to the exhibits.


A storage network engineer activates a zoneset on MDS-A and verifies the successful activation (Exhibit 1). The engineer is then notified that there is a SAN outage (Exhibit 2) What is the cause of the outage?

• A. Another network engineer activated zoneset ZoneSetMDS-B-VSAN100 on MDS-A.
• B. Another network engineer issued the zone mode enhanced vsan 100 command on another switch in the fabric.
• C. Another network engineer activated the zoneset ZoneSetMDS-B-VSAN100 command on another switch in the fabric.
• D. Another network engineer issued the zone default-zone permit vsan 100 command on another switch in the fabric.

Answer: D

NEW QUESTION 10
A storage network engineer must configure a 48-port Cisco MDS switch to reject any login requests to VSAN 10 from unauthorized Fibre Channel devices and switches. All the devices that were already logged in to the switch from this VSAN must be allowed without any manual configuration. Which configuration must be applied?

• A. switch(config)# feature port-security switch(config)# port- security activate vsan 10
• B. switch(config)# feature port- security switch(config)# port-security activate vsan 10 no auto- learn
• C. switch(config)# feature port-security switch(config)# port-security database vsan 10 switch(config-port-security)# any-wwn interface fc1/1 – fc1/48
• D. switch(config)# port-security activate vsan 10

Answer: D

NEW QUESTION 11
A storage administrator is connecting two previously configured switches to make a single fabric. When the E Ports are connected, the administrator sees a ZONE MERGE FAILURE message referring to the zoneset for VSAN 10 on each switch. Which command should the administrator use to allow these switches to work together?

• A. zoneset import interface fc1/1 vsan 10
• B. zoneset distribute full vsan 10
• C. zoneset overwrite-control vsan 10
• D. zoneset copy active-zoneset full-zoneset

Answer: A

NEW QUESTION 12
Which feature on MDS platforms ensures that the code that is running on the hardware platform is authentic and unmodified, while also validating the BIOS to eliminate any rootkits.

• A. Cisco Secure Boot
• B. UEFI Secure Boot
• C. Secure Unique Device Identifier
• D. BIOS Secure Boot

Answer: A

NEW QUESTION 13
Refer to the exhibit.

What is the result of the configuration?

• A. No-drop CoS values are advertised by the DCBX.
• B. LFC is prioritized over PFC on Ethernet 1/10.
• C. PFC operates on Ethernet 1/10 regardless of the capability of the peer.
• D. PFC fails to operate properly unless LFC is disabled on Ethernet 1/10.

Answer: A

NEW QUESTION 14
DRAG DROP
Drag and drop the items from the left onto the correct descriptions on the right. Not all items are used.
Select and Place:

• A. Mastered
• B. Not Mastered

Answer: A

NEW QUESTION 15
What is the function of the 0xFFFFFC address in a Fibre Channel fabric?

• A. management server
• B. fabric controller
• C. name server
• D. time server

Answer: C

NEW QUESTION 16
A storage network engineer is implementing a port channel for multiple FCIP interfaces with write acceleration in a client’s storage network. Which channel mode must be used?

• A. on
• B. passive
• C. active
• D. force

Answer: C

NEW QUESTION 17
What does an unlicensed DCNM SAN fail to display?

• A. Fibre Channel, FCoE, and iSCSI topologies
• B. events and fault management
• C. historical performance monitoring
• D. real-time performance monitoring

Answer: C

NEW QUESTION 18
A Cisco MDS Series Switch with the POAP feature boots and does not find the startup configuration. Which location is checked first when the switch enters POAP mode?

• A. USB device that contains the software image files and the switch configuration file
• B. DHCP server to bootstrap the interface IP address, gateway, DNS server, and TFTP IP addresses
• C. TFTP server where the necessary configuration files are downloaded
• D. HTTP server where the URL is used to download the software image

Answer: A

NEW QUESTION 19
Which action must be performed to deactivate a VSAN without losing its configuration?

• A. Isolate it.
• B. Delete it.
• C. Rename it.
• D. Suspend it.

Answer: D

NEW QUESTION 20
Which configuration is needed to enable manual ESP mode for Fibre Channel TrustSec on Cisco MDS switches?

• A. MDS(config)# interface fc 1/1MDS(config-if)# fcsp esp manual
• B. MDS(config)# fcsp esp manual
• C. MDS(config)# interface fc 1/1 MDS(config-if)# fcsp mode gcm MDS(config-if-fcsp)# fcsp esp manual
• D. MDS(config)# interface fc 1/1 MDS(config-if)# fcsp esp manual MDS(config-if-fcsp)# mode gcm

Answer: A

NEW QUESTION 21
DRAG DROP
Drag and drop the FLOGI parameters from the left onto the descriptions from which they were-derived on the right.
Select and Place:

• A. Mastered
• B. Not Mastered

Answer: A

NEW QUESTION 22
An engineer is configuring a SAN environment and attempts to activate a zoneset, but a lock is held by another user. Which argument does the engineer use to clear the lock from the zoning database configuration?

• A. commit
• B. abort
• C. clear
• D. force

Answer: C

NEW QUESTION 23
Which configuration is always required when running the setup utility on a Cisco MDS 9000 Series Switch?

• A. administrator password
• B. management IP address
• C. active NTP server
• D. active default gateway

Answer: A
