300-810 Exam - Implementing Cisco Collaboration Applications (CLICA)

NEW QUESTION 1

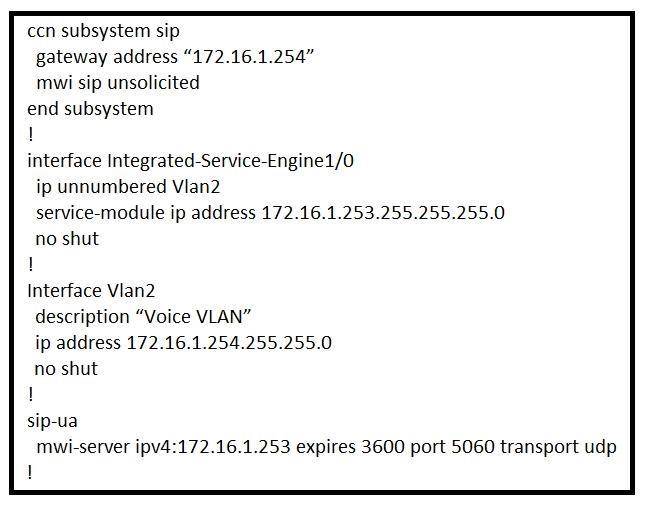

Refer to the exhibit.

A collaboration engineer has integrated Cisco Unity Express with Cisco Unified Communications Manager Express and is experimenting with the MWI feature. With the current configuration, no MWI change occurs when leaving new messages or after playing new messages. Which two changes are needed to correct the configuration? (Choose two.)

• A. ccn subsystem sip mwi sip outcall
• B. ccn subsystem sip mwi envelop-info
• C. sip-ua no mwi- servermwi-server ipv4:172.16.1.254 expires 3600 port 5060 transport udp
• D. ccn subsystem sip mwi sub-notify
• E. sip-ua no mwi-servermwi-server ipv4:172.16.1.253 expires 3600 port 5060 transport tcp notify
• F. sip- ua no mwi-server mwi-server ipv4:172.16.1.253 expires 3600 port 5060 transport udp unsolicited

Answer: AF

NEW QUESTION 2
Which two child elements can be in an XMPP message stanza? (Choose two.)

• A. <server/>
• B. <error/>
• C. <client/>
• D. <body/>
• E. <subject/>

Answer: DE

NEW QUESTION 3
What prevents toll fraud on voicemail ports?

• A. IP address trusted list on the PSTN gateway
• B. CSS
• C. Block OffNet to OffNet Transfer service parameter
• D. FAC

Answer: B

Explanation:
Reference: https://www.cisco.com/c/en/us/support/docs/unified-communications/unity-connection/119337-technote-cuc-00.html

NEW QUESTION 4
Which Cisco Unified Communications Manager menu path is used to configure Cisco IM and Presence Server High Availability?

• A. System > LDAP > LDAP Directory
• B. System > Geolocation Configuration
• C. System > Presence Redundancy Groups
• D. System > Server

Answer: C

Explanation:
Reference: https://www.cisco.com/c/en/us/support/docs/unified-communications/unified-communications-manager-im-presence-service/200958-IM-and-Presence-Server-High-Availability.html#anc4

NEW QUESTION 5
Which two command line arguments can you specify when installing Cisco Jabber for windows? (Choose two.)

• A. CISCO_UDS_DOMAIN
• B. TFTP_ADDRESS
• C. VOICEMAIL_SERVER_ADDRESS
• D. SERVICES_DOMAIN
• E. TFTP

Answer: DE

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/jabber/11_0/CJAB_BK_D657A25F_00_deployment-installation-guide-jabber-110/CJAB_BK_D657A25F_00_deployment-installation-guide-jabber- 110_chapter_01100.html#JABW_RF_CE43EF4C_00

NEW QUESTION 6
Which statement describes a role of AXL communications in the BLF Plug-in Service of the Cisco Unified Attendant Console?

• A. The AXL communications allow registered attendants to log in to Cisco Unified Communications Manager and receive calls.
• B. The AXL communications enable Device Resolution Manager to resolve the device statuses of operator and system devices.
• C. The AXL communications is required after installation to verify that the specified CTI manager or managers and Cisco Unified Attendant Console versions match.
• D. The AXL communications is required after installation to verify that the specified CTI manager or managers and Cisco Unified CM versions.

Answer: D

Explanation:
Reference: https://www.cisco.com/c/dam/en/us/td/docs/voice_ip_comm/cucmac/cuaca/12_0_4/design_guides/CUACA_DG_120401.pdf

NEW QUESTION 7
Which statement about SIP federation between Cisco Unified Communications IM and Presence and Microsoft Skype for Business is true?

• A. Add the federated user as a contact in Jabber to view its presence status.
• B. The role of SIP Proxy service is to process the XMPP packet in from Jabber and convert it to SIP.
• C. TLS is optional.
• D. Use of directory URI as an IM addressing scheme is not supported.

Answer: A

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/im_presence/interdomain_federation/12_5_1/cup0_b_interdomain-federation-1251/cup0_b_interdomain-federation-1251_chapter_01000.html

NEW QUESTION 8
Which step is the first for web-based single sign-on login?

• A. Authenticate.
• B. Redirect to IdP to get authenticated.
• C. Present authentication assertion.
• D. Request access to protected service.

Answer: D

NEW QUESTION 9
Which authentication method allows a user to log in to an SSO-enabled Cisco Unified Communications application by utilizing a Microsoft Windows login, thereby not requiring any credentials to be entered?

• A. Smart Card
• B. OAuth
• C. form-based
• D. Kerberos

Answer: B

Explanation:
Reference: https://developer.cisco.com/docs/cisco-unified-communications-single-sign-on-tutorial/#!cisco-unified-communications-single-sign-on-tutorial/learning-more-about-sso

NEW QUESTION 10
Which two methods does Cisco Jabber use for contact searching in an on-premises deployment model? (Choose two.)

• A. HTTP
• B. XMPP
• C. UDS
• D. LDAP
• E. SIP

Answer: CD

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/srnd/collab11/collab11/presence.html

NEW QUESTION 11
An end user opened a ticket, stating that before logging in to Jabber for Windows, a warning is displayed that a server certificate has expired. Which two certificates must be verified on the Cisco Unified Communications Manager and IM&P deployment? (Choose two.)

• A. capf on Cisco Unified CM
• B. cup-xmpp on IM&P
• C. callmanager on Cisco Unified CM
• D. tomcat on Cisco Unified CM
• E. cup on IM&P

Answer: AB

NEW QUESTION 12
What is the primary mechanism in Cisco Unity Connection that is used for toll fraud prevention?

• A. restriction tables
• B. fraud tables
• C. transfer rules
• D. calling search spaces

Answer: A

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/connection/10x/security/guide/10xcucsecx/10xcucsec020.pdf

NEW QUESTION 13
What are two Cisco Jabber 12.6 on-premises deployment types that can be run on a Windows-enabled PC? (Choose two.)

• A. Contact Center Agent
• B. IM-only
• C. multicloud-based
• D. Full UC
• E. cloud-based

Answer: BD

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/jabber/12_6/cjab_b_on-prem-deployment-cisco-jabber_12-6.pdf

NEW QUESTION 14
Which type of SRV record provides the location of Cisco Expressway-E?

• A. _collab-edge._tls.example.com
• B. _cisco-uds._tcp.example.com
• C. _cuplogin._tcp.example.com
• D. _http._tcp.example.com

Answer: A

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/jabber/Windows/9_7/CJAB_BK_C606D8A9_00_cisco-jabber-dns-configuration-guide/CJAB_BK_C606D8A9_00_cisco-jabber-dns-configuration-guide_chapter_010.html

NEW QUESTION 15

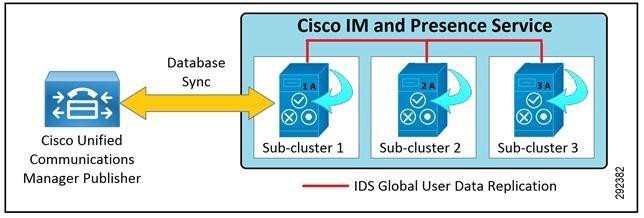

Refer to the exhibit.

Which statement is true?

• A. If the IM&P node in sub-cluster-1 goes down, then users assigned to it are randomly split between the two remaining subclusters.
• B. The administrator must add one node to each subcluster for high availability.
• C. IM&P nodes in each subscluster must be configured from the same OVA template.
• D. Each Cisco IM&P subcluster must have the same number of nodes.

Answer: B

NEW QUESTION 16
Which two Cisco Unity Connection logs are used to troubleshoot issues with Message Waiting Indicators? (Choose two.)

• A. Connection IMAP Server
• B. Connection Mailbox Sync
• C. Connection Notifier
• D. Connection Message Transfer Agent
• E. Connection Conversation Manager

Answer: DE

NEW QUESTION 17
Which Cisco Unified Connections Manager service is required for users to control their desk phones using Cisco Jabber?

• A. Cisco CTIManager
• B. Cisco CTL Provider
• C. Cisco Presence Engine
• D. Cisco Serviceability Reporter

Answer: A

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/jabber/11_5/CJAB_BK_D00D8CBD_00_deployment-installation-guide-cisco-jabber115/CJAB_BK_D00D8CBD_00_deployment-installation-guide- ciscojabber115_chapter_0111.html

NEW QUESTION 18
To redirect calls from the phone extension for user A to the voicemail greeting, which call routing rule should be used in Cisco Unity Connection?

• A. Attempt Forward forwarded routing rule
• B. Opening Greeting direct routing rule
• C. Attempt Sign-In direct routing rule
• D. Opening Greeting forwarded routing rule

Answer: A

Explanation:
Reference: https://community.cisco.com/t5/collaboration-voice-and-video/unity-connection-call-routing-logic/ta-p/3162560

NEW QUESTION 19

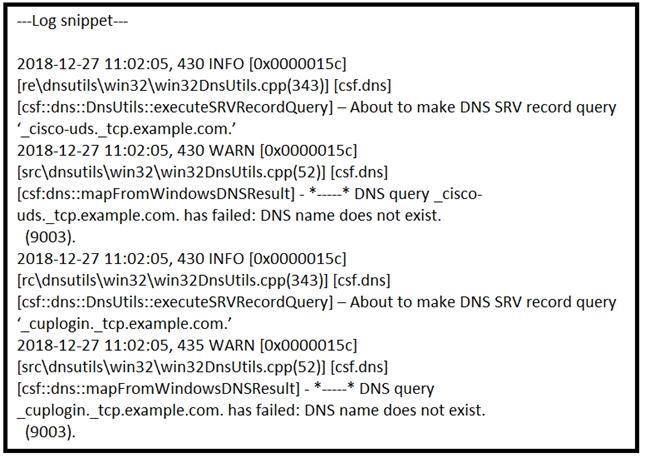

Refer to the exhibit.

Troubleshooting an internal Jabber login issue and you see this logging snippet from the Jabber PRT file. You already checked that the Jabber client has a connection to the correct DNS server. Which DNS record is missing for service discovery of Cisco Unified Communications Manager for the login process to proceed further?

• A. A record for the Cisco Unified Communications Manager
• B. SRV record _cisco-uds._tcp.example.com
• C. A record _cuplogin._tcp.example.com
• D. SRV record _cuplogin._tcp.example.com

Answer: D

NEW QUESTION 20

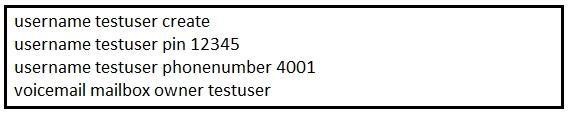

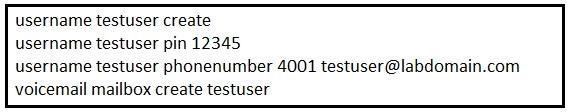

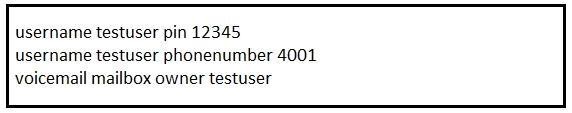

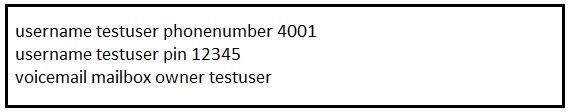

An engineer must configure a test user mailbox in a newly deployed Cisco Unity Express module. Which console command set reflects the correct configuration in this scenario?

• A.
• B.
• C.
• D.

Answer: A

NEW QUESTION 21
In the integration of Cisco Unity Connection using SIP, which SIP trunk security profile option is required for MWI to work correctly?

• A. Accept out-of-dialog refer
• B. Accept replaces header
• C. Accept unsolicited notification
• D. Accept presence subscription

Answer: A

NEW QUESTION 22

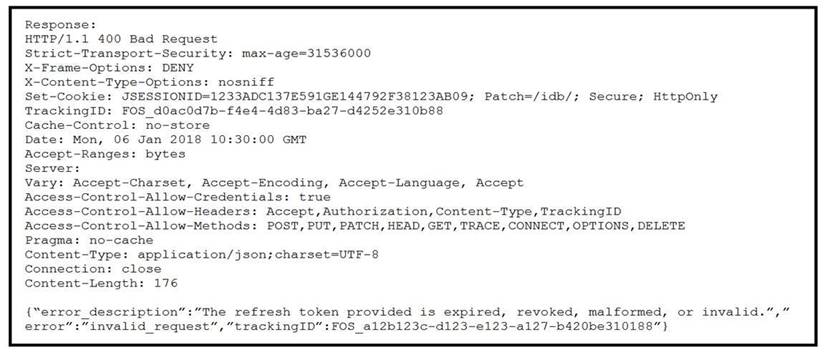

Refer to the exhibit.

Apple Push Notification integration is configured in a Cisco Unified IM and Presence deployment and has been working property. Administrators now report the error “Push notification settings cannot be configured. 400 Bad Request.” in the GUI, and HTTP logs are displaying the errors that are shown in the exhibit. Which action solves this issue?

• A. Fix the network connectivity to Apple iCloud.
• B. Reboot the IM&P cluster.
• C. Change the HTTP proxy settings to remove errors in request syntax.
• D. Update Refresh Token Manually.

Answer: D

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/push_notifications/cucm_b_push-notifications-deployment-guide.pdf

NEW QUESTION 23
How is automatic fallback enabled on a Cisco IM and Presence server?

• A. In IM and Presence Service Parameter Configuration > Cisco Server Recovery Manager, change the Failover parameter to True.
• B. In Communications Manager Service Parameter Configuration > Cisco Server Recovery Manager, change the Enable Automatic Fallback parameter to True.
• C. Automatic fallback is enabled by default.
• D. In the Presence Redundancy Group Configuration > Cisco Unified Communications Manager, check the Enable Automatic Fallback parameter.

Answer: B

Explanation:
Reference: https://www.cisco.com/c/en/us/support/docs/unified-communications/unified-communications-manager-im-presence-service/200958-IM-and-Presence-Server-High-Availability.html

NEW QUESTION 24
Which Cisco IM and Presence service must be activated and running for IM Presence to successfully integrate with Cisco Unified Communications Manager?

• A. Cisco DHCP Monitor Service
• B. Cisco AXL Web Service
• C. Self-Provisioning IVR
• D. Cisco XCP Authentication Service

Answer: A

NEW QUESTION 25
Digital networking is configured between two Cisco Unity Connection clusters using an HTTPS connection. Which two objects are replicated between these two clusters? (Choose two.)

• A. partitions and search spaces
• B. user greetings
• C. user templates and user greetings
• D. call handlers
• E. users and their corresponding mailboxes

Answer: AE

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/connection/10x/https_networking/guide/10xcuchttpsnetx/10xcuchttpsnet010.html
