Proper study guides for Updated Cisco Implementing and Operating Cisco Service Provider Network Core Technologies certified begins with Cisco 350-501 preparation products which designed to deliver the Certified 350-501 questions by making you pass the 350-501 test at your first time. Try the free 350-501 demo right now.
Online 350-501 free questions and answers of New Version:
NEW QUESTION 1

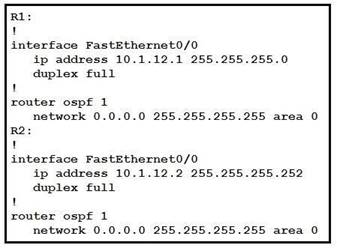

Refer to the exhibit. R1 and R2 are directly connected with Fast Ethernet interfaces and have the above configuration applied OSPF adjacency is not formed. When the debug ip ospf hello command is issued on R1, these log messages are seen:
Which command can be configured on routers R1 and R2 on f0/0 interfaces to form OSPF adjacency?
- A. ip ospf network point-to-multipoint non-broadcast
- B. ip ospf network non-broadcast
- C. ip ospf network broadcast
- D. ip ospf network point-to-point
Answer: D
NEW QUESTION 2
Refer to the exhibit. Which statement about the neighbor statements for 192.168.1.1 is true?
- A. The router sends BGP labels for its prefixes to this peer.
- B. The router must have TDP configured for the send-label command to operate.
- C. The neighbor router receives at least four labels from this router.
- D. The router sends only a label for the prefix for Loopback0.
Answer: A
NEW QUESTION 3
Refer to the exhibit. R1 is connected to two service providers and is under a DDoS attack.
Which statement about this design is true if URPF in strict mode is configured on both interfaces?
- A. R1 drops all traffic that ingresses either interface that has a FIB entry that exits a different interface.
- B. R1 drops destination addresses that are routed to a null interface on the router.
- C. R1 permits asymmetric routing as long as the AS-PATH attribute entry matches the connected AS.
- D. R1 accepts source addresses on interface gigabitethernet0/1 that are private addresses.
Answer: A
NEW QUESTION 4

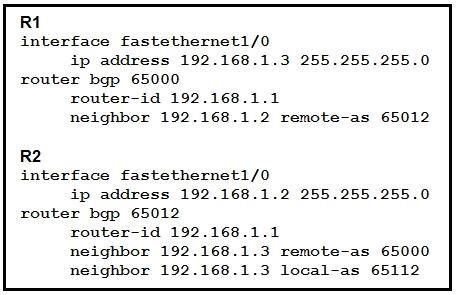

Refer to the exhibit. Assume all other configurations are correct and the network is otherwise operating normally. Which conclusion can you draw about the neighbor relationship between routers R1 and R2?
- A. The neighbor relationship is up.
- B. The neighbor relationship will be up only if the two devices have activated the correct neighbor relationships under the IPv4 address family.
- C. The neighbor is down because the local-as value for R2 is missing in the R1 neighbor statement.
- D. The neighbor relationship is down because R1 believes R2 is in AS 65012.
Answer: D
NEW QUESTION 5
Which component is similar to an EVPN instance?
- A. router distinguisher
- B. MPLS label
- C. IGP router ID
- D. VRF
Answer: D
NEW QUESTION 6
Why do packet loops occur during the configuration of BIDIR-PIM?
- A. The network does not support BIDIR-PIM.
- B. The network is partially upgraded to support BIDIR-PIM.
- C. The router has not been configured to advertise itself.
- D. No interface for carrying traffic for multicast groups has been configured.
Answer: B
NEW QUESTION 7
Which task must be performed first to implement BFD in an IS-IS environment?
- A. Configure BFD in an interface configuration mode.
- B. Disable Cisco Express Forwarding on all interfaces running routing protocols other than IS-IS.
- C. Configure all IS-IS routers as Level 2 devices.
- D. Configure BFD under the IS-IS process.
Answer: D
NEW QUESTION 8

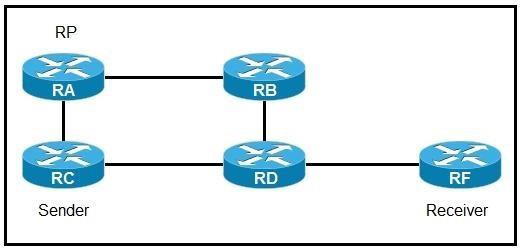

Refer to the exhibit. If router A is the RP, which PIM mode can you configure so that devices will send multicast traffic toward the RP?
- A. PIM-SM
- B. BIDIR-PIM
- C. PIM-SSM
- D. PIM-DM
Answer: A
NEW QUESTION 9

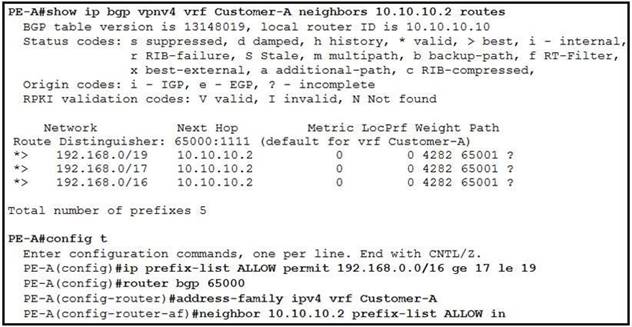

Refer to the exhibit. Which three outcomes occur if the prefix list is added to the neighbor? (Choose three.)
- A. 192.168.0.0/16 is denied.
- B. 192.168.0.0/16 is permitted.
- C. 192.168.0.0/19 is permitted
- D. 192.168.0.0/19 is denied.
- E. 192.168.0.0/17 is permitted
- F. 192.168.0.0/17 is denied.
Answer: ACF
NEW QUESTION 10
Refer to the exhibit. A network engineer is implementing QoS services. Which two statements about the qos-group keyword on Cisco IOS XR are true? (Choose two.)
- A. It marks packets for end-to-end QoS policy enforcement across the network.
- B. QoS group marking occurs on the ingress.
- C. The QoS group numbering corresponds to priority level.
- D. QoS group can be used in fabric QoS policy as match criteria.
- E. It cannot be used with priority traffic class.
Answer: BD
NEW QUESTION 11
Which additional feature does MPLS DiffServ tunneling support?
- A. matching EXP and DSCP values
- B. PHB layer management
- C. using GRE tunnels to hide markings
- D. interaction between MPLS and IGP
Answer: B
NEW QUESTION 12
Refer to the exhibit. This output is included at the end of an output that was provided by a device using NETCONF. What does the code show?
- A. It shows that the full configuration is being modeled by YANG.
- B. It shows NETCONF uses remote procedure calls.
- C. It shows the hostname of the device as rpc-reply.
- D. It shows that the running configuration is blank.
Answer: B
NEW QUESTION 13

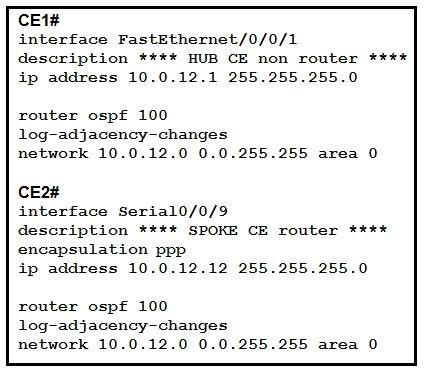

Refer to the exhibit. A network engineer is configuring customer edge routers to finalize a L2VPN over MPLS deployment. Assume that the AToM L2VPN service that connects the two CEs is configured correctly on the service provider network.
Which action causes the solution to fail?
- A. OSPF does not work with L2VPN services.
- B. The routing protocol network types are not compatible.
- C. A loopback with a /32 IP address has not been used.
- D. The xconnect statement has not been defined.
Answer: B
NEW QUESTION 14
Refer to the exhibit. In which way does router R1 operate differently than router R2?
- A. R1 sends LSA types 5 and 7, while R2 sends type 1, 2, and 7 LSAs.
- B. R1 sends LSA type 2 only, while R2 sends type 1 and type 7 LSAs.
- C. R1 sends LSA type 2 only and R2 sends LSA type 1 only.
- D. R1 sends LSA types 1 and 2, while R2 sends type 1,2, and 7 LSAs.
Answer: D
NEW QUESTION 15
Which three OSPF parameters must match before two devices can establish an OSPF adjacency? (Choose three.)
- A. IP address
- B. subnet mask
- C. interface cost
- D. process ID
- E. area number
- F. hello timer setting
Answer: BEF
NEW QUESTION 16
Refer to the exhibit. What does this value mean when it is received in XML?
- A. It indicates a value assigned by a network administrator to tag a route.
- B. It indicates a break in a sequence.
- C. It means a data field is blank.
- D. It shows the ending of the script.
Answer: D
NEW QUESTION 17
Refer to the exhibit. Based on the show command output, which result is true after BGP session is established?
- A. The IOS XR router advertises and accepts all routes to and from eBGP neighbor 192.168.2.2.
- B. The IOS XR router advertises all routes to the neighbor 192.168.2.2, but it does not accept any routes from 192.168.2.2.
- C. No routes are accepted from the neighbor 192.168.2.2, nor are any routes advertised to it.
- D. The IOS XR router does not advertises any routes to the neighbor 192.168.2.2, but it accepts any routes from 192.168.2.2.
Answer: C
NEW QUESTION 18

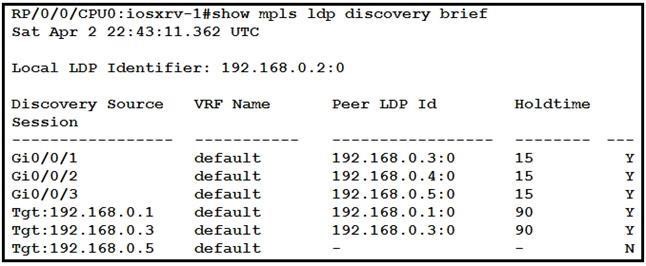

Refer to the exhibit. With which router does IOSXRV-1 have LDP session protection capability enabled but session hold up is not active?
- A. 192.168.0.4
- B. 192.168.0.5
- C. 192.168.0.1
- D. 192.168.0.3
Answer: B
NEW QUESTION 19
Which statement describes the advantage of a Multi-Layer control plane?
- A. It provides multivendor configuration capabilities for Layer 3 to Layer 1.
- B. It automatically provisions, monitors, and manages traffic across Layer 0 to Layer 3.
- C. It supports dynamic wavelength restoration in Layer 0.
- D. It minimizes human error configuring converged networks.
Answer: A
NEW QUESTION 20
Which service is a VNF role?
- A. Network
- B. Firewall
- C. Storage
- D. Compute
Answer: A
NEW QUESTION 21
Which configuration mode do you use to apply the mpls ldp graceful-restart command in IOS XE Software?
- A. MPLS LDP neighbor
- B. interface
- C. MPLS
- D. global
Answer: D
NEW QUESTION 22
Which statement about the Cisco MPLS TE forwarding adjacency feature is true?
- A. It enables the MPLS core to use EIGRP as the routing protocol.
- B. It enables the Cisco MPLS TE tunnel to be advertised into the running IGP.
- C. It enables the tailend router to advertise routes to the headend router over the tunnel.
- D. It enables the headend and tailend routers to establish a bidirectional tunnel.
Answer: B
NEW QUESTION 23
......
