350-601 Exam - Implementing and Operating Cisco Data Center Core Technologies

NEW QUESTION 1
A small remote office is set to connect to the regional hub site via NSSA ASBR.
Which type of LSA is sent to the remote office OSPF area?

• A. type 7 LSA
• B. type 1 LSA
• C. type 5 LSA
• D. type 3 LSA

Answer: A

NEW QUESTION 2

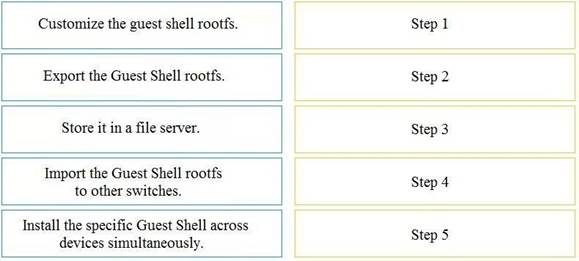

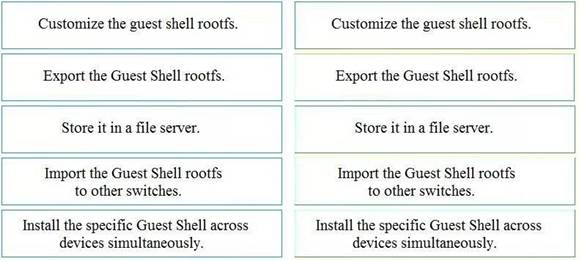

DRAG DROP
An engineer deploys a custom guest shell rootfs onto multiple switches. Drag and drop the steps from the left into the correct order on the right. Export the Guest Shell rootfs.
Select and Place:

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:

NEW QUESTION 3
When a strict CoPP policy is implemented, which statement describes an event during which packets are dropped?

• A. A large system image is copied to a switch by using the default VRF.
• B. Fifteen SSH sessions remain connected to the switch.
• C. A ping sweep is performed on a network that is connected through a switch.
• D. A web server that is connected to a switch is affected by a DDoS attack.

Answer: D

NEW QUESTION 4
Which two authentication types does Cisco UCS Manager support when configuring authentication? (Choose two.)

• A. PAM
• B. local
• C. 802.1X
• D. Kerberos
• E. LDAP

Answer: BE

NEW QUESTION 5
An engineer is asked to modify an overridden policy by changing the number of FCNS database entries to 1500 and then generate a message.
What Configuration will accomplish this task?

• A. event manager applet fcns_policyevent fcns entries max-per-switch 1500action 1.0 syslog priority warnings msg FCNS DB entries have reached the EEM limit action2.0 policy-default
• B. event manager applet fcns_policy override fcns_entries_max_per_switchaction 1.0 syslog priority errors "CNS DB entries have reached the EEM limit" action 2.0 policy-default
• C. event manager applet fcns_policy override fcns_entries_max_per_switchevent fcns entries max-per-switch 1500action 1.0 syslog priority warnings msg FCNS DB entries have reached the EEM limit
• D. event manager applet fcns_policy action 1.0 syslog priority warnings msg FCNS DB entries have reached the EEM limit action 2.0 event-default

Answer: C

NEW QUESTION 6
An engineer has a primary fabric that is named UCS-A and a secondary fabric that is named UCS-B. A certificate request that has a subject name of sjc2021 for a keyring that is named kr2021 needs to be created. The cluster IP address is 10.68.68.68.
Which command set creates this certificate request?

• A. UCS-A # scope keyring kr2021UCS-A /keyring # create certreq 10.68.68.68 sjc2021UCS-A /keyring* # commit-buffer
• B. UCS-B # scope keyring kr2021UCS-B /keyring # create certreq ip 10.68.68.68 subject-name sjc2021 UCS- B /keyring* # commit-both
• C. UCS-B# scope securityUCS-B /security # scope keyring kr2021UCS-B /security/keyring # set certreq 10.68.68.68 sjc2021UCS-B /security/keyring* # commit-both
• D. UCS-A# scope securityUCS-A /security # scope keyring kr2021UCS-A /security/keyring # create certreq ip 10.68.68.68 subject-name sjc2021 UCS- A /security/keyring* # commit-buffer

Answer: D

NEW QUESTION 7

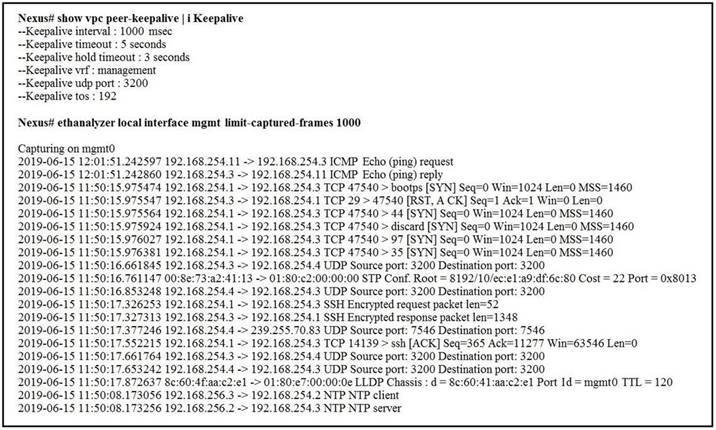

Refer to the exhibit.

A flapping link issue has been reported on the vPC keepalive link. A packet capture has been activated on the Cisco Nexus switch. What is the destination IP address of the vPC keepalive packets that are sent by the switch?

• A. 192.168.254.4
• B. 192.168.254.1
• C. 192.168.254.2
• D. 239.255.70.83

Answer: A

NEW QUESTION 8
A server engineer wants to control power usage on a Cisco UCS C-Series rack server down to the component level.
Which two components support specific power limits? (Choose two.)

• A. storage controller
• B. network controller
• C. processor
• D. graphic card
• E. memory

Answer: AB

NEW QUESTION 9
An engineer wants to create a backup of Cisco UCS Manager for disaster recovery purposes.
What are two characteristics of a full state backup of a Cisco UCS Manager database? (Choose two.)

• A. contains all of the runtime states and statuses but not the configurations
• B. performs a complete binary dump of the database as a .bin file
• C. performs a complete binary dump of the database as a .sql file
• D. performs a complete binary dump of the database as a .txz file
• E. contains all of the configurations

Answer: BE

NEW QUESTION 10
A host in EPG Client wants to talk to a webserver in EPG Web. A contract with default settings is defined between EPG Client and EPG Web, which allows TCP communication initiated by the client toward the webserver with TCP destination port 80.
Which statement is true?

• A. If EPG Web is made a preferred group member, a contract between EPG Client and EPG Web is no longer required for the host in EPG Client to reach the webserver in EPG Web.
• B. If vzAny is configured to consume and provide a "deny all" contract, traffic between EPG Client and EPG Web is no longer allowed.
• C. The host in EPG Client can connect to TCP destination port 80 on the webserver in EPG We
• D. The webserver will not be able to initiate a separate TCP connection to a host port with TCP source port 80.
• E. The host in EPG Client can connect to TCP destination port 80 on the webserver in EPG We
• F. The webserver can initiate a separate TCP connection to a host port with TCP source port 80.

Answer: D

NEW QUESTION 11
Which virtual MAC address is the default for HSRP version 2 group 10?

• A. 0000.5E00.0110
• B. 0000.0C9F.F00A
• C. 3716.1350.1C0A
• D. 0000.0C9F.F010

Answer: B

NEW QUESTION 12
What is required for using Puppet in a Cisco NX-OS environment?

• A. OpenNP
• B. XML management interface
• C. NX-API
• D. Open Agent Container

Answer: D

NEW QUESTION 13
An engineer is implementing FCoE.
Which aspect of DCBXP on a Cisco Nexus switch affects this implementation?

• A. It requires that LLDP transmit and LLDP receive are enabled on the FCoE interface.
• B. It uses the Cisco Fabric Services protocol to exchange parameters between two peer links.
• C. It provides the authentication of peers on the Cisco Nexus switch.
• D. It always is enabled on 10/100-Mbps native Ethernet ports.

Answer: A

NEW QUESTION 14
In an FCoE environment, for which two sets of data must an interface that implements the PAUSE mechanism always provision sufficient ingress buffer? (Choose two.)

• A. frames that were sent with high credit
• B. frames that were sent on the link but not yet received
• C. frames that were processed and transmitted by the transmitter after the PAUSE frame left the sender
• D. frames that were processed and transmitted by the transmitter before the PAUSE frame left the sender
• E. frames that were sent on the link and received

Answer: BD

NEW QUESTION 15
What happens to the default host firmware policy after a Cisco UCS Manager upgrade?

• A. It is assigned to all the service profiles that include a host firmware policy.
• B. It is replaced by a new default policy without any firmware entries.
• C. It is set to match the host firmware policy.
• D. It is updated to contain the firmware entries of all the components.

Answer: A

NEW QUESTION 16
Which configuration generates a syslog message when CPU utilization is higher than 60%?

• A. event manager applet HIGH-CPU event snmp oid 1.3.6.1.4.1.9.9.109.1.1.1.1.6.1 get-type exact entry-op gt 60 poll-interval 5 action 1.0 syslog priority notifications msg "cpu high"
• B. event manager applet HIGH-CPU event snmp oid 1.3.6.1.4.1.9.9.109.1.1.1.1.6.1 get-type exact entry-op lt 60 poll-interval 5 action 1.0 syslog priority notifications msg "cpu high"
• C. event manager applet HIGH-CPU event snmp oid 1.3.6.1.4.1.9.9.109.1.1.1.1.6.1 get-type next entry-op gt 60 poll-interval 5 action 1.0 syslog priority notifications msg "cpu high"
• D. event manager applet HIGH-CPU event snmp oid 1.3.6.1.4.1.9.9.109.1.1.1.1.6.1 get-type next entry-op lt 60 poll-interval 5 action 1.0 syslog priority notifications msg "cpu high"

Answer: A

NEW QUESTION 17
Which two statements about the process of performing an EPLD upgrade on a Cisco MDS 9000 Series Switch are true? (Choose two.)

• A. The upgrade can be performed from the standby supervisor module.
• B. The upgrade process disrupts only the module that is being upgraded.
• C. The active supervisor can be upgraded.
• D. If an upgrade is interrupted, the upgrade continues after a connection is restored.
• E. Modules must be online to be upgraded.

Answer: AB

NEW QUESTION 18
When the default firmware package is set to a new version, which type of policy determines the liming of server reboots during the firmware upgrade?

• A. diagnostics
• B. maintenance
• C. local disk
• D. BIOS

Answer: B

NEW QUESTION 19
The engineer must configure SPAN on a Cisco Nexus 5000 Series Switch to get a capture of the traffic from these applications for an in-depth packet analysis. Which two SPAN characteristics must be considered? (Choose two.)

• A. SPAN source ports can be monitored in multiple SPAN sessions.
• B. The Ethernet, FC, vFC, port channel, SAN port channel can be used as SPAN source ports.
• C. A SPAN source port cannot be a destination SPAN port.
• D. Only Ethernet, FC, vFC, port channel port types can be used as SPAN source ports.
• E. The rx/tx option is available for VLAN or VSAN SPAN sessions.

Answer: BC

NEW QUESTION 20

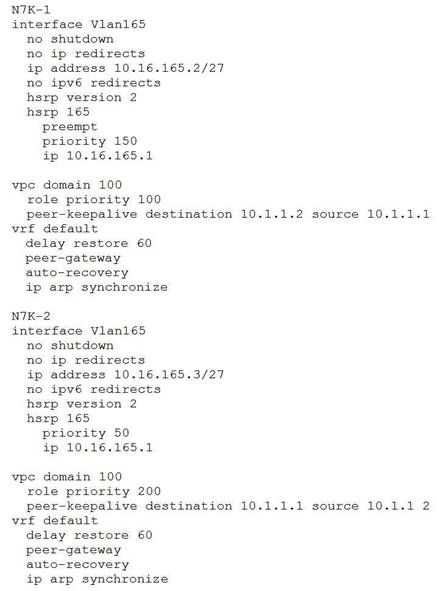

Refer to the exhibit.

Which statement about the default gateway configuration of the vPC is true?

• A. Either switch can act as the active default gateway.
• B. N7K-1 acts as the default gateway for all traffic.
• C. N7K-2 forwards traffic that is destined for the default gateway by using the peer link.
• D. N7K-2 acts as the default gateway for all traffic.

Answer: A
