NEW QUESTION 1
You have an Azure Logic App named App1. App1 provides a response when an HTTP POST request or an HTTP GET request is received.
During peak periods, App1 is expected to receive up to 200,000 requests in a five-minute period. You need to ensure that App1 can handle the expected load.
What should you configure?

• A. Access keys
• B. Access control (1AM)
• C. API connections
• D. Workflow settings

Answer: D

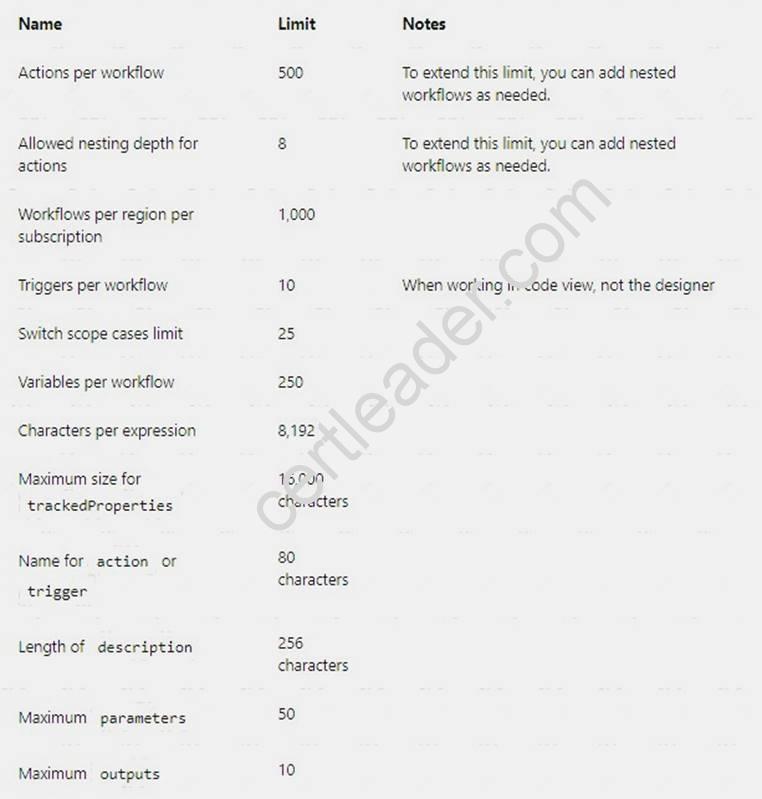

Explanation: Here are the limits for a single logic app definition:

References:
https://docs.microsoft.com/en-us/azure/logic-apps/logic-apps-limits-and-config

NEW QUESTION 2
HOT SPOT

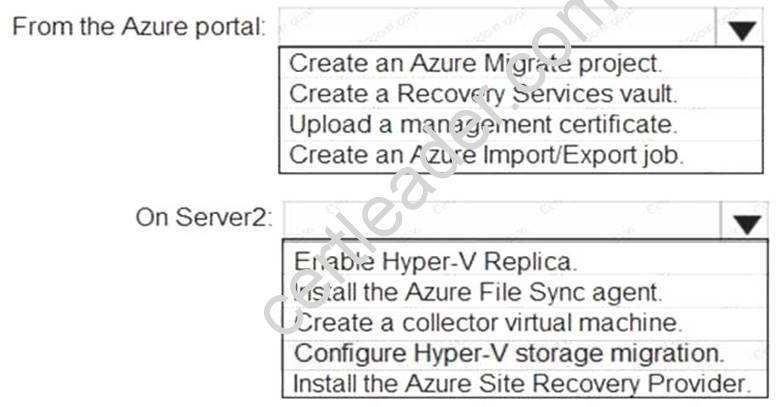

You need to prepare the environment to implement the planned changes for Server2. What should you do? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

Answer:

Explanation: Box 1: Create a Recovery Services vault
Create a Recovery Services vault on the Azure Portal. Box 2: Install the Azure Site Recovery Provider
Azure Site Recovery can be used to manage migration of on-premises machines to Azure. Scenario: Migrate the virtual machines hosted on Server1 and Server2 to Azure.
Server2 has the Hyper-V host role. References:
https://docs.microsoft.com/en-us/azure/site-recovery/migrate-tutorial-on-premises-azure

Case Study: 8
Mix Questions Set C (Evaluate and perform server migration to Azure)

NEW QUESTION 3
You have a public load balancer that balancer ports 80 and 443 across three virtual machines. You need to direct all the Remote Desktop protocol (RDP) to VM3 only.
What should you configure?

• A. an inbound NAT rule
• B. a load public balancing rule
• C. a new public load balancer for VM3
• D. a new IP configuration

Answer: A

Explanation: To port forward traffic to a specific port on specific VMs use an inbound network address translation (NAT) rule.
Incorrect Answers:
B: Load-balancing rule to distribute traffic that arrives at frontend to backend pool instances. References:
https://docs.microsoft.com/en-us/azure/load-balancer/load-balancer-overview

NEW QUESTION 4
You have an Azure subscription.
You enable multi-factor authentication for all users.
Some users report that the email applications on their mobile device cannot co browser and from Microsoft Outlook 2021 on their computer.
You need to ensure that the users can use the email applications on their mobile device. What should you instruct the users to do?
The users can access Exchange Online by using a web

• A. Enable self-service password reset.
• B. Create an app password.
• C. Reset the Azure Active Directory (Azure AD) password.
• D. Reinstall the Microsoft Authenticator app.

Answer: A

Explanation: References:
https://docs.microsoft.com/en-us/azure/active-directory/authentication/concept-sspr-howitworks

NEW QUESTION 5
DRAG DROP
You have an Azure subscription that is used by four departments in your company. The subscription contains 10 resource groups. Each department uses resources in several resource groups.
You need to send a report to the finance department. The report must detail the costs for each department. Which three actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.

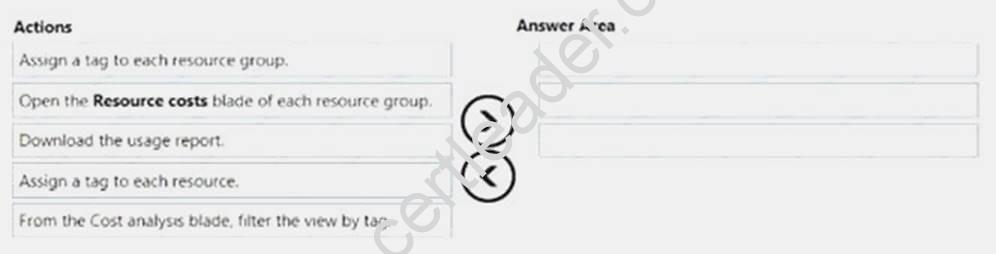

Answer:

Explanation: Box 1: Assign a tag to each resource.
You apply tags to your Azure resources giving metadata to logically organize them into a taxonomy. After you apply tags, you can retrieve all the resources in your subscription with that tag name and value. Each resource or resource group can have a maximum of 15 tag name/value pairs. Tags applied to the resource group are not inherited by the resources in that resource group.
Box 2: From the Cost analysis blade, filter the view by tag
After you get your services running, regularly check how much they're costing you. You can see the current spend and burn rate in Azure portal.
Visit the Subscriptions blade in Azure portal and select a subscription. You should see the cost breakdown and burn rate in the popup blade.
Click Cost analysis in the list to the left to see the cost breakdown by resource. Wait 24 hours after you add a service for the data to populate.
You can filter by different properties like tags, resource group, and timespan. Click Apply to confirm the filters and Download if you want to export the view to a Comma-Separated Values (.csv) file. Box 3: Download the usage report
References:
https://docs.microsoft.com/en-us/azure/azure-resource-manager/resource-group-using-tags https://docs.microsoft.com/en-us/azure/billing/billing-getting-started

NEW QUESTION 6
SIMULATION
Click to expand each objective. To connect to the Azure portal, type https://portal.azure.com in the browser address bar.






When you are finished performing all the tasks, click the ‘Next’ button.
Note that you cannot return to the lab once you click the ‘Next’ button. Scoring occur in the background while you complete the rest of the exam.
Overview
The following section of the exam is a lab. In this section, you will perform a set of tasks in a live environment. While most functionality will be available to you as it would be in a live environment, some functionality (e.g., copy and paste, ability to navigate to external websites) will not be possible by design. Scoring is based on the outcome of performing the tasks stated in the lab. In other words, it doesn’t matter how you accomplish the task, if you successfully perform it, you will earn credit for that task.
Labs are not timed separately, and this exam may have more than one lab that you must complete. You can use as much time as you would like to complete each lab. But, you should manage your time appropriately to ensure that you are able to complete the lab(s) and all other sections of the exam in the time provided.
Please note that once you submit your work by clicking the Next button within a lab, you will NOT be able to return to the lab.
To start the lab
You may start the lab by clicking the Next button.
You need to deploy an Azure virtual machine named VM1004a based on the Ubuntu Server 17.10 image, and then to configure VM1004a to meet the following requirements:
The virtual machine must contain data disks that can store at least 15 TB of data. The data disks must be able to provide at least 2,000 IOPS.
Storage costs must be minimized.
What should you do from the Azure portal?

Answer:

Explanation: 1. Open the Azure portal.
2. On the left menu, select All resources. You can sort the resources by Type to easily find your images.
3. Select the image you want to use from the list. The image Overview page opens.
4. Select Create VM from the menu.
5. Enter the virtual machine information.
Select VM1004a as the name for the first Virtual machine.
The user name and password entered here will be used to log in to the virtual machine. When complete, select OK. You can create the new VM in an existing resource group, or choose Create new to create a new resource group to store the VM.
6. Select a size for the VM. To see more sizes, select View all or change the Supported disk type filter. To support 15 TB of data you would need a Premium disk.
7. Under Settings, make changes as necessary and select OK.
8. On the summary page, you should see your image name listed as a Private image. Select Ok to start the virtual machine deployment.
References: https://docs.microsoft.com/en-us/azure/virtual-machines/windows/create-vmgeneralized- managed

NEW QUESTION 7
You have a Recovery Service vault that you use to test backups. The test backups contain two protected virtual machines.
You need to delete the Recovery Services vault. What should you do first?

• A. From the Recovery Service vault, stop the backup of each backup item.
• B. From the Recovery Service vault, delete the backup data.
• C. Modify the disaster recovery properties of each virtual machine.
• D. Modify the locks of each virtual machin

Answer: A

Explanation: You can't delete a Recovery Services vault if it is registered to a server and holds backup data. If youtry to delete a vault, but can't, the vault is still configured to receive backup data. Remove vault dependencies and delete vault

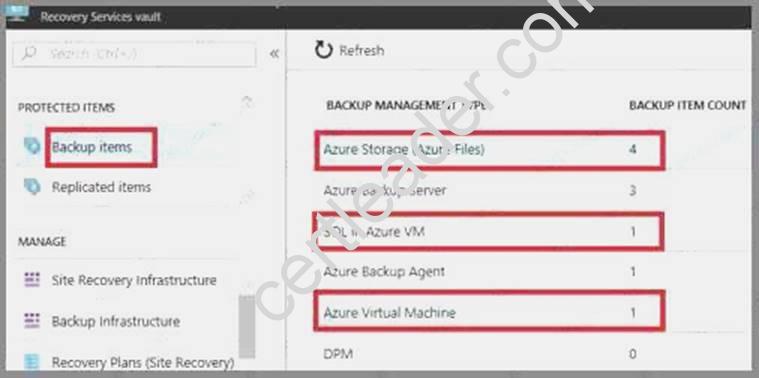

In the vault dashboard menu, scroll down to the Protected Items section, and click Backup Items. In this menu, you can stop and delete Azure File Servers, SQL Servers in Azure VM, and Azure virtual machines.

References: https://docs.microsoft.com/en-us/azure/backup/backup-azure-delete-vault

NEW QUESTION 8
You are building a custom Azure function app to connect to Azure Event Grid.
You need to ensure that resources are allocated dynamically to the function app. Billing must be based on the executions of the app.
What should you configure when you create the function app?

• A. the Windows operating system and the Consumption plan hosting plan
• B. the Windows operating system and the App Service plan hosting plan
• C. the Docker container and an App Service plan that uses the Bl1 pricing tier
• D. the Docker container and an App Service plan that uses the SI pricing

Answer: A

Explanation: Azure Functions runs in two different modes: Consumption plan and Azure App Service plan. The Consumption plan automatically allocates compute power when your code is running. Your app is scaled out when needed to handle load, and scaled down when code is not running.
Incorrect Answers:
B: When you run in an App Service plan, you must manage the scaling of your function app. References:
https://docs.microsoft.com/en-us/azure/azure-functions/functions-create-first-azure-function

NEW QUESTION 9
HOT SPOT
You have an Azure subscription named Subscription1. Subscription1 contains the virtual networks in the following table.

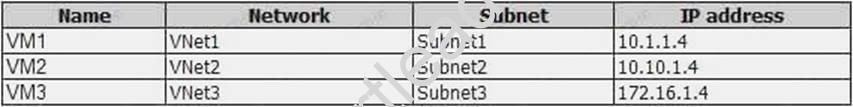

Subscription1 contains the virtual machines in the following table:

The firewalls on all the virtual machines are configured to allow all ICMP traffic. You add the peerings in the following table.

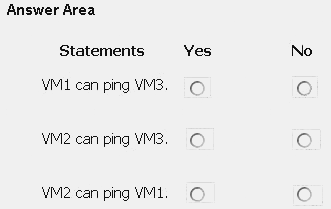

For each of the following statements, select Yest if the statement is true. Otherwise, select No. NOTE: Each correct selection is worth one point.

Answer:

Explanation: Box 1: Yes

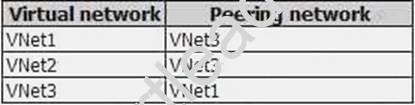

Vnet1 and Vnet3 are peers. Box 2: Yes
Vnet2 and Vnet3 are peers. Box 3: No
Peering connections are non-transitive.
References: https://docs.microsoft.com/en-us/azure/architecture/reference-architectures/hybridnetworking/ hub-spoke

NEW QUESTION 10
You have an Azure Service Bus.

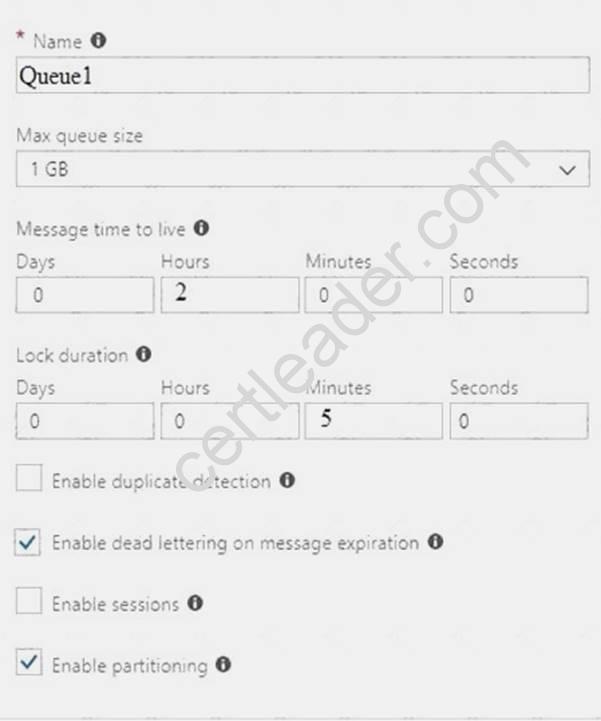

You create a queue named Queue1. Queue1 is configured as shown in the following exhibit.

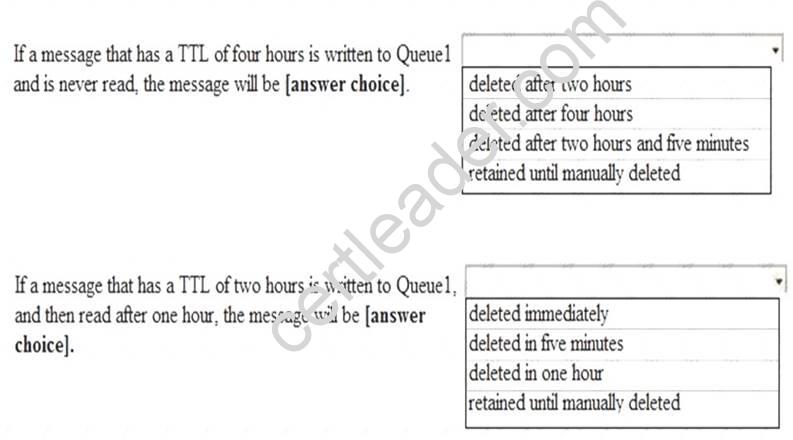

Use the drop-down menus to select the answer choice that completes each statement based on the information presented in the graphic.
NOTE: Each correct selection is worth one point.

Answer:

Explanation: Box 1: deleted after two hours
All messages sent into a queue or topic are subject to a default expiration that is set at the entity level with the defaultMessageTimeToLive property and which can also be set in the portal during creation and adjusted later. The default expiration is used for all messages sent to the entity where TimeToLive is not explicitly set. The default expiration also functions as a ceiling for the TimeToLive value. Messages that have a longer TimeToLive expiration than the default value are silently adjusted to the defaultMessageTimeToLive value before being enqueued.
Box 2: deleted in one hour References:
https://docs.microsoft.com/en-us/azure/service-bus-messaging/message-expiration

NEW QUESTION 11
You have an Azure subscription named Subscription1 and two Azure Active Directory (Azure AD) tenants named Tenant1 and Tenant2.
Subscnption1 is associated to Tenant1 Multi-factor authentication (MFA) is enabled for all the users in Tenant1.
You need to enable MFA for the users in Tenant2. The solution must maintain MFA forTenant1. What should you do first?

• A. Transfer the administration of Subscription1 to a global administrator of Tenants.
• B. Configure the MFA Server setting in Tenant1.
• C. Create and link a subscription to Tenant2.
• D. Change the directory for Subscription1.

Answer: C

Explanation: Case Study: 12
ADatum Corporation Overview
A Datum Corporation is a financial company that has two main offices in New York and Los Angeles. A Datum has a subsidiary named Fabrikam, Inc. that shares the Los Angeles office.
A Datum is conducting an initial deployment of Azure services to host new line-of-business applications and is preparing to migrate its existing on-premises workloads to Azure.
A Datum uses Microsoft Exchange Online for email. On-Premises Environment
The on-premises workloads run on virtual machines hosted in a VMware vSphere 6 infrastructure. All the virtual machines are members of an Active Directory forest named adatum.com and run Windows Server 2021.
The New York office an IP address of 10.0.0.0/16. The Los Angeles office uses an IP address space of 10.10.0.0/16.
The offices connect by using a VPN provided by an ISP. Each office has one Azure ExpressRoute circuit that provides access to Azure services and Microsoft Online Services. Routing is implemented by using Microsoft peering.
The New York office has a virtual machine named VM1 that has the vSphere console installed. Azure Environment

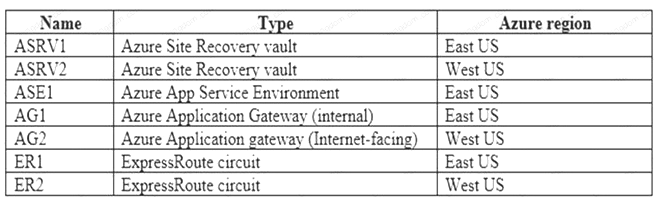

You provision the Azure infrastructure by using the Azure portal. The infrastructure contains the resources shown in the following table.

AG1 has two backend pools named Pool11 and Pool12. AG2 has two backend pools named Pool21 and Pool22.
Planned Changes
ADatum plans to migrate the virtual machines from the New York office to the East US Azure region by using Azure Site Recovery.
Infrastructure Requirements
ADatum identifies the following infrastructure requirements:
? A new web app named App1 that will access third-parties for credit card processing must be deployed.
? A newly developed API must be implemented as an Azure function named App2. App2 will use a blob storage trigger. App2 must process new blobs immediately.
? The Azure infrastructure and the on-premises infrastructure and the on-premises infrastructure must be prepared for the migration of the VMware virtual machines to Azure.
? The sizes of the Azure virtual machines that will be used to migrate the on-premises workloads must be identified.
? All migrated and newly deployed Azure virtual machines must be joined to the adatum.com domain.
? AG1 must load balance incoming traffic in the following manner:
1. http://corporate.adatum.com/video/* will be load balanced across Pool11.
2. http://corporate.adatum.com/images/* will be load balanced across Pool12.
? AG2 must load balance incoming traffic in the following manner:
1. http://www.adatum.com will be load balanced across Pool21.
2. http://www.fabrikam.com will be load balanced across Pool22.
? ER1 must route traffic between the New York office and the platform as a service (PaaS) services in the East US Azure region, as long as ER1 is available.
? ER2 must route traffic between the Los Angeles office and the PaaS sevices in the West US region, as long as ER2 is available.
? ER1 and ER2 must be configured to fail over automatically. Application Requirements
App2 must be able to connect directly to the private IP addresses of the Azure virtual machines. App2 will be deployed directly to an Azure virtual network.
Inbound and outbound communications to App1 must be controlled by using NSGs. Pricing Requirements
ADatum identifies the following pricing requirements:
? The cost of App1 and App2 must be minimized.
? The transactional charges of Azure Storage account must be minimized.

NEW QUESTION 12
Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.
After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.
You have an Azure subscription named Subscription1. Subscription1 contains a resource group named RG1. RG1 contains resources that were deployed by using templates.
You need to view the date and time when the resources were created in RG1. Solution: From the RG1 blade, you click Automation script.
Does this meet the goal?

• A. Yes
• B. No

Answer: B

NEW QUESTION 13
HOT SPOT
You have an Azure subscription named Subscription1.
In Subscription1, you create an Azure file share named share1.

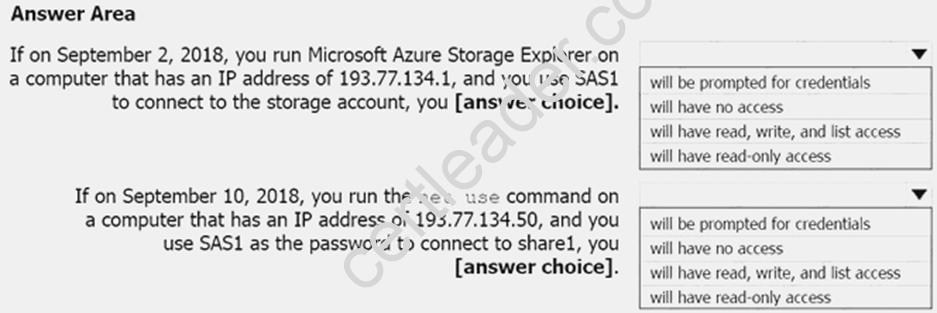

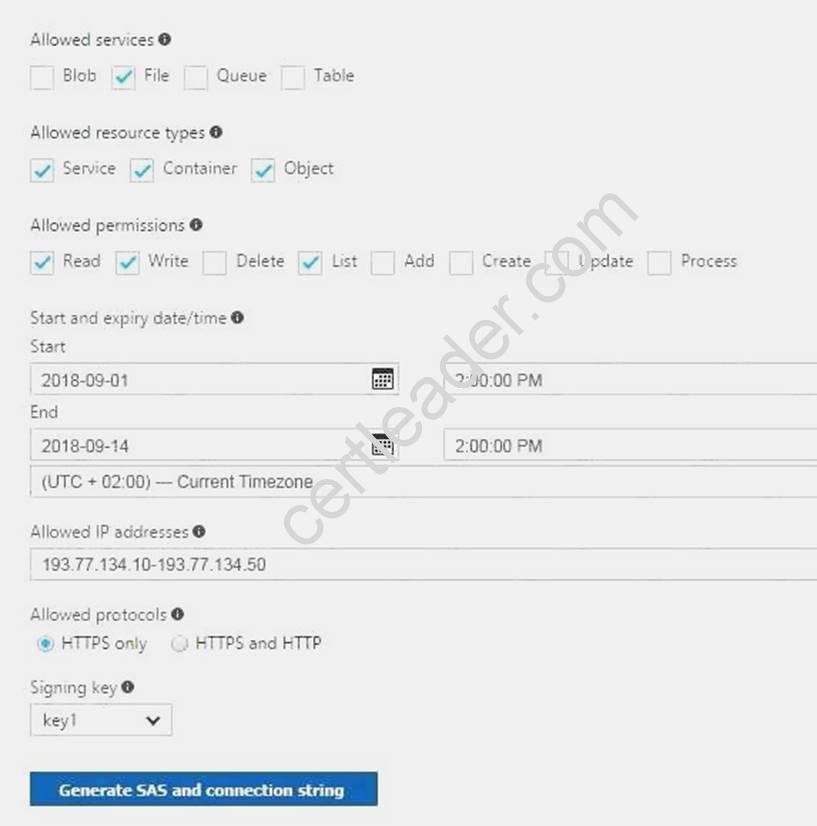

You create a shared access signature (SAS) named SAS1 as shown in the following exhibit.

To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

Answer:

Explanation: Box 1: Will be prompted for credentials
Azure Storage Explorer is a standalone app that enables you to easily work with Azure Storage data on Windows, macOS, and Linux. It is used for connecting to and managing your Azure storage accounts.
Box 2: Will have read, write, and list access
The net use command is used to connect to file shares. References:
https://docs.microsoft.com/en-us/azure/storage/common/storage-dotnet-shared-access-signaturepart- https://docs.microsoft.com/en-us/azure/vs-azure-tools-storage-manage-with-storageexplorer? tabs=windows

NEW QUESTION 14
You download an Azure Resource Manager template based on an existing virtual machine. The template will be used to deploy 100 virtual machines.
You need to modify the template to reference an administrative password. You must prevent the password from being stored in plain text.
What should you create to store the password?

• A. Azure Active Directory (AD) Identity Protection and an Azure policy
• B. a Recovery Services vault and a backup policy
• C. an Azure Key Vault and an access policy
• D. an Azure Storage account and an access policy

Answer: C

Explanation: You can use a template that allows you to deploy a simple Windows VM by retrieving the password that is stored in a Key Vault. Therefore the password is never put in plain text in the template parameter file.
References: https://azure.microsoft.com/en-us/resources/templates/101-vm-secure-password/

NEW QUESTION 15
You have an Azure Active Directory (Azure AD) tenant named contosocloud.onmicrosoft.com. Your company has a public DNS zone for contoso.com.
You add contoso.com as a custom domain name to Azure AD You need to ensure that Azure can verify the domain name. Which type of DNS record should you create?

• A. PTR
• B. MX
• C. NSEC3
• D. RRSIG

Answer: B

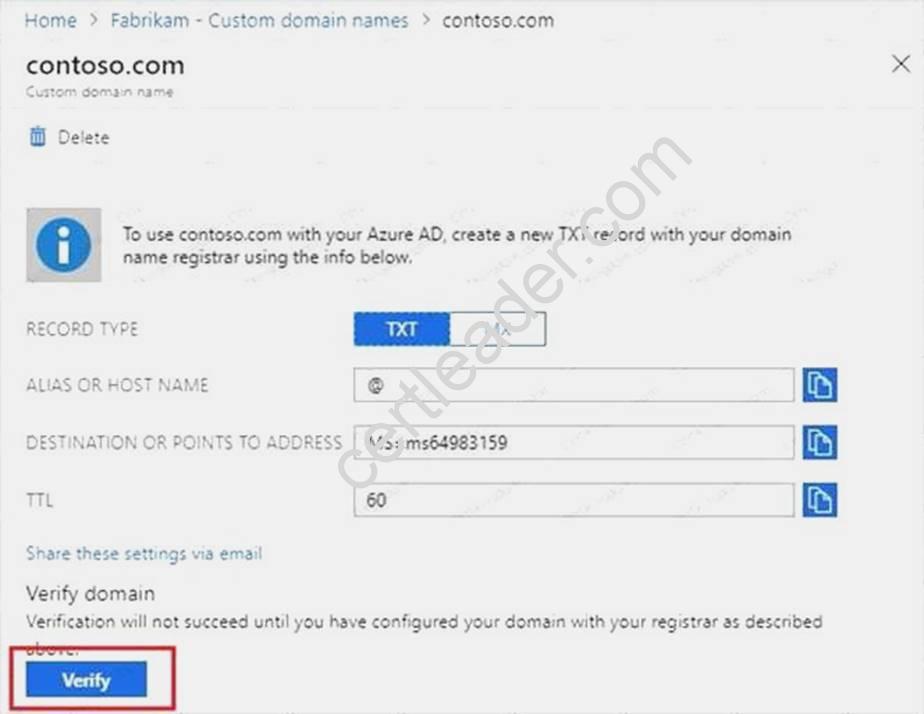

Explanation: To verify your custom domain name (example)
Sign in to the Azure portal using a Global administrator account for the directory. Select Azure Active Directory, and then select Custom domain names.
On the Fabrikam - Custom domain names page, select the custom domain name, Contoso.
On the Contoso page, select Verify to make sure your custom domain is properly registered and is valid for Azure AD. Use either the TXT or the MX record type.

References:
https://docs.microsoft.com/en-us/azure/active-directory/fundamentals/add-custom-domain

NEW QUESTION 16
You are configuring Azure Active Directory (AD) Privileged Identity Management.
You need to provide a user named Admm1 with read access to a resource group named RG1 for only one month.
The user role must be assigned immediately. What should you do?

• A. Assign an active role.
• B. Assign an eligible role.
• C. Assign a permanently active role.
• D. Create a custom role and a conditional access polic

Answer: B

Explanation: Azure AD Privileged Identity Management introduces the concept of an eligible admin. Eligible admins should be users that need privileged access now and then, but not all-day, every day. The role is inactive until the user needs access, then they complete an activation process and become an active admin for a predetermined amount of time.
References:
https://docs.microsoft.com/en-us/azure/active-directory/privileged-identity-management/pimconfigure

NEW QUESTION 17
You discover that VM3 does NOT meet the technical requirements. You need to verify whether the issue relates to the NSGs.
What should you use?

• A. Diagram in VNet1
• B. the security recommendations in Azure Advisor
• C. Diagnostic settings in Azure Monitor
• D. Diagnose and solve problems in Traffic Manager Profiles
• E. IP flow verify in Azure Network Watcher

Answer: E

Explanation: Scenario: Contoso must meet technical requirements including:
Ensure that VM3 can establish outbound connections over TCP port 8080 to the applications servers in the Montreal office.
IP flow verify checks if a packet is allowed or denied to or from a virtual machine. The information consists of direction, protocol, local IP, remote IP, local port, and remote port. If the packet is denied by a security group, the name of the rule that denied the packet is returned. While any source or destination IP can be chosen, IP flow verify helps administrators quickly diagnose connectivity issues from or to the internet and from or to the on-premises environment.
References:
https://docs.microsoft.com/en-us/azure/network-watcher/network-watcher-ip-flow-verify-overview
