AZ-102 Exam - Microsoft Azure Administrator Certification Transition

NEW QUESTION 1
DRAG DROP
You have an on-premises file server named Server1 that runs Windows Server 2021. You have an Azure subscription that contains an Azure file share.
You deploy an Azure File Sync Storage Sync Service, and you create a sync group. You need to synchronize files from Server1 to Azure.

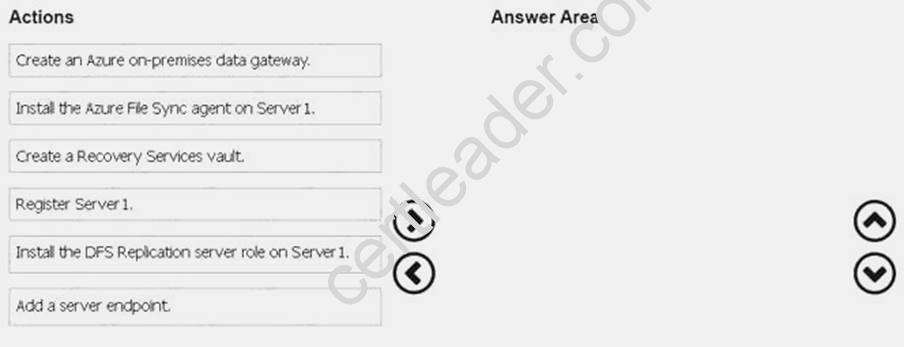

Which three actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.

Answer:

Explanation: Step 1: Install the Azure File Sync agent on Server1
The Azure File Sync agent is a downloadable package that enables Windows Server to be synced with an Azure file share
Step 2: Register Server1.
Register Windows Server with Storage Sync Service
Registering your Windows Server with a Storage Sync Service establishes a trust relationship between your server (or cluster) and the Storage Sync Service.
Step 3: Add a server endpoint
Create a sync group and a cloud endpoint.
A sync group defines the sync topology for a set of files. Endpoints within a sync group are kept in sync with each other. A sync group must contain one cloud endpoint, which represents an Azure file share and one or more server endpoints. A server endpoint represents a path on registered server. References: https://docs.microsoft.com/en-us/azure/storage/files/storage-sync-files-deploymentguide

NEW QUESTION 2
Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.
After you answer a question in this section, you will NOT be able to return to it As a result these questions will not appear in the review screen.
You have an Azure wet) app named Appl. App1 runs in an Azure App Service plan named Plan1. Plan1 is associated to the Free pricing tier.
You discover that App1 stops each day after running continuously for 60 minutes. You need to ensure that App1 can run continuously for the entire day.
Solution: You change the pricing tier of Plan1 to Shared. Does this meet the goal?

• A. Yes
• B. No

Answer: B

Explanation: You should switch to the Basic Tier.
The Free Tier provides 60 CPU minutes / day. This explains why App1 is stops. The Shared Tier provides 240 CPU minutes / day. The Basic tier has no such cap.
References:
https://azure.microsoft.com/en-us/pricing/details/app-service/windows/

NEW QUESTION 3
You have an Azure subscription.
You plan to use Azure Resource Manager templates to deploy 50 Azure virtual machines that will be part of the same availability set.
You need to ensure that as many virtual machines as possible are available if the fabric fails or during servicing.

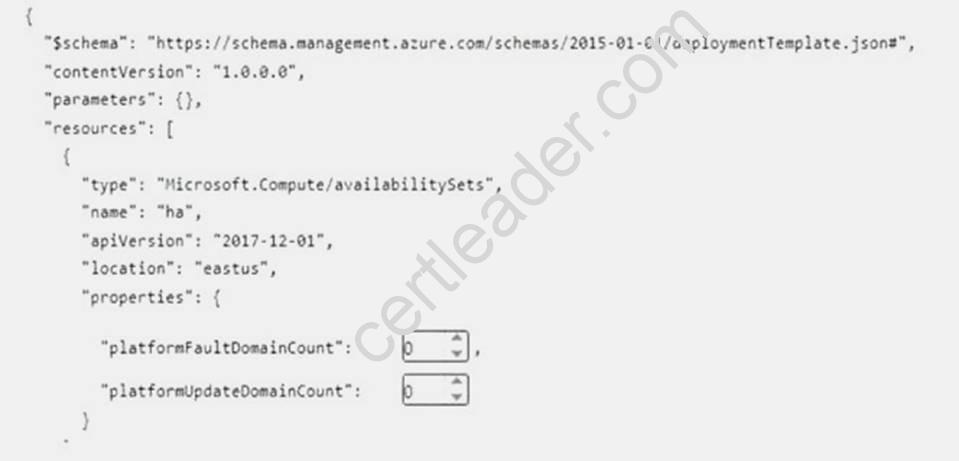

How should you configure the template? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.

Select two alternatives below.

• A. platformFaultDomainCount: 0
• B. platformFaultDomainCount: 1
• C. platformFaultDomainCount: 2
• D. platformFaultDomainCount: 3
• E. platformFaultDomainCount: 4
• F. platformUpdateDomainCount: 10
• G. platformUpdateDomainCount: 20
• H. platformUpdateDomainCount: 25
• I. platformUpdateDomainCount: 30
• J. platformUpdateDomainCount: 40
• K. platformUpdateDomainCount: 50

Answer: CG

Explanation: Use two fault domains.
2 or 3 is max, depending on which region you are in. Use 20 for platformUpdateDomainCount
Increasing the update domain (platformUpdateDomainCount) helps with capacity and availability planning when the platform reboots nodes. A higher number for the pool (20 is max) means that fewer of their nodes in any given availability set would be rebooted at once.
References:
https://www.itprotoday.com/microsoft-azure/check-if-azure-region-supports-2-or-3-fault-domainsmanaged- disks
https://github.com/Azure/acs-engine/issues/1030

NEW QUESTION 4
DRAG DROP
You have an Azure subscription. The subscription includes a virtual network named VNet1. Currently, VNet1 does not contain any subnets.
You plan to create subnets on VNet1 and to use application security groups to restrict the traffic between the subnets. You need to create the application security groups and to assign them to the
subnets.

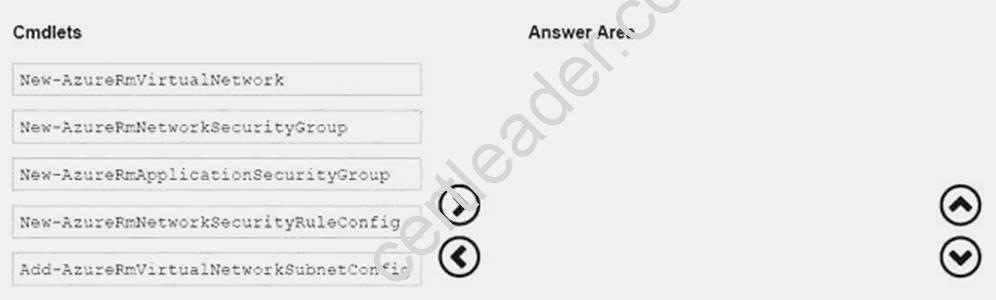

Which four cmdlets should you run in sequence? To answer, move the appropriate cmdlets from the list of cmdlets to the answer area and arrange them in the correct order.

Answer:

Explanation: Step 1: New-AzureRmNetworkSecurityRuleConfig
Step 2: New-AzureRmNetworkSecurityGroup
Step 3: New-AzureRmVirtualNetworkSubnetConfig
Step 4: New-AzureRmVirtualNetwork
Example: Create a virtual network with a subnet referencing a network security group New-AzureRmResourceGroup -Name TestResourceGroup -Location centralus
$rdpRule = New-AzureRmNetworkSecurityRuleConfig -Name rdp-rule -Description "Allow RDP" - Access Allow -Protocol Tcp -Direction Inbound -Priority 100 -SourceAddressPrefix Internet - SourcePortRange * -DestinationAddressPrefix * -DestinationPortRange 3389
$networkSecurityGroup = New-AzureRmNetworkSecurityGroup -ResourceGroupName TestResourceGroup -Location centralus -Name "NSG-FrontEnd" -SecurityRules $rdpRule
$frontendSubnet = New-AzureRmVirtualNetworkSubnetConfig -Name frontendSubnet - AddressPrefix "10.0.1.0/24" -NetworkSecurityGroup $networkSecurityGroup
$backendSubnet = New-AzureRmVirtualNetworkSubnetConfig -Name backendSubnet - AddressPrefix "10.0.2.0/24" -NetworkSecurityGroup $networkSecurityGroup
New-AzureRmVirtualNetwork -Name MyVirtualNetwork -ResourceGroupName TestResourceGroup - Location centralus -AddressPrefix "10.0.0.0/16" -Subnet $frontendSubnet,$backendSubnet References: https://docs.microsoft.com/en-us/powershell/module/azurerm.network/newQuestions
& Answers PDF P-44 azurermvirtualnetwork?view=azurermps-6.7.0

NEW QUESTION 5
HOT SPOT
You have an Azure subscription.
You need to implement a custom policy that meet the following requirements:
*Ensures that each new resource group in the subscription has a tag named organization set to a value of Contoso.
*Ensures that resource group can be created from the Azure portal.
*Ensures that compliance reports in the Azure portal are accurate.

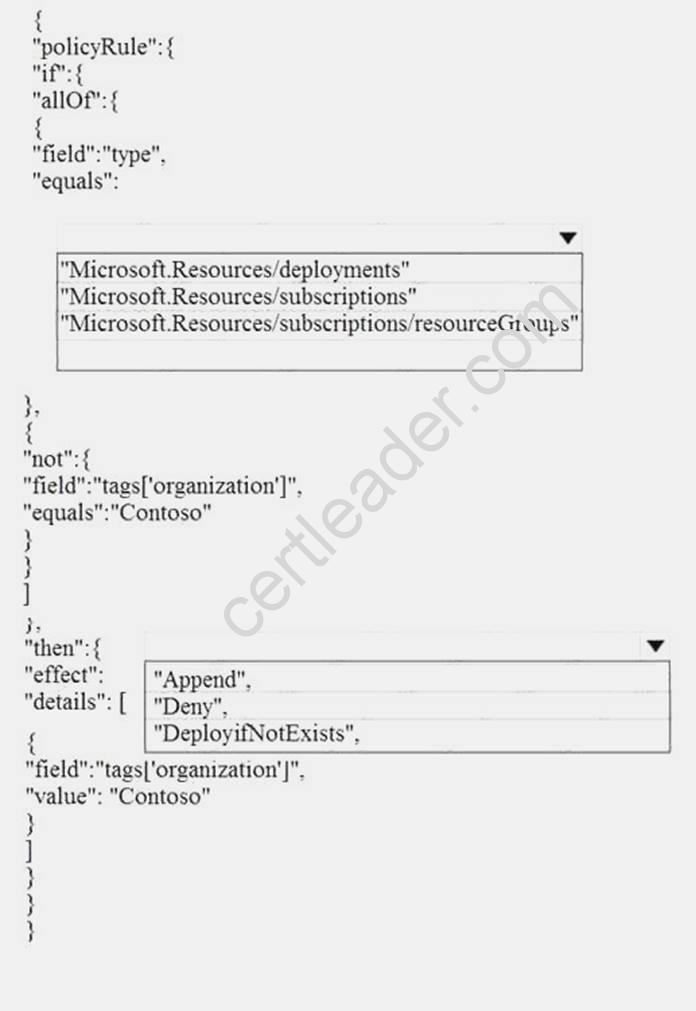

How should you complete the policy? To answer, select the appropriate options in the answers area.

Answer:

Explanation: References: https://docs.microsoft.com/en-us/azure/governance/policy/concepts/definitionstructure

NEW QUESTION 6
You have an Azure App Service plan named AdatumASP1 that uses the P2v2 pricing tier. AdatumASP1 hosts Ml Azure web app named adatumwebapp1. You need to delegate the management of adatumwebapp1 to a group named Devs. Devs must be able to perform the following tasks:
• Add deployment slots.
• View the configuration of AdatumASP1.
• Modify the role assignment for adatumwebapp1. Which role should you assign to the Devs group?

• A. Owner
• B. Contributor
• C. Web Plan Contributor
• D. Website Contributor

Answer: B

Explanation: The Contributor role lets you manage everything except access to resources. Incorrect Answers:
A: The Owner role lets you manage everything, including access to resources.
C: The Web Plan Contributor role lets you manage the web plans for websites, but not access to them.
D: The Website Contributor role lets you manage websites (not web plans), but not access to them. References:
https://docs.microsoft.com/en-us/azure/role-based-access-control/built-in-roles

NEW QUESTION 7
Your company has an Azure subscription named Subscription1.
The company also has two on-premises servers named Server1 and Server2 that run Windows Server 2021. Server1 is configured as a DNS server that has a primary DNS zone named adatum.com. Adatum.com contains 1,000 DNS records.
You manage Server1 and Subscription1 from Server2. Server2 has the following tools installed: The DNS Manager console
Azure PowerShell Azure CLI 2.0
You need to move the adatum.com zone to Subscription1. The solution must minimize administrative effort.
What should you use?

• A. Azure PowerShell
• B. Azure CLI
• C. the Azure portal
• D. the DNS Manager console

Answer: B

Explanation: Azure DNS supports importing and exporting zone files by using the Azure command-line interface (CLI). Zone file import is not currently supported via Azure PowerShell or the Azure portal. References: https://docs.microsoft.com/en-us/azure/dns/dns-import-export

NEW QUESTION 8
You plan to deploy a site-to-site VPN connection from on-premises network to your Azure environment. The VPN connection will be established to the VNET01-USEA2 virtual network. You need to create the required resources in Azure for the planned site-to-site VPN. The solution must minimize costs.
What should you do from the Azure portal?
NOTE: This task may a very long time to complete. You do NOT need to wait for the deployment to complete this task successfully.

Answer:

Explanation: We create a VPN gateway. Step 1:
On the left side of the portal page, click + and type 'Virtual Network Gateway' in search. In Results, locate and click Virtual network gateway.
Step 2:
At the bottom of the 'Virtual network gateway' page, click Create. This opens the Create virtual network gateway page.
Step 3:

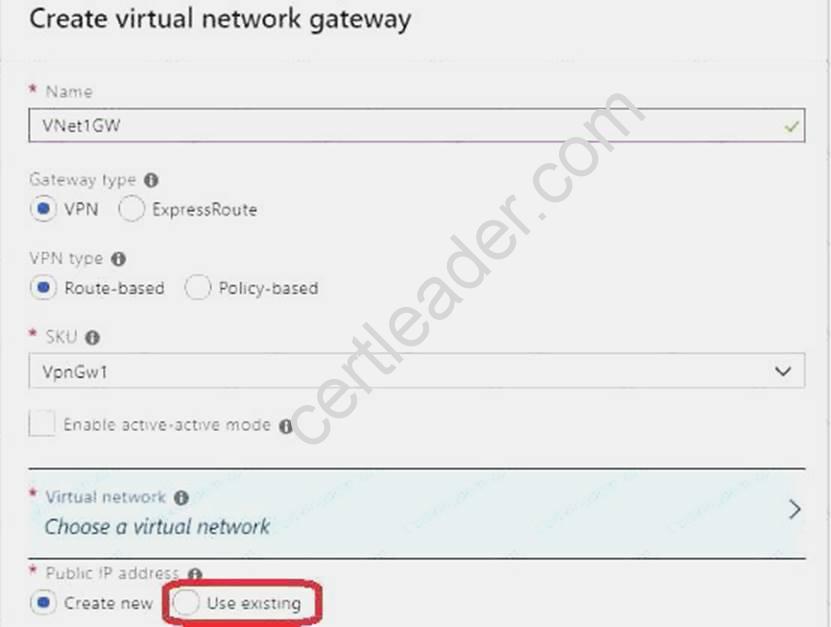

On the Create virtual network gateway page, specify the values for your virtual network gateway. Gateway type: Select VPN. VPN gateways use the virtual network gateway type VPN.
Virtual network: Choose the existing virtual network VNET01-USEA2
Gateway subnet address range: You will only see this setting if you did not previously create a gateway subnet for your virtual network.
Step 4:
Select the default values for the other setting, and click create.

The settings are validated and you'll see the "Deploying Virtual network gateway" tile on the dashboard. Creating a gateway can take up to 45 minutes.
Note: This task may take a very long time to complete. You do NOT need to wait for the deployment to complete this task successfully.
References:
https://docs.microsoft.com/en-us/azure/vpn-gateway/vpn-gateway-howto-site-to-site-resourcemanager- portal
Case Study: 7 Contoso Case Study Overview
Contoso, Ltd. is a consulting company that has a main office in Montreal and two branch offices in Seattle and New York.
The Montreal office has 2,000 employees. The Seattle office has 1,000 employees. The New York office has 200 employees.
All the resources used by Contoso are hosted on-premises.
Contoso creates a new Azure subscription. The Azure Active Directory (Azure AD) tenant uses a domain named contoso.onmicrosoft.com. The tenant uses the P1 pricing tier.
Existing Environment
The network contains an Active Directory forest named contoso.com. All domain controllers are configured as DNS servers and host the contoso.com DNS zone.
Contoso has finance, human resources, sales, research, and information technology departments. Each department has an organizational unit (OU) that contains all the accounts of that respective department. All the user accounts have the department attribute set to their respective department.
New users are added frequently. Contoso.com contains a user named User1. All the offices connect by using private links.
Contoso has data centers in the Montreal and Seattle offices. Each data center has a firewall that can be configured as a VPN device.
All infrastructure servers are virtualized. The virtualization environment contains the servers in the following table.

Contoso uses two web applications named App1 and App2. Each instance on each web application requires 1GB of memory.
The Azure subscription contains the resources in the following table.

The network security team implements several network security groups (NSGs). Planned Changes
Contoso plans to implement the following changes:
• Deploy Azure ExpressRoute to the Montreal office.
• Migrate the virtual machines hosted on Server1 and Server2 to Azure.
• Synchronize on-premises Active Directory to Azure Active Directory (Azure AD).
• Migrate App1 and App2 to two Azure web apps named webApp1 and WebApp2..
Technical requirements
Contoso must meet the following technical requirements:
• Ensure that WebApp1 can adjust the number of instances automatically based on the load and can scale up to five instance*.
• Ensure that VM3 can establish outbound connections over TCP port 8080 to the applications servers in the Montreal office.
• Ensure that routing information is exchanged automatically between Azure and the routers in the Montreal office.
• Enable Azure Multi-Factor Authentication (MFA) for the users in the finance department only.
• Ensure that webapp2.azurewebsites.net can be accessed by using the name app2.contoso.com.
• Connect the New Your office to VNet1 over the Internet by using an encrypted connection.
• Create a workflow to send an email message when the settings of VM4 are modified.
• Cre3te a custom Azure role named Role1 that is based on the Reader role.
• Minimize costs whenever possible.

NEW QUESTION 9
You need to meet the user requirement for Admin1. What should you do?

• A. From the Subscriptions blade, select the subscription, and then modify the Properties.
• B. From the Subscriptions blade, select the subscription, and then modify the Access control (IAM) settings.
• C. From the Azure Active Directory blade, modify the Properties.
• D. From the Azure Active Directory blade, modify the Group

Answer: A

Explanation: Change the Service administrator for an Azure subscription Sign in to Account Center as the Account administrator. Select a subscription.
On the right side, select Edit subscription details.
Scenario: Designate a new user named Admin1 as the service administrator of the Azure subscription.
References: https://docs.microsoft.com/en-us/azure/billing/billing-add-change-azure-subscriptionadministrator

NEW QUESTION 10
HOT SPOT

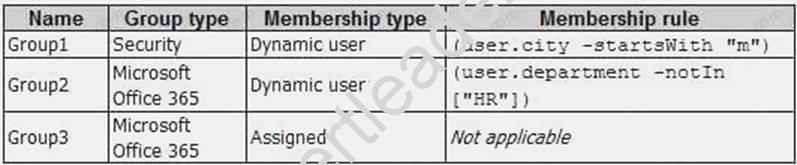

You have an Azure Active Directory (Azure AD) tenant named adatum.com. Adatum.com contains the groups in the following table.

You create two user accounts that are configured as shown in the following table.

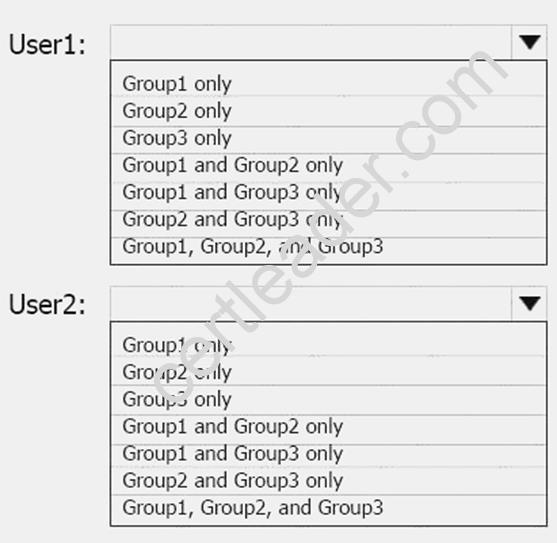

To which groups do User1 and User2 belong? To answer. select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.

Answer:

Explanation: Box 1: Group 1 only First rule applies
Box 2: Group1 and Group2 only Both membership rules apply.
References: https://docs.microsoft.com/en-us/sccm/core/clients/manage/collections/createcollections

NEW QUESTION 11
You plan to connect a virtual network named VNET1017 to your on-premises network by using both an Azure ExpressRoute and a site-to-site VPN connection.
You need to prepare the Azure environment for the planned deployment. The solution must maximize the IP address space available to Azure virtual machines.
What should you do from the Azure portal before you create the ExpressRoute are the VPN gateway?

Answer:

Explanation: We need to create a Gateway subnet Step 1:
Go to More Services > Virtual Networks Step 2:
Then click on the VNET1017, and click on subnets. Then click on gateway subnet.
Step 3:

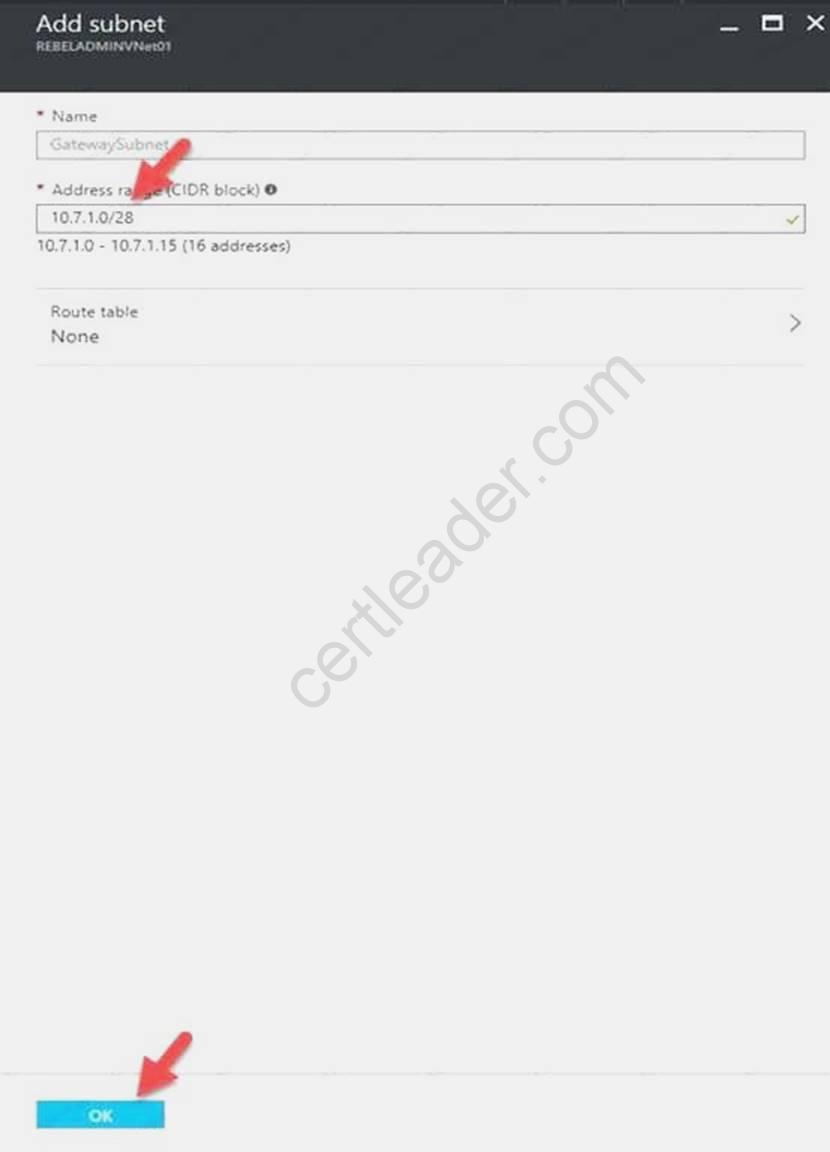

In the next window define the subnet for the gateway and click OK

It is recommended to use /28 or /27 for gateway subnet.
As we want to maximize the IP address space we should use /27. References:
https://blogs.technet.microsoft.com/canitpro/2021/06/28/step-by-step-configuring-a-site-to-sitevpn- gateway-between-azure-and-on-premise/

NEW QUESTION 12
You plan to automate the deployment of a virtual machine scale set that uses the Windows Server 2021 Datacenter image.
You need to ensure that when the scale set virtual machines are provisioned, they have web server components installed.
Which two actions should you perform? Each correct answer presents part of the solution. NOTE Each correct selection is worth one point.

• A. Modify the extensionProfile section of the Azure Resource Manager template.
• B. Create a new virtual machine scale set in the Azure portal.
• C. Create an Azure policy.
• D. Create an automation account.
• E. Upload a configuration scrip

Answer: AB

Explanation: Virtual Machine Scale Sets can be used with the Azure Desired State Configuration (DSC) extension handler. Virtual machine scale sets provide a way to deploy and manage large numbers of virtual machines, and can elastically scale in and out in response to load. DSC is used to configure the VMs as they come online so they are running the production software.
References: https://docs.microsoft.com/en-us/azure/virtual-machine-scale-sets/virtual-machinescale- sets-dsc

NEW QUESTION 13
You need to move the blueprint files to Azure. What should you do?

• A. Generate a shared access signature (SAS). Map a drive, and then copy the files by using File Explorer.
• B. Use the Azure Import/Export service.
• C. Generate an access ke
• D. Map a drive, and then copy the files by using File Explorer.
• E. Use Azure Storage Explorer to copy the file

Answer: D

Explanation: Azure Storage Explorer is a free tool from Microsoft that allows you to work with Azure Storage data on Windows, macOS, and Linux. You can use it to upload and download data from Azure blob storage.
Scenario:
Planned Changes include: move the existing product blueprint files to Azure Blob storage. Technical Requirements include: Copy the blueprint files to Azure over the Internet.
References: https://docs.microsoft.com/en-us/azure/machine-learning/team-data-scienceprocess/move-data-to-azure-blob-using-azure-storage-explorer

NEW QUESTION 14
You recently deployed a web app named homepagelod7509087.
You need to back up the code used for the web app and to store the code in the homepagelod7509Q87 storage account. The solution must ensure that a new backup is created daily. What should you do from the Azure portal?

Answer:

Explanation: Step 1:

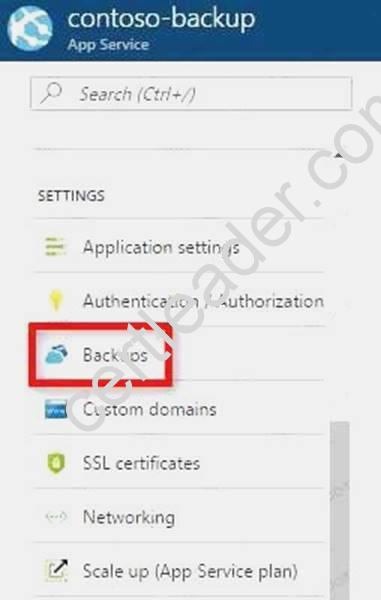

Locate and select the web app homepagelod7509087, select Backups. The Backups page is displayed.

Step 2:
In the Backup page, Click Configure. Step 3:

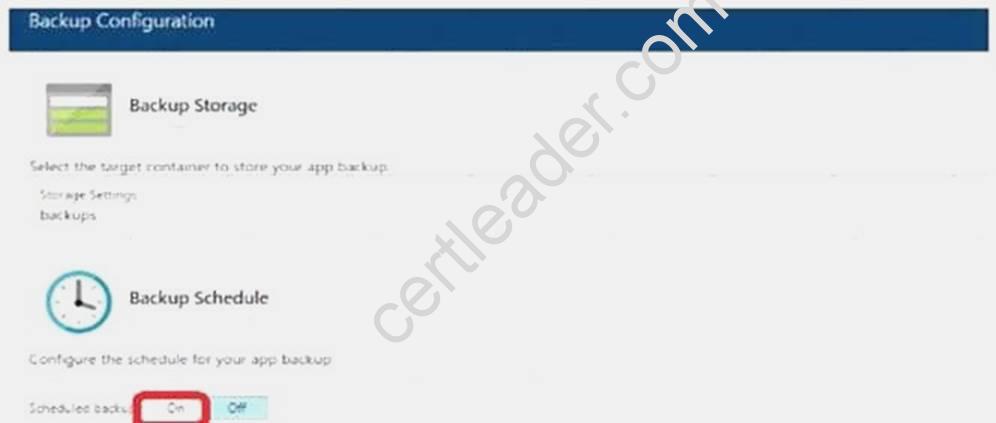

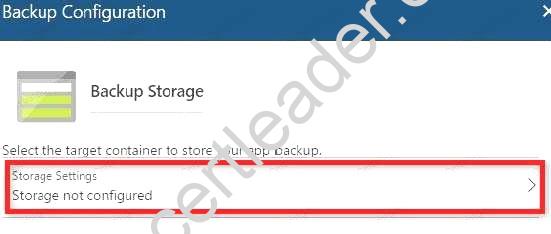

In the Backup Configuration page, click Storage: Not configured to configure a storage account.

Step 4:
Choose your backup destination by selecting a Storage Account and Container. Select the homepagelod7509087 storage account.
Step 5:
In the Backup Configuration page that is still left open, select Scheduled backup On, and configure daily backups.

Step 6:
In the Backup Configuration page, click Save. Step 7:
In the Backups page, click Backup.
References:
https://docs.microsoft.com/en-us/azure/app-service/web-sites-backup

NEW QUESTION 15
HOT SPOT

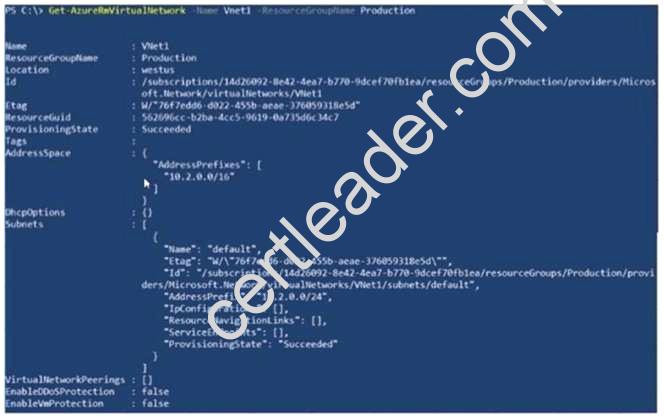

You have a virtual network named VNet1 that has the configuration shown in the following exhibit.

Use the drop-down menus to select the answer choice that completes each statement based on the information presented in the graphic.
NOTE: Each correct selection is worth one point.

Answer:

Explanation: Box 1: add a subnet
Your IaaS virtual machines (VMs) and PaaS role instances in a virtual network automatically receive a private IP address from a range that you specify, based on the subnet they are connected to. We
need to add the 192.168.1.0/24 subnet. Box 2: add a network interface
The 10.2.1.0/24 network exists. We need to add a network interface.
References: https://docs.microsoft.com/en-us/azure/virtual-network/virtual-networks-static-privateip- arm-pportal

NEW QUESTION 16
You have an Azure Active Directory (Azure AD) domain that contains 5,000 user accounts. You create a new user account named AdminUser1.
You need to assign the User administrator administrative role to AdminUser1. What should you do from the user account properties?

• A. From the Directory role blade, modify the directory role.
• B. From the Groups blade, invite the user account to a new group.
• C. From the Licenses blade, assign a new licens

Answer: A

Explanation: Assign a role to a user
Sign in to the Azure portal with an account that's a global admin or privileged role admin for the directory.
Select Azure Active Directory, select Users, and then select a specific user from the list.
For the selected user, select Directory role, select Add role, and then pick the appropriate admin roles from the Directory roles list, such as Conditional access administrator.
Press Select to save.
References: https://docs.microsoft.com/en-us/azure/active-directory/fundamentals/activedirectory-users-assign-role-azure-portal

NEW QUESTION 17
You have an Azure subscription that contains a policy-based virtual network gateway named GW1 and a virtual network named VNet1. You need to ensure that you can configure a point-to-site connection from VNet1 to an on-premises computer. Which two actions should you perform? Each correct answer presents part of the solution.
NOTE: Each correct selection is worth one point.

• A. Reset GW1.
• B. Add a service endpoint to VNet1.
• C. Add a connection to GW1.
• D. Add a public IP address space to VNet1.
• E. Delete GWL
• F. Create a route-based virtual network gatewa

Answer: EF

Explanation: E: Policy-based VPN devices use the combinations of prefixes from both networks to define how traffic is encrypted/decrypted through IPsec tunnels. It is typically built on firewall devices that perform packet filtering. IPsec tunnel encryption and decryption are added to the packet filtering and processing engine.
F: A VPN gateway is used when creating a VPN connection to your on-premises network.
Route-based VPN devices use any-to-any (wildcard) traffic selectors, and let routing/forwarding tables direct traffic to different IPsec tunnels. It is typically built on router platforms where each IPsec tunnel is modeled as a network interface or VTI (virtual tunnel interface).
Incorrect Answers:
D: Point-to-Site connections do not require a VPN device or a public-facing IP address. References:
https://docs.microsoft.com/en-us/azure/vpn-gateway/create-routebased-vpn-gateway-portal https://docs.microsoft.com/en-us/azure/vpn-gateway/vpn-gateway-connect-multiple-policybasedrm- ps

Case Study: 10
Lab 2 Overview
This is a lab or performance-based testing (PBT) section.
The following section of the exam is a lab. In this section, you will perform a set of tasks m a live environment. While most liable to you as it would be m a live environment, some functionality (e g, copy and paste, ability to having sites) will not be possible by design.
Scoring is based on the outcome of performing the tasks stated in the lab. In other words, it doesn't matter how you accomplish the lab9s0 and all other sections of the exam in the time provided.
Please note that once you submit your work by clicking the Next button within a lab. you will NOT be able to return to the tab.

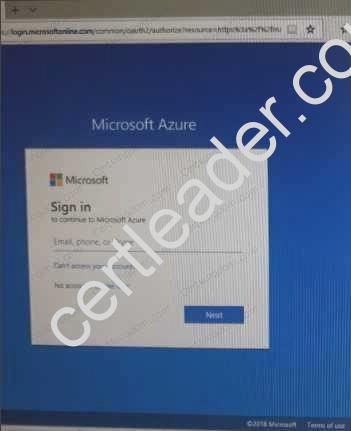

To connect to Azure portal, type https://portal.azure.com in te browser address bar.
