AZ-120 Exam - Planning and Administering Microsoft Azure for SAP Workloads

NEW QUESTION 1

You are deploying an SAP environment on Azure that will use an SAP HANA database server.
You provision an Azure virtual machine for SAP HANA by using the M64s virtual machine SKU.
You need to set the swap space by using the Microsoft Azure Linux Agent (waagent) configuration file. Which two settings should you configure? Each correct answer presents part of the solution.
NOTE: Each correct selection is worth one point.

• A. ResourceDisk.EnableSwapEncryption=n
• B. AutoUpdate.Enabled=n
• C. ResourceDisk.SwapSizeMB=229376
• D. ResourceDisk.EnableSwap=y

Answer: CD

Explanation:
To create a swap file in the directory that's defined by the ResourceDisk.MountPoint parameter, you can update the /etc/waagent.conf file by setting the following three parameters:
ResourceDisk.Format=y ResourceDisk.EnableSwap=y ResourceDisk.SwapSizeMB=xx References:
https://support.microsoft.com/en-us/help/4010058/how-to-add-a-swap-file-in-linux-azure-virtual-machines

NEW QUESTION 2

You migrate SAP ERP Central Component (SAP ECC) production and non-production landscapes to Azure. You are licensed for SAP Landscape Management (LaMa).
You need to refresh from the production landscape to the non-production landscape.

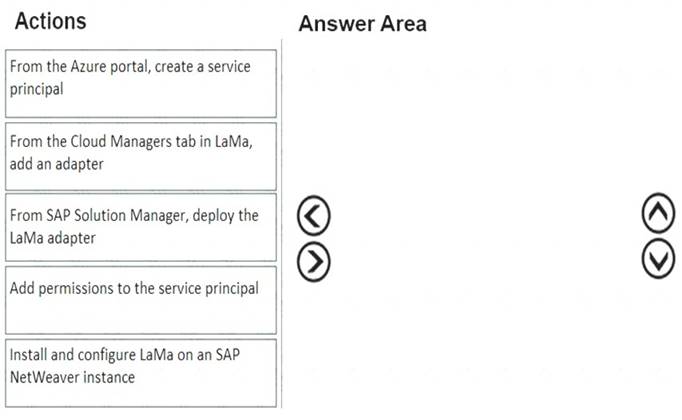

Which four actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:
Step 1: From the Azure portal, create a service principal
The Azure connector can use a Service Principal to authorize against Microsoft Azure. Follow these steps to create a Service Principal for SAP Landscape Management (LaMa).
Step 2: Add permissions to the service principal
The Service Principal does not have permissions to access your Azure resources by default. You need to give the Service Principal permissions to access them.
Step 3: From the Cloud Managers tab in LaMa, add an adapter Create a new connector in SAP LaMa
Open the SAP LaMa website and navigate to Infrastructure. Go to tab Cloud Managers and click on Add. Select the Microsoft Azure Cloud Adapter
Step 4: Install and configure LaMA on an SAP NetWeater instance Provision a new adaptive SAP system
You can manually deploy a new virtual machine or use one of the Azure templates in the quickstart repository. It contains templates for SAP NetWeaver ASCS, SAP NetWeaver application servers, and the database. You can also use these templates to provision new hosts as part of a system copy/clone etc.
Note: To support customers on their journey into a cloud model (hybrid or entirely public cloud), SAP and Microsoft partnered to create an adapter that integrates the SAP management capabilities of LaMa with the IaaS advantages of Microsoft Azure.
References:
https://docs.microsoft.com/en-us/azure/virtual-machines/workloads/sap/lama-installation

NEW QUESTION 3

You deploy an SAP environment on Azure.
Your company has a Service Level Agreement (SLA) of 99.99% for SAP. You implement Azure Availability Zones that have the following components:
* Redundant SAP application servers
* ASCS/ERS instances that use a failover cluster
* Database high availability that has a primary instance and a secondary instance
You need to validate the load distribution to the application servers. What should you use?

• A. SAP Solution Manager
• B. Azure Monitor
• C. SAPControl
• D. SAP Web Dispatcher

Answer: D

Explanation:
Load balancers. These are used to distribute traffic to virtual machines in the application-tier subnet. For high availability, use the built-in SAP Web Dispatcher, Azure Load Balancer, or network appliances, depending on the traffic type (such as HTTP or SAPGUI) or the required network services, such as Secure Sockets Layer (SSL) termination.
Reference:
https://docs.microsoft.com/en-us/azure/architecture/reference-architectures/sap/sap-netweaver

NEW QUESTION 4

Your on-premises network contains an Active Directory domain.
You have an SAP environment on Azure that runs on SUSE Linux Enterprise Server (SLES) servers. You configure the SLES servers to use domain controllers as their NTP servers and their DNS servers. You need to join the SLES servers to the Active Directory domain.

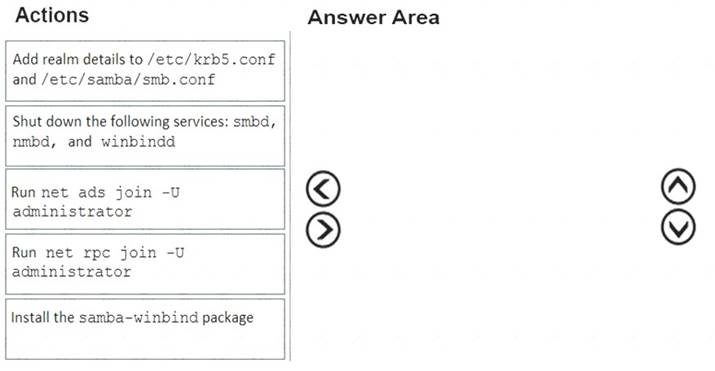

Which three actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:
Step 1: Install the samba-winbind package Install samba-winbind
Step 2: Add realm details to /etc/krb5.conf and /etc/samba/smb.conf
Edit files - best way to do this is to use yast on test machine and copy files from it
In following examples you need to replace EXAMPLE/EXAMPLE.COM/.example.com with your values/settings
/etc/samba/smb.conf [global]
workgroup = EXAMPLE
usershare allow guests = NO #disallow guests from sharing idmap gid = 10000-20000
idmap uid = 10000-20000
kerberos method = secrets and keytab realm = EXAMPLE.COM
security = ADS
template homedir = /home/%D/%U template shell = /bin/bash
winbind offline logon = yes winbind refresh tickets = yes
/etc/krb5.conf [libdefaults]
default_realm = EXAMPLE.COM clockskew = 300
[realms] EXAMPLE.COM = {
kdc = PDC.EXAMPLE.COM
default_domain = EXAMPLE.COM admin_server = PDC.EXAMPLE.COM
}
Step 3: Run net ads join -U administrator Join the SLES 12 Server to the AD domain References:
https://www.suse.com/support/kb/doc/?id=7018461

NEW QUESTION 5

You plan to migrate an SAP HANA instance to Azure.
You need to gather CPU metrics from the last 24 hours from the instance. Solution: You use Monitoring from the SAP HANA Cockpit.
Does this meet the goal?

• A. Yes
• B. No

Answer: A

Explanation:
The SAP HANA cockpit provides a single point of access to a range of SAP HANA administration and monitoring tasks. It is used to monitor and ensure the overall health of the system.
The HANA Monitoring dashboard also visualizes key HANA Metrics of SAP HANA system. Reference:
https://developers.sap.com/tutorials/dt-monitoring-hana-part1.html https://help.sap.com/viewer/afa922439b204e9caf22c78b6b69e4f2/2.10.0.0/en-US https://www.hanatutorials.com/p/hana-monitoring-dashboard.html

NEW QUESTION 6

You plan to migrate an SAP ERP Central Component (SAP ECC) production system to Azure. You are reviewing the SAP EarlyWatch Alert report for the system.
You need to recommend sizes for the Azure virtual machines that will host the system.
Which two sections of the report should you review? Each correct answer presents a complete solution.
NOTE: Each correct selection is worth one point.

• A. Hardware Capacity
• B. Patch Levels under SAP Software Configuration
• C. Hardware Configuration under Landscape
• D. Database and ABAP Load Optimization
• E. Data Volume Management

Answer: AD

Explanation:
It is important to note that there are 2 types of data collected for Hardware Capacity. Performance Data - e.g. CPU and Memory utilization data.
Hardware Capacity data shown in the EWA is measuring CPU and Memory utilization data. This is known as Performance Data.
Configuration Data - e.g. OS information, CPU type.
It is also collecting system information about the host such as hardware manufacturer, CPU type etc. This is
known as Configuration Data.

NEW QUESTION 7

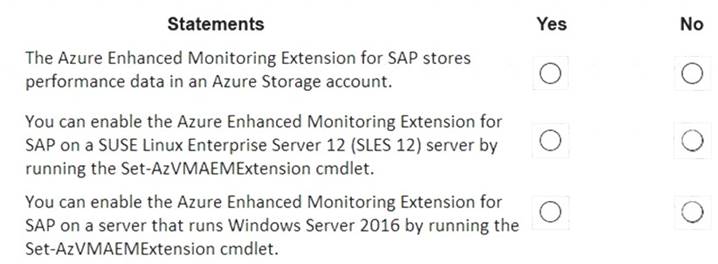

For each of the following statements, select Yes if the statement is true. Otherwise, select No.
NOTE: Each correct selection is worth one point.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:
Box 1: Yes
The SAP Azure Enhanced Monitoring Extension builds on top of the Azure Diagnostic extension, which stores its data in an Azure Storage account that you specify.
Box 2: Yes
The Set-AzVMAEMExtension cmdlet updates the configuration of a virtual machine to enable or update the support for monitoring for SAP systems that are installed on the virtual machine. The cmdlet installs the Azure Enhanced Monitoring (AEM) extension that collects the performance data and makes it discoverable for the SAP system.
The -OSType specifies the OS. Either Windows or Linux.
Box 3: Yes References:
https://docs.microsoft.com/en-us/azure/azure-monitor/platform/diagnostics-extension-overview https://docs.microsoft.com/en-us/powershell/module/az.compute/set-azvmaemextension

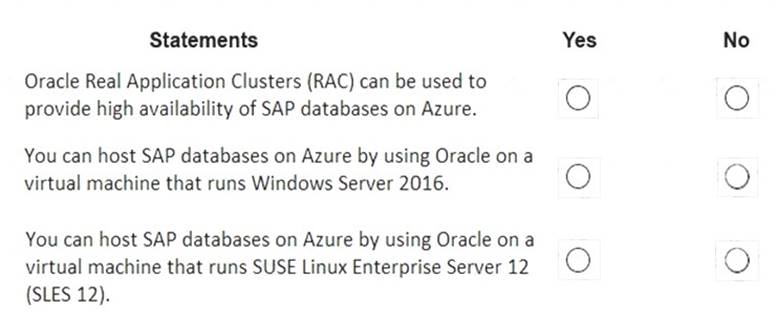

NEW QUESTION 8

For each of the following statements, select Yes if the statement is true. Otherwise, select No. NOTE: Each correct selection is worth one point.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:
Box 1: Yes
Box 2: Yes
Oracle Database 12c Release 2 (12.2) is certified on Microsoft Windows Server 2021 (Standard, Datacenter, and Essentials Editions), which includes support for the database client, server, and Oracle Real Application Clusters.
Organizations can run SAP applications with Oracle databases on the same code base on Unix, Linux, and Windows operating systems.
Box 3: Yes References:
https://docs.microsoft.com/en-us/azure/virtual-machines/workloads/oracle/oracle-overview https://docs.oracle.com/en/database/oracle/oracle-database/12.2/ntdbn/index.html#

NEW QUESTION 9

You have a n SAP environment on Azure.
Your on-premises network uses a 1-Gbps ExpresRoute circuit to connect to Azure Private peering is enabled on the circuit. The default route (0.0.0.0/0) from the on-premises network is advertised
You need to resolve the issue without modifying the ExpresRoute circuit. The solution must minimize administrative effort. What should you do?

• A. Create a user-defined route tint redirects traffic to the Blob storage.
• B. Create an application security group.
• C. Change the backup solution to use a third-party software that can write to the Blob storage.
• D. Enable virtual network service endpoints.

Answer: A

NEW QUESTION 10

You recently migrated an SAP HANA environment to Azure.
You plan to back up SAP HANA databases to disk on the virtual machines, and then move the backup tiles to Azure Blob storage for retention.
Which command should you run to move the backups to the Blob storage?

• A. backint
• B. robocopy
• C. azcopy
• D. scp

Answer: C

Explanation:
To store directories and files on Azure storage, one could use CLI or PowerShell. There is also a ready-to-use utility, AzCopy, for copying data to Azure storage.
Reference:
https://docs.microsoft.com/en-us/azure/virtual-machines/workloads/sap/sap-hana-backup-file-level

NEW QUESTION 11

Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.
After you answer a question in this section, you will NOT be able to return to it. As a result, these
questions will not appear in the review screen.
You have a complex SAP environment that has both ABAP- and Java-based systems. The current on-premises landscapes are based on SAP NetWeaver 7.0 (Unicode and Non-Unicode) running on Windows Server and Microsoft SQL Server.
You need to migrate the SAP environment to a HANA-certified Azure environment.
Solution: You upgrade to SAP NetWeaver 7.4, and then you migrate SAP to Azure by using Azure Site Recovery.
Does this meet the goal?

• A. Yes
• B. No

Answer: A

Explanation:
We need upgrade to SAP NetWeaver 7.4 before the migration. Then Azure Site Recovery is used for the migration to Azure.
Reference:
https://docs.microsoft.com/en-us/azure/site-recovery/vmware-azure-architecture

NEW QUESTION 12

You are designing the backup for an SAP database.

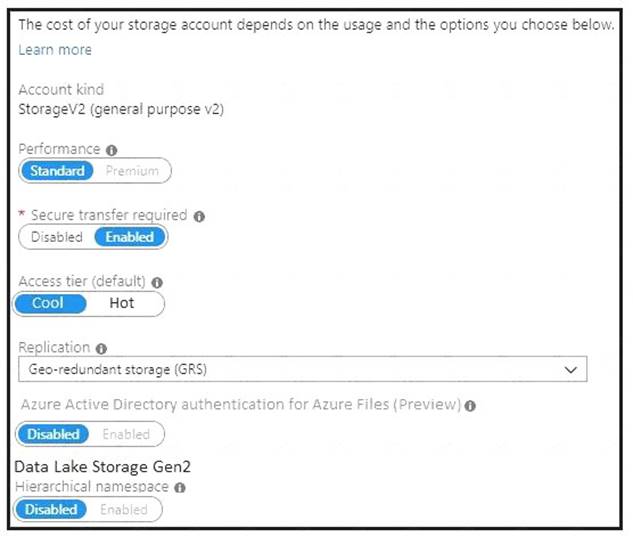

You have an Azure Storage account that is configured as shown in the following exhibit.

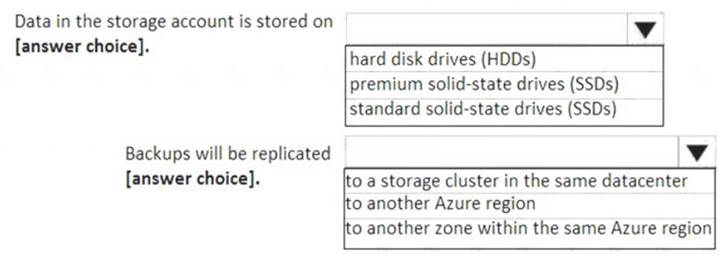

Use the drop-down menus to select the answer choice that completes each statement based on the information presented in the graphic.
NOTE: Each correct selection is worth one point.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:
Box 1: standard solid-state drives (SSDs)
Standard SSD Managed Disks, a low-cost SSD offering, are optimized for test and entry-level production workloads requiring consistent latency.
Box 2: to another Azure region
Geo-redundant storage (GRS) copies your data synchronously three times within a single physical location in the primary region using LRS. It then copies your data asynchronously to a single physical location in a secondary region that is hundreds of miles away from the primary region.
References:
https://azure.microsoft.com/en-us/pricing/details/managed-disks/
https://docs.microsoft.com/en-us/azure/storage/common/storage-redundancy#geo-redundant-storage

NEW QUESTION 13

You are building an SAP environment by using Azure Resource Manager templates. The SAP environment will use Linux virtual machines.
You need to correlate the LUN of the data disks in the template to the volume of the virtual machines. Which command should you run/

• A. Is /dev/ disk/azure/root
• B. Is /dev/ disk/azure/scsil
• C. Tree /dev/ disk/azure/root
• D. Tree /dev/disk/azure/resource

Answer: C

NEW QUESTION 14

You have an on-premises SAP environment hosted on VMware vSphere. You plan to migrate the environment to Azure by using Azure Site Recovery. You need to prepare the environment to support Azure Site Recovery.
What should you deploy first?

• A. an on-premises data gateway to vSphere
• B. Microsoft System Center Virtual Machine Manager (VMM)
• C. an Azure Backup server
• D. a configuration server to vSphere

Answer: D

Explanation:
When you set up disaster recovery for on-premises VMware VMs, Site Recovery needs access to the vCenter Server/vSphere host so that the Site Recovery process server can automatically discover VMs, and fail them over as needed. By default the process server runs on the Site Recovery configuration server. Add an account for the configuration server to connect to the vCenter Server/vSphere host.
References:
https://docs.microsoft.com/en-us/azure/site-recovery/vmware-azure-manage-vcenter

NEW QUESTION 15

You plan to deploy an SAP environment on Azure. The SAP environment will have landscapes for production, development. and quality assurance.
You need to minimize the costs associated with running the development and quality assurance landscapes on Azure. What should you do?

• A. Create Azure Automation runbooks to stop, deallocate, and start Azure virtual machines.
• B. Create a scheduled task that runs the stopsap command.
• C. Configure scaling for Azure App Service.
• D. Configure Azure virtual machine scales sets.

Answer: B

NEW QUESTION 16

You plan to migrate an on-premises SAP environment to Azure.
You need to identity whether any SAP application servers host multiple SAP system identifiers (SlDs). What should you do?

• A. Run SAP HAN A sizing report.
• B. From the SAP EarlyWatch Alert report, compare the physical host names to the virtual host names.
• C. Run the SAP Report from ABAPMeter.
• D. From the SAP EarlyWatch Alert report, compare the services to the reference objects

Answer: C

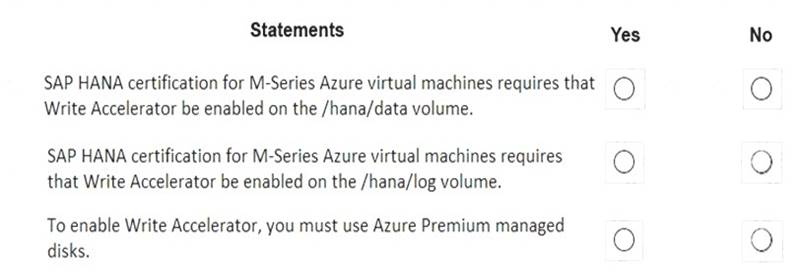

NEW QUESTION 17

For each of the following statements, select Yes if the statement is true. Otherwise, select No. NOTE: Each correct selection is worth one point.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:
Box 1: No
Box 2: Yes
The minimum SAP HANA certified conditions for the different storage types are:
Azure Premium SSD - /hana/log is required to be cached with Azure Write Accelerator. The /hana/data volume could be placed on Premium SSD without Azure Write Accelerator or on Ultra disk
Box 3: Yes References:
https://docs.microsoft.com/en-us/azure/virtual-machines/workloads/sap/hana-vm-operations-storage

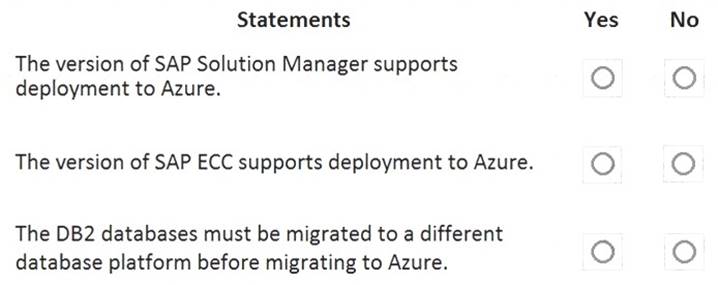

NEW QUESTION 18

You have an SAP environment that contains the following components:
* Enhancement Package 6 for SAP ERP Central Component 6.0 (SAP ECC 6.0)
* Servers that runs SUSE Linux Enterprise Server 12 (SIES 12)
* Databases on IBM D82 10.5
* SAP Solution Manager 7.1
You plan to migrate the SAP environment to Azure.
For each of the following statements, select Yes if the statement is true. Otherwise, select No. NOTE: Each correct selection is worth one point.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:
Box 1: Yes
Box 2: No
Upgrade to ECC 7.01 or later. Box 3: No
With Microsoft Azure, you can migrate your existing SAP application running on IBM Db2 for Linux, UNIX, and Windows (LUW) to Azure virtual machines. With SAP on IBM Db2 for LUW, administrators and developers can still use the same development and administration tools, which are available on-premises.
Reference:
https://docs.microsoft.com/en-us/azure/data-factory/connector-sap-table https://docs.microsoft.com/en-us/azure/virtual-machines/workloads/sap/dbms_guide_ibm

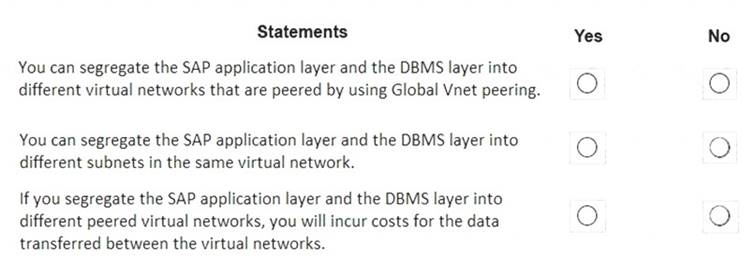

NEW QUESTION 19

You are planning the Azure network infrastructure for an SAP environment.
For each of the following statements, select Yes if the statement is true. Otherwise, select No.
NOTE: Each correct selection is worth one point.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:
Box 1: Yes
Box 2: No
A design that's not supported is the segregation of the SAP application layer and the DBMS layer into different Azure virtual networks that aren't peered with each other. We recommend that you segregate the SAP application layer and DBMS layer by using subnets within an Azure virtual network instead of by using different Azure virtual networks.
Box 3: Yes
Be aware that network traffic between two peered Azure virtual networks is subject to transfer costs. Huge data volume that consists of many terabytes is exchanged between the SAP application layer and the DBMS layer. You can accumulate substantial costs if the SAP application layer and DBMS layer are segregated between two peered Azure virtual networks.
References:
https://docs.microsoft.com/en-us/azure/virtual-machines/workloads/sap/dbms_guide_general

NEW QUESTION 20

You have an on-premises SAP environment that uses AIX servers and IBM DB2 as the database platform. You plan to migrate SAP to Azure. In Azure, the SAP workloads will use Windows Server and Microsoft SQL Server as the database platform.
What should you use to export from DB2 and import the data to SQL Server?

• A. R3load
• B. Azure SQL Data Warehouse
• C. SQL Server Management Studio (SSMS)
• D. R3trans

Answer: C

Explanation:
To migrate DB2 databases to SQL Server, you must connect to the DB2 database that you want to migrate. When you connect, SSMA obtains metadata about all DB2 schemas, and then displays it in the DB2 Metadata Explorer pane.
References:
https://docs.microsoft.com/en-us/sql/ssma/db2/connecting-to-db2-database-db2tosql?view=sql-server-ver15 https://docs.microsoft.com/en-us/biztalk/adapters-and-accelerators/adapter-sap/import-sap-data-using-sql-server

NEW QUESTION 21

Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.
After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.
You deploy SAP HANA on Azure (Large Instances). You need to back up the SAP HANA database to Azure.
Solution: You configure DB13 to back up directly to a local disk. Does this meet the goal?

• A. Yes
• B. No

Answer: B

Explanation:
You need to back up the SAP HANA database to Azure, not to a local disk. References:
https://docs.microsoft.com/en-us/azure/backup/sap-hana-db-about
https://docs.microsoft.com/en-us/azure/backup/backup-azure-sap-hana-database#configure-backup

NEW QUESTION 22

You plan to deploy a high availability SAP environment that will use a failover clustering solution.

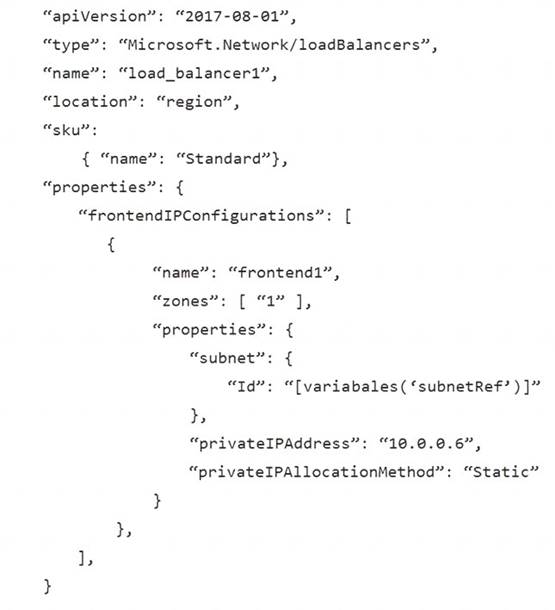

You have an Azure Resource Manager template that you will use for the deployment. You have the following relevant portion of the template.

What is created by the template?

• A. a zonal frontend IP address for the internal Azure Standard Load Balancer
• B. a zone-redundant frontend IP address for the internal Azure Basic Load Balancer
• C. a zone -redundant public IP address for the internal load balancer
• D. a zone-redundant frontend IP address for the internal Azure Standard Load Balancer

Answer: D

Explanation:
Reference:
https://docs.microsoft.com/en-us/azure/virtual-machines/workloads/sap/high-availability-guide-standard-load-ba

NEW QUESTION 23

You are evaluating which migration method Litware can implement based on the current environment and the business goals.
Which migration method will cause the least amount of downtime?

• A. Use the Database migration Option (DMO) to migrate to SAP HANA and Azure During the samemaintenance window.
• B. Use Near-Zero Downtime (NZDT) to migrate to SAP HANA and Azure during the same maintenance window.
• C. Migrate SAP to Azure, and then migrate SAP ECC to SAP Business Suite on HANA.
• D. Migrate SAP ECC to SAP Business Suite on HANA an the migrate SAP to Azure.

Answer: A

Explanation:
The SAP Database Migration Option (DMO) with System Move option of SUM, used as part of the migration allows customer the options to perform the migration in a single step, from source system on-premises, or to the target system residing in Microsoft Azure, minimizing overall downtime.
References:
https://blogs.sap.com/2021/10/05/your-sap-on-azure-part-2-dmo-with-system-move/

NEW QUESTION 24

You have an SAP ERP Central Component (SAP ECQ) environment on Azure.
You need to add an additional SAP application server to meet the following requirements:
• Provide the highest availability.
• Provide the fastest speed between the new server and the database. What should you do?

• A. Place the new server in a different Azure Availability Zone than the database.
• B. Place the new server in the same Azure Availability Set a? the database and the other application servers.
• C. Place the new server in the same Azure Availability Zone as the database and the other application servers.

Answer: A

NEW QUESTION 25
......
