AZ-220 Exam - Microsoft Azure IoT Developer

NEW QUESTION 1

You have three Azure IoT hubs named Hub1, Hub2, and Hub3, a Device Provisioning Service instance, and an IoT device named Device1.
Each IoT hub is deployed to a separate Azure region. Device enrollment uses the Lowest latency allocation policy.
The Device Provisioning Service uses the Lowest latency allocation policy. Device1 is auto-provisioned to
Hub1 by using the Device Provisioning Service. Device1 regularly moves between regions.
You need to ensure that Device1 always connects to the IoT hub that has the lowest latency. What should you do?

• A. Configure device attestation that uses X.509 certificates.
• B. Implement device certificate rolling.
• C. Disenroll and reenroll Device1.
• D. Configure the re-provisioning policy.

Answer: D

Explanation:
Automated re-provisioning support.
Microsoft added first-class support for device re-provisioning which allows devices to be reassigned to a different IoT solution sometime after the initial solution assignment. Re-provisioning support is available in two options:
Factory reset, in which the device twin data for the new IoT hub is populated from the enrollment list instead of the old IoT hub. This is common for factory reset scenarios as well as leased device scenarios. Migration, in which device twin data is moved from the old IoT hub to the new IoT hub. This is common for scenarios in which a device is moving between geographies.
Reference:
https://azure.microsoft.com/en-us/blog/new-year-newly-available-iot-hub-device-provisioning-service-features/

NEW QUESTION 2

You plan to deploy an Azure IoT hub. The IoT hub must support the following:
Three Azure IoT Edge devices 2,500 IoT devices
Each IoT device will spend a 6 KB message every five seconds.
You need to size the IoT hub to support the devices. The solution must minimize costs. What should you choose?

• A. one unit of the S1 tier
• B. one unit of the B2 tier
• C. one unit of the B1 tier
• D. one unit of the S3 tier

Answer: D

Explanation:
\ 2500* 6 KB * 12 = 180,000 KB/minute = 180 MB/Minute.
B3, S3 can handle up to 814 MB/minute per unit. Incorrect Answers:
A, C: B1, S1 can only handle up to 1111 KB/minute per unit B: B2, S2 can only handle up to 16 MB/minute per unit.
Reference:
https://docs.microsoft.com/en-us/azure/iot-hub/iot-hub-scaling

NEW QUESTION 3

What should you do to identify the cause of the connectivity issues?

• A. Send cloud-to-device messages to the IoT devices.
• B. Use the heartbeat pattern to send messages from the IoT devices to iothub1.
• C. Monitor the connection status of the device twin by using an Azure function.
• D. Enable the collection of the Connections diagnostics logs and set up alerts for the connected devices count metric.

Answer: D

Explanation:
Scenario: You discover connectivity issues between the IoT gateway devices and iothub1, which cause IoT devices to lose connectivity and messages.

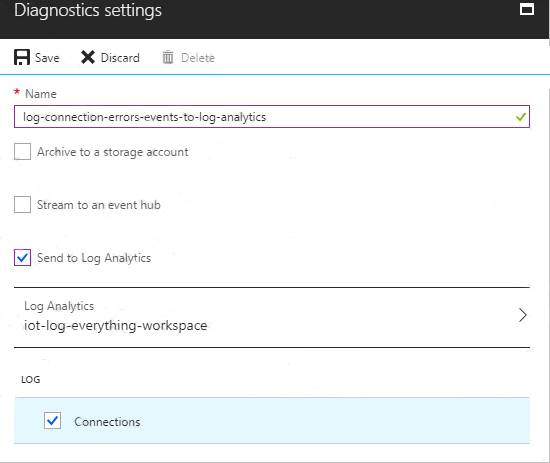

To log device connection events and errors, turn on diagnostics for IoT Hub. We recommend turning on these logs as early as possible, because if diagnostic logs aren't enabled, when device disconnects occur, you won't have any information to troubleshoot the problem with.
Step 1:
*1.Sign in to the Azure portal.
*2.Browse to your IoT hub.
*3.Select Diagnostics settings.
*4.Select Turn on diagnostics.
*5. Enable Connections logs to be collected.
*6. For easier analysis, turn on Send to Log Analytics (see pricing).
Step 2:
Set up alerts for device disconnect at scale
To get alerts when devices disconnect, configure alerts on the Connected devices (preview) metric. Reference:
https://docs.microsoft.com/bs-cyrl-ba/azure/iot-hub/iot-hub-troubleshoot-connectivity

NEW QUESTION 4

Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.
After you answer a question in this question, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.
You have devices that connect to an Azure IoT hub. Each device has a fixed GPS location that includes latitude and longitude.
You discover that a device entry in the identity registry of the IoT hub is missing the GPS location.
You need to configure the GPS location for the device entry. The solution must prevent the changes from being propagated to the physical device.
Solution: You use an Azure policy to apply tags to a resource group. Does the solution meet the goal?

• A. Yes
• B. No

Answer: B

Explanation:
Instead add the desired properties to the device twin.
Note: Device Twins are used to synchronize state between an IoT solution's cloud service and its devices. Each device's twin exposes a set of desired properties and reported properties. The cloud service populates the desired properties with values it wishes to send to the device. When a device connects it requests and/or subscribes for its desired properties and acts on them.
Reference:
https://azure.microsoft.com/sv-se/blog/deep-dive-into-azure-iot-hub-notifications-and-device-twin/

NEW QUESTION 5

You have an Azure IoT solution that includes an Azure IoT hub, 100 Azure IoT Edge devices, and 500 leaf devices.
You need to perform a key rotation across the devices.
Which three types of entities should you update? Each Answer presents part of the solution. NOTE: Each correct selection is worth one point.

• A. the $edgeHub module identity
• B. the $edgeAgent module identity
• C. the leaf module identities
• D. the IoT Edge device identities
• E. the iothubowner policy credentials
• F. the leaf device identities

Answer: ADF

Explanation:
To get authorization to connect to IoT Hub, devices and services must send security tokens signed with either a shared access or symmetric key. These keys are stored with a device identity in the identity registry.
An IoT Hub identity registry can be accessed like a dictionary, by using the deviceId or moduleId as the key. Reference:
https://docs.microsoft.com/bs-latn-ba/azure/iot-dps/how-to-control-access https://docs.microsoft.com/en-us/azure/iot-hub/iot-hub-devguide-identity-registry

NEW QUESTION 6

Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.
After you answer a question in this question, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.
You have an Azure IoT solution that includes an Azure IoT hub, a Device Provisioning Service instance, and 1,000 connected IoT devices.
All the IoT devices are provisioned automatically by using one enrollment group. You need to temporarily disable the IoT devices from the connecting to the IoT hub.
Solution: From the IoT hub, you change the credentials for the shared access policy of the IoT devices. Does the solution meet the goal?

• A. Yes
• B. No

Answer: B

Explanation:
Reference:
https://docs.microsoft.com/bs-latn-ba/azure/iot-dps/how-to-unprovision-devices

NEW QUESTION 7

You develop a custom Azure IoT Edge module named temperature-module.
You publish temperature-module to a private container registry named mycr.azurecr.io
You need to build a deployment manifest for the IoT Edge device that will run temperature-module. Which three container images should you define in the manifest? Each correct answer presents part of the
solution.
NOTE: Each correct selection is worth one point.

• A. mcr.microsoft.com/azureiotedge-simulated-temperature-sensor:1.0
• B. mcr.microsoft.com/azureiotedge-agent:1.0
• C. mcr.microsoft.com/iotedgedev:2.0
• D. mycr.azurecr.io/temperature-module:latest
• E. mcr.microsoft.com/azureiotedge-hub:1.0

Answer: BDE

Explanation:
Each IoT Edge device runs at least two modules: $edgeAgent and $edgeHub, which are part of the IoT Edge runtime. IoT Edge device can run multiple additional modules for any number of processes. Use a deployment manifest to tell your device which modules to install and how to configure them to work together.
Reference:
https://docs.microsoft.com/en-us/azure/iot-edge/module-composition

NEW QUESTION 8

You have an Azure IoT solution that includes an Azure IoT hub.

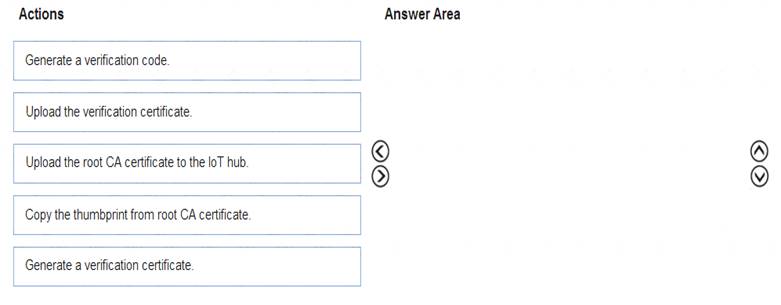

You receive a root certification authority (CA) certificate from the security department at your company. You need to configure the IoT hub to use the root CA certificate.
Which four actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:
Reference:
https://docs.microsoft.com/bs-latn-ba/azure/iot-hub/iot-hub-security-x509-get-started

NEW QUESTION 9

You have an Azure IoT solution that includes several Azure IoT hubs.
A new alerting feature was recently added to the IoT devices. The feature uses a new device twin reported property named alertCondition.
You need to send alerts to an Azure Service Bus queue named MessageAlerts. The alerts must include alertCondition and the name of the IoT hub.
Which two actions should you perform? Each Answer presents part of the solution. NOTE: Each correct selection is worth one point.

• A. Configure File upload for each IoT hu
• B. Configure the device to send a file to an Azure Storage container that contains the device name and status message.
• C. Add the following message enrichments: Name = iotHubNameValue = $twin.tag.location Endpoint = MessageAlert
• D. Create an IoT Hub routing rule that has a data source of Device Twin Change Events and select the endpoint for MessageAlerts.
• E. Add the following message enrichments: Name = iotHubName Value = $iothubnameEndpoint = MessageAlert
• F. Create an IoT Hub routing rule that has a data source of Device Telemetry Messages and select the endpoint for MessageAlerts.

Answer: BD

Explanation:
B: Message enrichments is the ability of the IoT Hub to stamp messages with additional information before the messages are sent to the designated endpoint. One reason to use message enrichments is to include data that can be used to simplify downstream processing. For example, enriching device telemetry messages with
a device twin tag can reduce load on customers to make device twin API calls for this information. D: Applying enrichments
The messages can come from any data source supported by IoT Hub message routing, including the following examples:
-->device twin change notifications -- changes in the device twin device telemetry, such as temperature or pressure
device life-cycle events, such as when the device is created or deleted Reference:
https://docs.microsoft.com/en-us/azure/iot-hub/iot-hub-message-enrichments-overview

NEW QUESTION 10

You have 20 devices that connect to an Azure IoT hub.

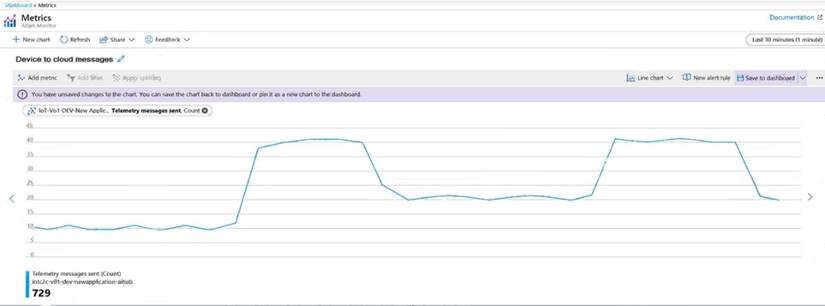

You open Azure Monitor as shown in the exhibit. (Click the Exhibit tab.)

You discover that telemetry is not being received from five IoT devices.
You need to identify the names of the devices that are not generating telemetry and visualize the data. What should you do first?

• A. Add the Number of throttling errors metric and archive the logs to an Azure storage account.
• B. Configure diagnostics for Routes and stream the logs to Azure Event Hubs.
• C. Add the Telemetry messages sent metric and archieve the logs to an Azure Storage account.
• D. Configure diagnostics for Connections and send the logs to Azure Log Analytics.

Answer: D

Explanation:
To log device connection events and errors, turn on diagnostics for IoT Hub. We recommend turning on these logs as early as possible, because if diagnostic logs aren't enabled, when device disconnects occur, you won't have any information to troubleshoot the problem with.
Sign in to the Azure portal.
Browse to your IoT hub.
Select Diagnostics settings.
Select Turn on diagnostics.
Enable Connections logs to be collected.
For easier analysis, turn on Send to Log Analytics

Reference:
https://docs.microsoft.com/bs-cyrl-ba/azure/Iot-hub/iot-hub-troubleshoot-connectivity

NEW QUESTION 11

You have 10,000 IoT devices that connect to an Azure IoT hub. The devices do not support over-the-air (OTA) updates.
You need to decommission 1,000 devices. The solution must prevent connections and autoenrollment for the decommissioned devices.
Which two actions should you perform? Each correct answer presents part of the solution. NOTE: Each correct selection is worth one point.

• A. Update the connectionState device twin property on all the devices.
• B. Blacklist the X.509 root certification authority (CA) certificate for the enrollment group.
• C. Delete the enrollment entry for the devices.
• D. Remove the identity certificate from the hardware security module (HSM) of the devices.
• E. Delete the device identity from the device registry of the IoT hub.

Answer: BC

Explanation:
B: X.509 certificates are typically arranged in a certificate chain of trust. If a certificate at any stage in a chain becomes compromised, trust is broken. The certificate must be blacklisted to prevent Device Provisioning Service from provisioning devices downstream in any chain that contains that certificate.
C: Individual enrollments apply to a single device and can use either X.509 certificates or SAS tokens (in a real or virtual TPM) as the attestation mechanism. (Devices that use SAS tokens as their attestation mechanism can be provisioned only through an individual enrollment.) To blacklist a device that has an individual enrollment, you can either disable or delete its enrollment entry.
To blacklist a device that has an individual enrollment, you can either disable or delete its enrollment entry. Reference:
https://docs.microsoft.com/en-us/azure/iot-dps/how-to-revoke-device-access-portal

NEW QUESTION 12

You have an Azure IoT hub that uses a Device Provisioning Service instance.
You create a new individual device enrollment that uses symmetric key attestation.
Which detail from the enrollment is required to auto provision the device by using the Device Provisioning Service?

• A. the registration ID of the enrollment
• B. the primary key of the enrollment
• C. the device identity of the IoT hub
• D. the hostname of the IoT hub

Answer: C

Explanation:
An enrollment is the record of devices or groups of devices that may register through auto-provisioning. The enrollment record contains information about the device or group of devices, including:
the attestation mechanism used by the device
the optional initial desired configuration desired IoT hub the desired device ID
Note: Azure IoT auto-provisioning can be broken into three phases:
*1. Service configuration - a one-time configuration of the Azure IoT Hub and IoT Hub Device Provisioning Service instances, establishing them and creating linkage between them.
*2. Device enrollment - the process of making the Device Provisioning Service instance aware of the devices that will attempt to register in the future. Enrollment is accomplished by configuring device identity information in the provisioning service, as either an "individual enrollment" for a single device, or a "group enrollment" for multiple devices.
*3. Device registration and configuration Reference:
https://docs.microsoft.com/en-us/azure/iot-dps/concepts-service#enrollment

NEW QUESTION 13

You have an Azure IoT hub.

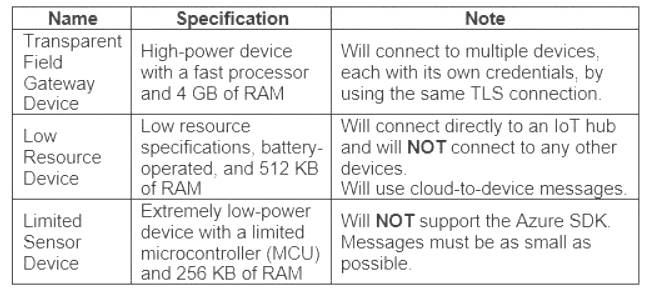

You plan to attach three types of IoT devices as shown in the following table.

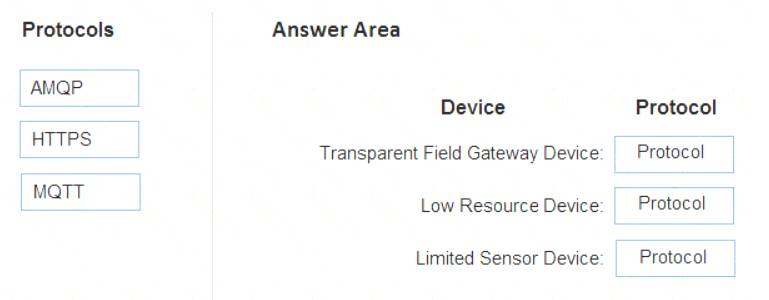

You need to select the appropriate communication protocol for each device.
What should you select? To answer, drag the appropriate protocols to the correct devices. Each protocol may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content.
NOTE: Each correct selection is worth one point.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:
Box 1: AMQP
Use AMQP on field and cloud gateways to take advantage of connection multiplexing across devices. Box 2: MQTT
MQTT is used on all devices that do not require to connect multiple devices (each with its own per-device credentials) over the same TLS connection.
Box 3: HTTPS
Use HTTPS for devices that cannot support other protocols.
https://docs.microsoft.com/en-us/azure/iot-hub/iot-hub-devguide-protocols

NEW QUESTION 14

You have an instance of Azure Time Series Insights and an Azure IoT hub that receives streaming telemetry from IoT devices.

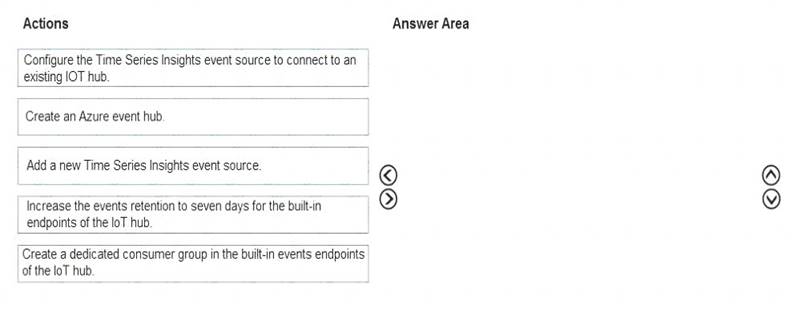

You need to configure Time Series Insights to receive telemetry from the devices.
Which three actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:
Step 1: Create a dedicated consumer group.. Add a consumer group to your IoT hub.
Applications use consumer groups to pull data from Azure IoT Hub. To reliably read data from your IoT hub, provide a dedicated consumer group that's used only by this Time Series Insights environment.
Step 2: Add a new Time Series Insights event source. Add a new event source
Sign in to the Azure portal.
In the left menu, select All resources. Select your Time Series Insights environment.
Under Settings, select Event Sources, and then select Add.
In the New event source pane, for Event source name, enter a name that's unique to this Time Series Insights environment. For example, enter event-stream.
Step 3: Configure the Time Series event source to connect to an existing IOT hub Step 4: For Source, select IoT Hub.
Step 5: Select a value for Import option:
If you already have an IoT hub in one of your subscriptions, select Use IoT Hub from available subscriptions. This option is the easiest approach.
Reference:
https://docs.microsoft.com/en-us/azure/time-series-insights/time-series-insights-how-to-add-an-event-source-iot

NEW QUESTION 15

Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.
After you answer a question in this question, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.
You have devices that connect to an Azure IoT hub. Each device has a fixed GPS location that includes latitude and longitude.
You discover that a device entry in the identity registry of the IoT hub is missing the GPS location.
You need to configure the GPS location for the device entry. The solution must prevent the changes from being propagated to the physical device.
Solution: You add the desired properties to the device twin. Does the solution meet the goal?

• A. Yes
• B. No

Answer: A

Explanation:
Device Twins are used to synchronize state between an IoT solution's cloud service and its devices. Each device's twin exposes a set of desired properties and reported properties. The cloud service populates the desired properties with values it wishes to send to the device. When a device connects it requests and/or subscribes for its desired properties and acts on them.
Reference:
https://azure.microsoft.com/sv-se/blog/deep-dive-into-azure-iot-hub-notifications-and-device-twin/

NEW QUESTION 16

You have an Azure IoT Central application.
You need to connect an IoT device to the application.
Which two settings do you require in IoT Central to configure the device? Each correct answer presents part of the solution.
NOTE: Each correct selection is worth one point.

• A. Group SAS Primary Key
• B. the IoT hub name
• C. Scope ID
• D. Application Name
• E. Device ID

Answer: CE

Explanation:
In your Azure IoT Central application, add a real device to the device template
*1. On the Devices page, select the Environmental sensor device template.
*2. Select + New.
*3. Make sure that Simulated is Off. Then select Create.
Click on the device name, and then select Connect. Make a note of the device connection information on the Device Connection page - ID scope, Device ID, and Primary key. You need these values when you create your device code:

Reference:
https://docs.microsoft.com/bs-cyrl-ba/azure/iot-central/core/tutorial-connect-device-python

NEW QUESTION 17

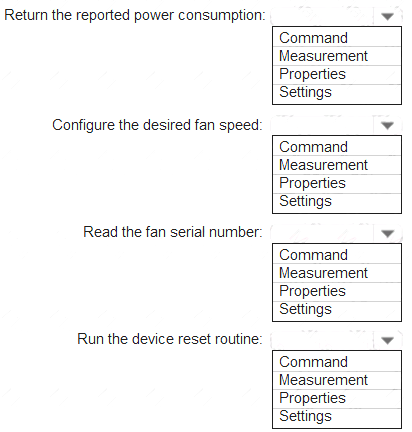

You have an Azure IoT Central application that has a custom device template. You need to configure the device template to support the following activities:
Return the reported power consumption.
Configure the desired fan speed.
Run the device reset routine.
Read the fan serial number.
Which option should you use for each activity? Each correct answer presents part of the solution.
NOTE: Each correct selection is worth one point.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:
Box 1: Measurement
Telemetry/measurement is a stream of values sent from the device, typically from a sensor. For example, a sensor might report the ambient temperature.
Box 2: Property
The template can provide a writeable fan speed property
Properties represent point-in-time values. For example, a device can use a property to report the target temperature it's trying to reach. You can set writeable properties from IoT Central.
Box 3: Settings
Box 4: Command
You can call device commands from IoT Central. Commands optionally pass parameters to the device and receive a response from the device. For example, you can call a command to reboot a device in 10 seconds.
Reference:
https://docs.microsoft.com/en-us/azure/iot-central/core/howto-set-up-template

NEW QUESTION 18

You are troubleshooting an Azure IoT hub.
You discover that some telemetry messages are dropped before they reach downstream processing. You suspect that IoT Hub throttling is the root cause.
Which log in the Diagnostics settings of the IoT hub should you use to capture the throttling error events?

• A. Routes
• B. DeviceTelemetry
• C. Connections
• D. C2DCommands

Answer: B

Explanation:
The device telemetry category tracks errors that occur at the IoT hub and are related to the telemetry pipeline. This category includes errors that occur when sending telemetry events (such as throttling) and receiving telemetry events (such as unauthorized reader). This category cannot catch errors caused by code running on the device itself.
Note: The metric d2c.telemetry.ingress.sendThrottle is the number of throttling errors due to device throughput throttles.
Reference:
https://docs.microsoft.com/en-us/azure/iot-hub/iot-hub-monitor-resource-health

NEW QUESTION 19
......
