AZ-304 Exam - Microsoft Azure Architect Design (beta)

NEW QUESTION 1

You are developing a web application that provides streaming video to users. You configure the application to use continuous integration and deployment.
The app must be highly available and provide a continuous streaming experience for users.
You need to recommend a solution that allows the application to store data in a geographical location that is closest to the user.
What should you recommend?

• A. Azure App Service Web Apps
• B. Azure App Service Isolated
• C. Azure Redis Cache
• D. Azure Content Delivery Network (CDN)

Answer: D

Explanation:
Azure Content Delivery Network (CDN) is a global CDN solution for delivering high-bandwidth content. It can be hosted in Azure or any other location. With Azure CDN, you can cache static objects loaded from Azure Blob storage, a web application, or any publicly accessible web server, by using the closest point of presence (POP) server. Azure CDN can also accelerate dynamic content, which cannot be cached, by leveraging various network and routing optimizations.
References:
https://docs.microsoft.com/en-in/azure/cdn/

NEW QUESTION 2

You have 70 TB of files on your on-premises file server.
You need to recommend solution for importing data to Azure. The solution must minimize cost. What Azure service should you recommend?

• A. Azure StorSimple
• B. Azure Batch
• C. Azure Data Box
• D. Azure Stack

Answer: C

Explanation:
Microsoft has engineered an extremely powerful solution that helps customers get their data to the Azure public cloud in a cost-effective, secure, and efficient manner with powerful Azure and machine learning at play. The solution is called Data Box.
Data Box and is in general availability status. It is a rugged device that allows organizations to have 100 TB of capacity on which to copy their data and then send it to be transferred to Azure.
Reference:
https://www.vembu.com/blog/what-is-microsoft-azure-data-box-disk-edge-heavy-gateway-overview/

NEW QUESTION 3

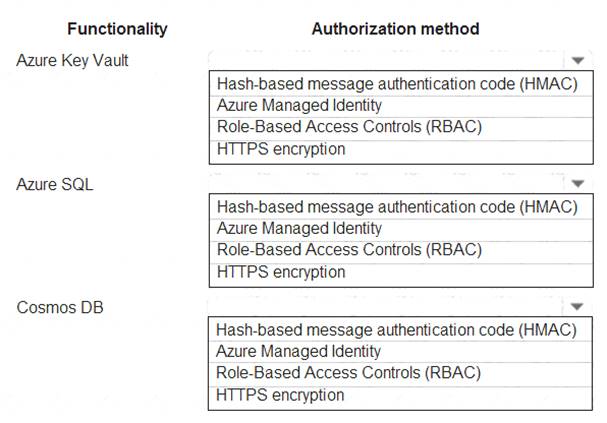

You are building an application that will run in a virtual machine (VM). The application will use Azure Managed Identity.
The application uses Azure Key Vault, Azure SQL Database, and Azure Cosmos DB. You need to ensure the application can use secure credentials to access these services.
Which authentication method should you recommend? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:
Note: Managed identities for Azure resources is the new name for the service formerly known as Managed
Service Identity (MSI). Reference:
https://docs.microsoft.com/en-us/azure/active-directory/managed-identities-azure-resources/overview

NEW QUESTION 4

Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.
After you answer a question in this section, you will NOT be able to return to it As a result, these questions will not appear In the review screen.
You have an on-premises Hyper-V cluster that hosts 20 virtual machines. Some virtual machines run Windows Server 2016 and some run Linux.
You plan to migrate the virtual machines to an Azure subscription.
You need to recommend a solution to replicate the disks of the virtual machines to Azure. The solution must ensure that the virtual machines remain available during the migration of the disks.
Solution: You recommend implementing an Azure Storage account and then running AzCopy. Does this meet the goal?

• A. Yes
• B. NO

Answer: B

Explanation:
AzCopy only copy files, not the disks. Instead use Azure Site Recovery. References:
https://docs.microsoft.com/en-us/azure/site-recovery/site-recovery-overview

NEW QUESTION 5

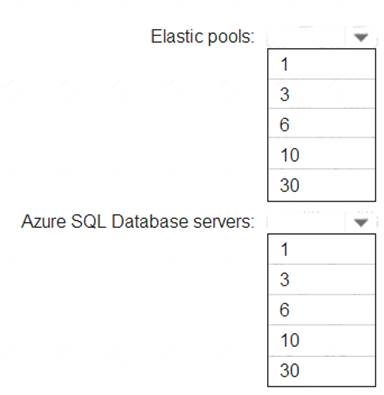

Your company is designing a multi-tenant application that will use elastic pools and Azure SQL databases. The application will be used by 30 customers.
You need to design a storage solution for the application. The solution must meet the following requirements:
Operational costs must be minimized.
All customers must have their own database.
The customer databases will be in one of the following three Azure regions: East US, North Europe, or South Africa North.
What is the minimum number of elastic pools and Azure SQL Database servers required? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:
Box 1: 3
The server, its pools & databases must be in the same Azure region under the same subscription. Box 2: 3
A server can have up to 5000 databases associated to it.
Reference:
https://vincentlauzon.com/2016/12/18/azure-sql-elastic-pool-overview/

NEW QUESTION 6

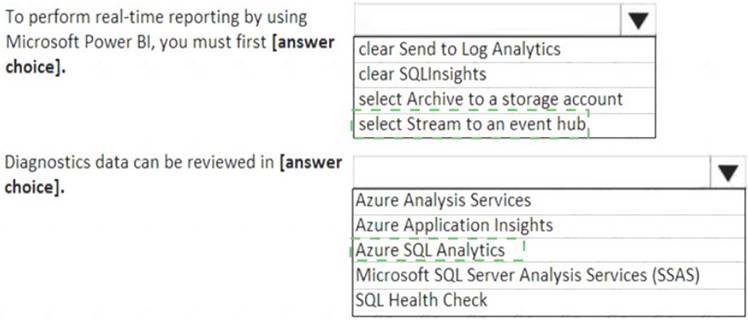

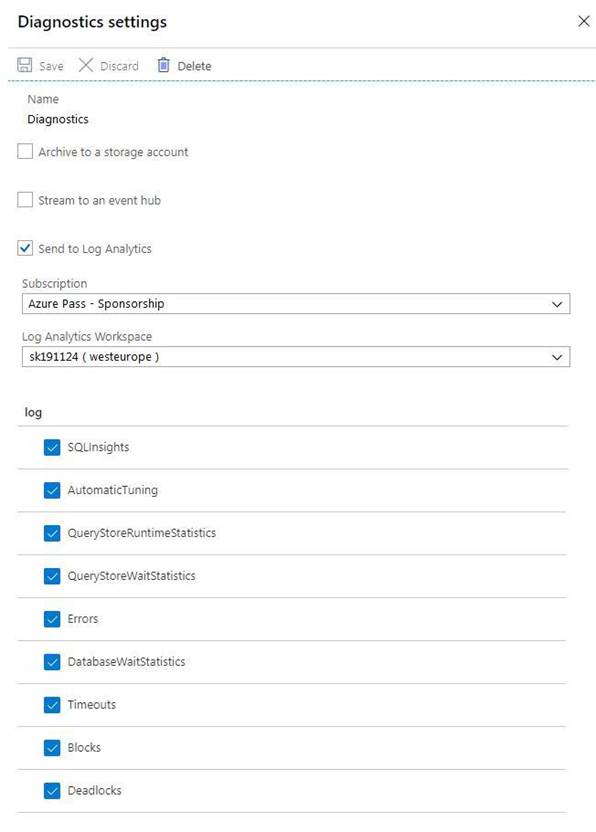

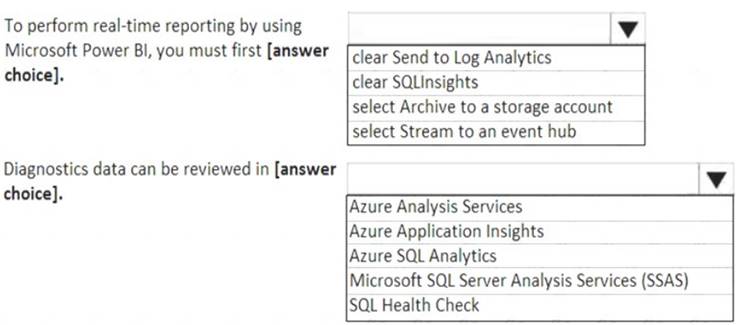

You configure the Diagnostics settings for an Azure SQL database as shown in the following exhibit.

Use the drop-down menus to select the answer choice that completes each statement based on the information presented in the graphic.
NOTE: Each correct selection is worth one point.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:

NEW QUESTION 7

You have an on-premises Hyper-V cluster. The cluster contains Hyper-V hosts that run Windows Server 2016 Datacenter. The hosts are licensed under a Microsoft Enterprise Agreement that has Software Assurance.
The Hyper-V cluster hosts 3 virtual machines that run Windows Server 2012 R2. Each virtual machine runs a different workload. The workloads have predictable consumption patterns.
You plan to replace the virtual machines with Azure virtual machines that run Windows Server 2016. The virtual machines will be sized according to the consumption pattern of each workload.
You need to recommend a solution to minimize the compute costs of the Azure virtual machines.
Which two recommendations should you include in the solution? Each correct answer presents part of the solution.
NOTE: Each correct selection is worth one point.

• A. Purchase Azure Reserved Virtual Machine Instances for the Azure virtual machines
• B. Create a virtual machine scale set that uses autoscaling
• C. Configure a spending limit in the Azure account center
• D. Create a lab in Azure DevTest Labs and place the Azure virtual machines in the lab
• E. Activate Azure Hybrid Benefit for the Azure virtual machines

Answer: AE

Explanation:
Reference:
https://azure.microsoft.com/en-us/pricing/reserved-vm-instances/ https://docs.microsoft.com/en-us/azure/virtual-machines/windows/hybrid-use-benefit-licensing

NEW QUESTION 8

You are designing a message application that will run on an on-premises Ubuntu virtual machine. The application will use Azure Storage queues.
You need to recommend a processing solution for the application to interact with the storage queues. The solution must meet the following requirements:
Create and delete queues daily.
Be scheduled by using a CRON job.
Upload messages every five minutes.
What should developers use to interact with the queues?

• A. Azure CLI
• B. AzCopy
• C. Azure Data Factory
• D. .NET Core

Answer: D

Explanation:
Reference:
https://docs.microsoft.com/en-us/azure/storage/queues/storage-tutorial-queues

NEW QUESTION 9

You have an Azure subscription that contains 100 virtual machines.
You plan to design a data protection strategy to encrypt the virtual disks.
You need to recommend a solution to encrypt the disks by using Azure Disk Encryption. The solution must provide the ability to encrypt operating system disks and data disks.
What should you include in the recommendation?

• A. a passphrase
• B. a certificate
• C. a key
• D. a secret

Answer: C

Explanation:
For enhanced virtual machine (VM) security and compliance, virtual disks in Azure can be encrypted. Disks are encrypted by using cryptographic keys that are secured in an Azure Key Vault. You control these cryptographic keys and can audit their use.
Reference:
https://docs.microsoft.com/en-us/azure/virtual-machines/windows/encrypt-disks

NEW QUESTION 10

Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution. while others might not have a correct solution.
After you answer a question In this section, you will NOT be able to return to it As a result these questions will not appear In the review screen.
You have an on-premises Hyper-V cluster that hosts 20 virtual machines Some virtual machines run Windows Server 2016 and some run Linux
You plan to morale the virtual machine? to an Azure subscription
You need to recommend 9 solution 10 replicate the disks of the virtual machines to Azure. The solution must ensure that the virtual machines remain available during the migration of the disks.
Solution: You recommend implementing a Recovery Services vault and then using Azure Site Recovery. Dees this meet the goal?

• A. Yes
• B. No

Answer: A

Explanation:
Site Recovery can replicate on-premises VMware VMs, Hyper-V VMs, physical servers (Windows and Linux), Azure Stack VMs to Azure.
Note: Site Recovery helps ensure business continuity by keeping business apps and workloads running during outages. Site Recovery replicates workloads running on physical and virtual machines (VMs) from a primary site to a secondary location. When an outage occurs at your primary site, you fail over to secondary location, and access apps from there. After the primary location is running again, you can fail back to it.
References:
https://docs.microsoft.com/en-us/azure/site-recovery/site-recovery-overview

NEW QUESTION 11

Note: This question Is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.
After you answer a question In this section, you will NOT be able to return to It As a result, these questions will not appear In the review screen.
You have an on-premises Hyper-V cluster that hosts 20 virtual machines. Some virtual machines run Windows Server 2016 and some run Linux.
You plan to migrate the virtual machines to an Azure subscription.
You need to recommend a solution to replicate the disks of the virtual machines to Azure. The solution must ensure that the virtual machines remain available during the migration of the disks.
Solution: You recommend implementing an Azure Storage account that has a file service and a blob service, and then using the Data Migration Assistant
Does this meet the goal?

• A. Yes
• B. No

Answer: B

Explanation:
Data Migration Assistant is used to migrate SQL databases. Instead use Azure Site Recovery.
References:
https://docs.microsoft.com/en-us/azure/site-recovery/site-recovery-overview

NEW QUESTION 12

You need to recommend a solution to meet the database retention requirement. What should you recommend?

• A. Configure a long-term retention policy for the database.
• B. Configure Azure Site Recovery.
• C. Configure geo replication of the database.
• D. Use automatic Azure SQL Database backups.

Answer: A

NEW QUESTION 13

You need to design a solution that will execute custom C# code in response to an event routed to Azure Event Grid. The solution must meet the following requirements:
The executed code must be able to access the private IP address of a Microsoft SQL Server instance that runs on an Azure virtual machine.
Costs must be minimized.
What should you include in the solution?

• A. Azure Logic Apps in the integrated service environment
• B. Azure Functions in the Dedicated plan and the Basic Azure App Service plan
• C. Azure Logic Apps in the Consumption plan
• D. Azure Functions in the Consumption plan

Answer: D

Explanation:
When you create a function app in Azure, you must choose a hosting plan for your app. There are three basic hosting plans available for Azure Functions: Consumption plan, Premium plan, and Dedicated (App Service) plan.
For the Consumption plan, you don't have to pay for idle VMs or reserve capacity in advance. Connect to private endpoints with Azure Functions
As enterprises continue to adopt serverless (and Platform-as-a-Service, or PaaS) solutions, they often need a way to integrate with existing resources on a virtual network. These existing resources could be databases, file storage, message queues or event streams, or REST APIs.
Reference:
https://docs.microsoft.com/en-us/azure/azure-functions/functions-scale https://techcommunity.microsoft.com/t5/azure-functions/connect-to-private-endpoints-with-azure-functions/ba-p

NEW QUESTION 14

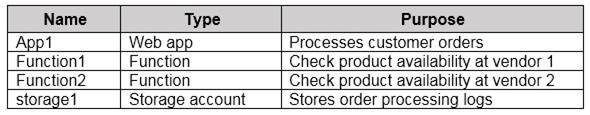

You are designing an order processing system in Azure that will contain the Azure resources shown in the following table.

The order processing system will have the following transaction flow:
A customer will place an order by using App1.
When the order is received, App1 will generate a message to check for product availability at vendor 1 and vendor 2.
An integration component will process the message, and then trigger either Function1 or Function2 depending on the type of order.
Once a vendor confirms the product availability, a status message for App1 will be generated by Function1 or Function2.
All the steps of the transaction will be logged to storage1.
Which type of resource should you recommend for the integration component? D18912E1457D5D1DDCBD40AB3BF70D5D
Which type of resource should you recommend for the integration component?

• A. an Azure Data Factory pipeline
• B. an Azure Service Bus queue
• C. an Azure Event Grid domain
• D. an Azure Event Hubs capture

Answer: A

Explanation:
A data factory can have one or more pipelines. A pipeline is a logical grouping of activities that together perform a task.
The activities in a pipeline define actions to perform on your data.
Data Factory has three groupings of activities: data movement activities, data transformation activities, and control activities.
Azure Functions is now integrated with Azure Data Factory, allowing you to run an Azure function as a step in your data factory pipelines.
Reference:
https://docs.microsoft.com/en-us/azure/data-factory/concepts-pipelines-activities

NEW QUESTION 15

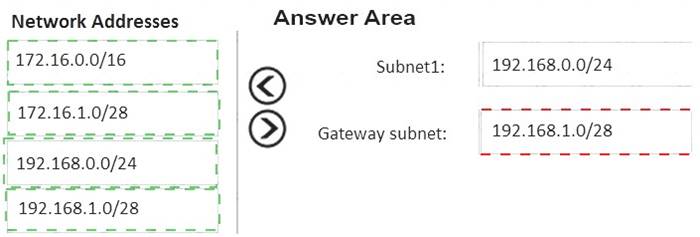

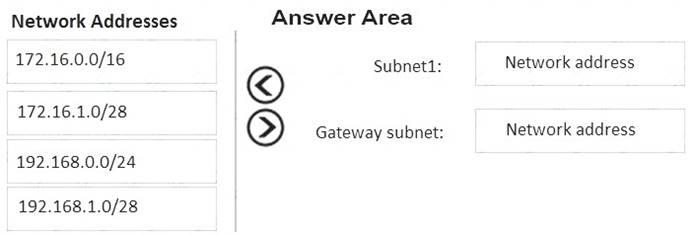

You have an on-premises network that uses on IP address space of 172.16.0.0/16 You plan to deploy 25 virtual machines to a new azure subscription.
You identity the following technical requirements.
All Azure virtual machines must be placed on the same subnet subnet1.
All the Azure virtual machines must be able to communicate with all on premises severs.
The servers must be able to communicate between the on-premises network and Azure by using a site to site VPN.
You need to recommend a subnet design that meets the technical requirements.
What should you include in the recommendation? To answer, drag the appropriate network addresses to the correct subnet. Each network address may be used once, more than once or not at all. You may need to drag the split bar between panes or scroll to view content.
NOTE: Each correct selection is worth one point.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:

NEW QUESTION 16

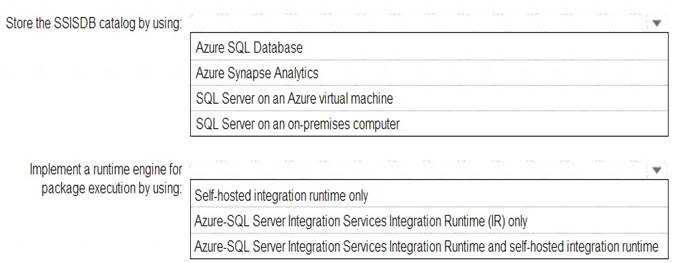

You have an existing implementation of Microsoft SQL Server Integration Services (SSIS) packages stored in an SSISDB catalog on your on-premises network. The on-premises network does not have hybrid connectivity to Azure by using Site-to-Site VPN or ExpressRoute.
You want to migrate the packages to Azure Data Factory.
You need to recommend a solution that facilitates the migration while minimizing changes to the existing packages. The solution must minimize costs.
What should you recommend? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:
Box 1: Azure SQL database
You can't create the SSISDB Catalog database on Azure SQL Database at this time independently of creating the Azure-SSIS Integration Runtime in Azure Data Factory. The Azure-SSIS IR is the runtime environment that runs SSIS packages on Azure.
Box 2: Azure-SQL Server Integration Service Integration Runtime and self-hosted integration runtime The Integration Runtime (IR) is the compute infrastructure used by Azure Data Factory to provide data
integration capabilities across different network environments. Azure-SSIS Integration Runtime (IR) in Azure Data Factory (ADF) supports running SSIS packages.
Self-hosted integration runtime can be used for data movement in this scenario. Reference:
https://docs.microsoft.com/en-us/azure/data-factory/create-azure-integration-runtime https://docs.microsoft.com/en-us/sql/integration-services/lift-shift/ssis-azure-connect-to-catalog-database

NEW QUESTION 17

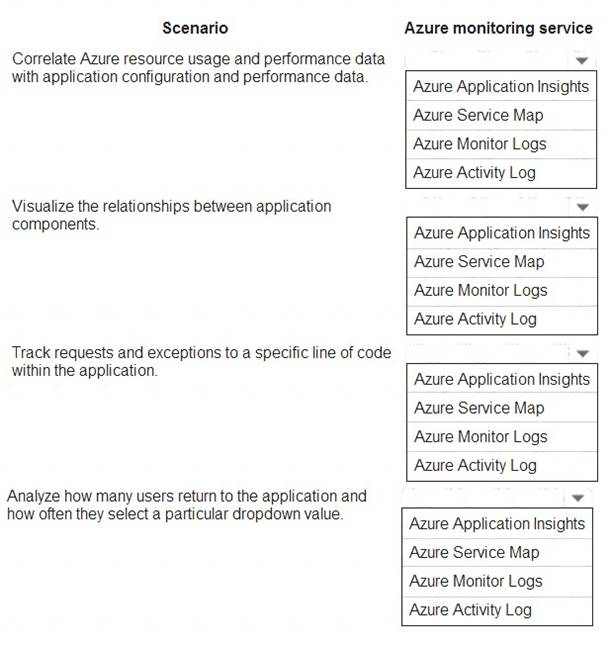

You have an Azure App Service Web App that includes Azure Blob storage and an Azure SQL Database instance. The application is instrumented by using the Application Insights SDK.
You need to design a monitoring solution for the web app.
Which Azure monitoring services should you use? To answer, select the appropriate Azure monitoring services in the answer area.
NOTE: Each correct selection is worth one point.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:
* 1. Azure Monitor Log
* 2. Azure Application Insights (application map in App insights)
* 3. Azure Application Insights
* 4. Azure Application insights
https://docs.microsoft.com/en-us/azure/azure-monitor/app/app-map?tabs=net https://docs.microsoft.com/en-us/azure/azure-monitor/insights/service-map

NEW QUESTION 18

You have 100 servers that run Windows Server 2012 R2 and host Microsoft SQL Server 2012 R2 instances. The instances host databases that have the following characteristics:
The largest database is currently 3 TB. None of the databases will ever exceed 4 TB.
Stored procedures are implemented by using CLR.
You plan to move all the data from SQL Server to Azure.
You need to recommend an Azure service to host the databases. The solution must meet the following requirements:
Whenever possible, minimize management overhead for the migrated databases.
Minimize the number of database changes required to facilitate the migration.
Ensure that users can authenticate by using their Active Directory credentials.
What should you include in the recommendation?

• A. Azure SQL Database single databases
• B. Azure SQL Database Managed Instance
• C. Azure SQL Database elastic pools
• D. SQL Server 2016 on Azure virtual machines

Answer: B

Explanation:
References:
https://docs.microsoft.com/en-us/azure/sql-database/sql-database-managed-instance

NEW QUESTION 19

You have an Azure subscription that contains resources in three Azure regions. You need to implement Azure Key Vault to meet the following requirements: D18912E1457D5D1DDCBD40AB3BF70D5D
In the event of a regional outage, all keys must be readable.
All the resources in the subscription must be able to access Key Vault.
The number of Key Vault resources to be deployed and managed must be minimized. How many instances of Key Vault should you implement?

• A. 1
• B. 2
• C. 3
• D. 6

Answer: A

Explanation:
The contents of your key vault are replicated within the region and to a secondary region at least 150 miles away but within the same geography. This maintains high durability of your keys and secrets. See the Azure paired regions document for details on specific region pairs.
Example: Secrets that must be shared by your application in both Europe West and Europe North. Minimize these as much as you can. Put these in a key vault in either of the two regions. Use the same URI from both regions. Microsoft will fail over the Key Vault service internally.
Reference:
https://docs.microsoft.com/en-us/azure/key-vault/general/disaster-recovery-guidance

NEW QUESTION 20

You are planning to deploy an application named App1 that will run in containers on Azure Kubernetes Service (AKS) clusters. The AKS clusters will be distributed across four Azure regions.
You need to recommend a storage solution for App1. Updated container images must be replicated automatically to all the AKS clusters.
Which storage solution should you recommend?

• A. Premium SKU Azure Container Registry
• B. Azure Content Delivery Network (CDN)
• C. geo redundant storage (GRS) accounts
• D. Azure Cache for Redis

Answer: A

Explanation:
Enable geo-replication for container images.
Best practice: Store your container images in Azure Container Registry and geo-replicate the registry to each AKS region.
To deploy and run your applications in AKS, you need a way to store and pull the container images. Container Registry integrates with AKS, so it can securely store your container images or Helm charts. Container Registry supports multimaster geo-replication to automatically replicate your images to Azure regions around the world.
Geo-replication is a feature of Premium SKU container registries. Note:
When you use Container Registry geo-replication to pull images from the same region, the results are: Faster: You pull images from high-speed, low-latency network connections within the same Azure region.
More reliable: If a region is unavailable, your AKS cluster pulls the images from an available container registry.
Cheaper: There's no network egress charge between datacenters. Reference:
https://docs.microsoft.com/en-us/azure/aks/operator-best-practices-multi-region

NEW QUESTION 21

You are evaluating the components of the migration to Azure that require you to provision an Azure Storage account.

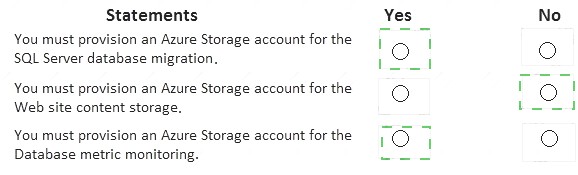

For each of the following statements, select Yes if the statement is true. Otherwise, select No. NOTE: Each correct selection is worth one point.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:

NEW QUESTION 22
......
