MCPA-Level-1 Exam - MuleSoft Certified Platform Architect - Level 1

NEW QUESTION 1
What is a key performance indicator (KPI) that measures the success of a typical C4E that is immediately apparent in responses from the Anypoint Platform APIs?

• A. The number of production outage incidents reported in the last 24 hours
• B. The number of API implementations that have a publicly accessible HTTP endpoint and are being managed by Anypoint Platform
• C. The fraction of API implementations deployed manually relative to those deployed using a CI/CD tool
• D. The number of API specifications in RAML or OAS format published to Anypoint Exchange

Answer: D

Explanation:
Correct Answer
The number of API specifications in RAML or OAS format published to Anypoint Exchange
*****************************************
>> The success of C4E always depends on their contribution to the number of reusable assets that they have helped to build and publish to Anypoint Exchange.
>> It is NOT due to any factors w.r.t # of outages, Manual vs CI/CD deployments or Publicly accessible HTTP endpoints
>> Anypoint Platform APIs helps us to quickly run and get the number of published RAML/OAS assets to Anypoint Exchange. This clearly depicts how successful a C4E team is based on number of returned assets in the response.

NEW QUESTION 2
What Anypoint Connectors support transactions?

• A. Database, JMS, VM
• B. Database, 3MS, HTTP
• C. Database, JMS, VM, SFTP
• D. Database, VM, File

Answer: A

NEW QUESTION 3
A company has created a successful enterprise data model (EDM). The company is committed to building an application network by adopting modern APIs as a core enabler of the company's IT operating model. At what API tiers (experience, process, system) should the company require reusing the EDM when designing modern API data models?

• A. At the experience and process tiers
• B. At the experience and system tiers
• C. At the process and system tiers
• D. At the experience, process, and system tiers

Answer: C

Explanation:

Correct Answer
At the process and system tiers
*****************************************
>> Experience Layer APIs are modeled and designed exclusively for the end user's experience. So, the data models of experience layer vary based on the nature and type of such API consumer. For example, Mobile consumers will need light-weight data models to transfer with ease on the wire, where as web-based consumers will need detailed data models to render most of the info on web pages, so on. So, enterprise data models fit for the purpose of canonical models but not of good use for experience APIs.
>> That is why, EDMs should be used extensively in process and system tiers but NOT in experience tier.

NEW QUESTION 4
Once an API Implementation is ready and the API is registered on API Manager, who should request the access to the API on Anypoint Exchange?

• A. None
• B. Both
• C. API Client
• D. API Consumer

Answer: D

Explanation:

Correct Answer
API Consumer
*****************************************
>> API clients are piece of code or programs that use the client credentials of API consumer but does not directly interact with Anypoint Exchange to get the access
>> API consumer is the one who should get registered and request access to API and then API client needs to use those client credentials to hit the APIs
So, API consumer is the one who needs to request access on the API from Anypoint Exchange

NEW QUESTION 5
What is the most performant out-of-the-box solution in Anypoint Platform to track transaction state in an asynchronously executing long-running process implemented as a Mule application deployed to multiple CloudHub workers?

• A. Redis distributed cache
• B. java.util.WeakHashMap
• C. Persistent Object Store
• D. File-based storage

Answer: C

Explanation:
Correct Answer
Persistent Object Store
*****************************************
>> Redis distributed cache is performant but NOT out-of-the-box solution in Anypoint Platform
>> File-storage is neither performant nor out-of-the-box solution in Anypoint Platform
>> java.util.WeakHashMap needs a completely custom implementation of cache from scratch using Java code and is limited to the JVM where it is running. Which means the state in the cache is not worker aware when running on multiple workers. This type of cache is local to the worker. So, this is neither out-of-the-box nor worker-aware among multiple workers on cloudhub. https://www.baeldung.com/java-weakhashmap
>> Persistent Object Store is an out-of-the-box solution provided by Anypoint Platform which is performant as well as worker aware among multiple workers running on CloudHub. https://docs.mulesoft.com/object-store/
So, Persistent Object Store is the right answer.

NEW QUESTION 6

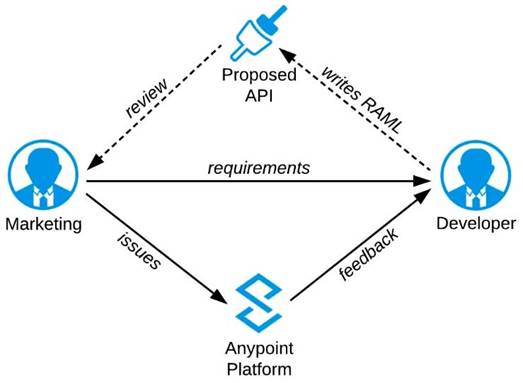

Refer to the exhibit.

A RAML definition has been proposed for a new Promotions Process API, and has been published to
Anypoint Exchange.
The Marketing Department, who will be an important consumer of the Promotions API, has important requirements and expectations that must be met.
What is the most effective way to use Anypoint Platform features to involve the Marketing Department in this early API design phase?

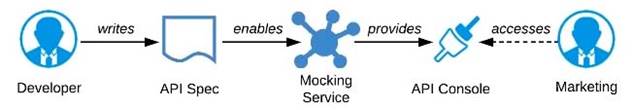

A) Ask the Marketing Department to interact with a mocking implementation of the API using the automatically generated API Console

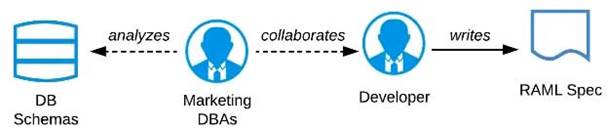

B) Organize a design workshop with the DBAs of the Marketing Department in which the database schema of the Marketing IT systems is translated into RAML

C) Use Anypoint Studio to Implement the API as a Mule application, then deploy that API implementation to CloudHub and ask the Marketing Department to interact with it

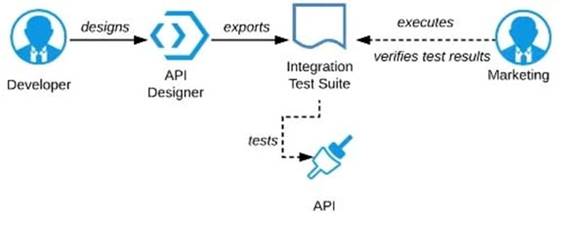

D) Export an integration test suite from API designer and have the Marketing Department execute the tests In that suite to ensure they pass

• A. Option A
• B. Option B
• C. Option C
• D. Option D

Answer: A

Explanation:
Correct Answer
Ask the Marketing Department to interact with a mocking implementation of the API using the automatically generated API Console.
***************************************** As per MuleSoft's IT Operating Model:
>> API consumers need NOT wait until the full API implementation is ready.
>> NO technical test-suites needs to be shared with end users to interact with APIs.
>> Anypoint Platform offers a mocking capability on all the published API specifications to Anypoint Exchange which also will be rich in documentation covering all details of API functionalities and working nature.
>> No needs of arranging days of workshops with end users for feedback.
API consumers can use Anypoint Exchange features on the platform and interact with the API using its mocking feature. The feedback can be shared quickly on the same to incorporate any changes.

NEW QUESTION 7
Which layer in the API-led connectivity focuses on unlocking key systems, legacy systems, data sources etc and exposes the functionality?

• A. Experience Layer
• B. Process Layer
• C. System Layer

Answer: C

Explanation:
Correct Answer
System Layer

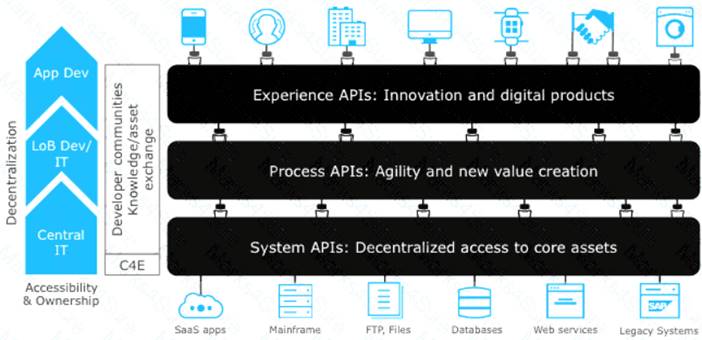

The APIs used in an API-led approach to connectivity fall into three categories:
System APIs – these usually access the core systems of record and provide a means of insulating the user from the complexity or any changes to the underlying systems. Once built, many users, can access data without any need to learn the underlying systems and can reuse these APIs in multiple projects.
Process APIs – These APIs interact with and shape data within a single system or across systems (breaking down data silos) and are created here without a dependence on the source systems from which that data originates, as well as the target channels through which that data is delivered.
Experience APIs – Experience APIs are the means by which data can be reconfigured so that it is most easily consumed by its intended audience, all from a common data source, rather than setting up separate
point-to-point integrations for each channel. An Experience API is usually created with API-first design principles where the API is designed for the specific user experience in mind.

NEW QUESTION 8
A retail company is using an Order API to accept new orders. The Order API uses a JMS queue to submit orders to a backend order management service. The normal load for orders is being handled using two (2) CloudHub workers, each configured with 0.2 vCore. The CPU load of each CloudHub worker normally runs well below 70%. However, several times during the year the Order API gets four times (4x) the average number of orders. This causes the CloudHub worker CPU load to exceed 90% and the order submission time to exceed 30 seconds. The cause, however, is NOT the backend order management service, which still responds fast enough to meet the response SLA for the Order API. What is the MOST resource-efficient way to configure the Mule application's CloudHub deployment to help the company cope with this performance challenge?

• A. Permanently increase the size of each of the two (2) CloudHub workers by at least four times (4x) to one(1) vCore
• B. Use a vertical CloudHub autoscaling policy that triggers on CPU utilization greater than 70%
• C. Permanently increase the number of CloudHub workers by four times (4x) to eight (8) CloudHub workers
• D. Use a horizontal CloudHub autoscaling policy that triggers on CPU utilization greater than 70%

Answer: D

Explanation:

Correct Answer
Use a horizontal CloudHub autoscaling policy that triggers on CPU utilization greater than 70%
*****************************************
The scenario in the question is very clearly stating that the usual traffic in the year is pretty well handled by the existing worker configuration with CPU running well below 70%. The problem occurs only "sometimes" occasionally when there is spike in the number of orders coming in.
So, based on above, We neither need to permanently increase the size of each worker nor need to permanently increase the number of workers. This is unnecessary as other than those "occasional" times the resources are idle and wasted.
We have two options left now. Either to use horizontal Cloudhub autoscaling policy to automatically increase the number of workers or to use vertical Cloudhub autoscaling policy to automatically increase the vCore size of each worker.
Here, we need to take two things into consideration:
* 1. CPU
* 2. Order Submission Rate to JMS Queue
>> From CPU perspective, both the options (horizontal and vertical scaling) solves the issue. Both helps to bring down the usage below 90%.
>> However, If we go with Vertical Scaling, then from Order Submission Rate perspective, as the application is still being load balanced with two workers only, there may not be much improvement in the incoming request processing rate and order submission rate to JMS queue. The throughput would be same as before. Only CPU utilization comes down.
>> But, if we go with Horizontal Scaling, it will spawn new workers and adds extra hand to increase the throughput as more workers are being load balanced now. This way we can address both CPU and Order Submission rate.
Hence, Horizontal CloudHub Autoscaling policy is the right and best answer.

NEW QUESTION 9
A company uses a hybrid Anypoint Platform deployment model that combines the EU control plane with customer-hosted Mule runtimes. After successfully testing a Mule API implementation in the Staging environment, the Mule API implementation is set with environment-specific properties and must be promoted to the Production environment. What is a way that MuleSoft recommends to configure the Mule API implementation and automate its promotion to the Production environment?

• A. Bundle properties files for each environment into the Mule API implementation's deployable archive, then promote the Mule API implementation to the Production environment using Anypoint CLI or the Anypoint Platform REST APIsB.
• B. Modify the Mule API implementation's properties in the API Manager Properties tab, then promote the Mule API implementation to the Production environment using API Manager
• C. Modify the Mule API implementation's properties in Anypoint Exchange, then promote the Mule API implementation to the Production environment using Runtime Manager
• D. Use an API policy to change properties in the Mule API implementation deployed to the Staging environment and another API policy to deploy the Mule API implementation to the Production environment

Answer: A

Explanation:

Correct Answer
Bundle properties files for each environment into the Mule API implementation's deployable archive, then promote the Mule API implementation to the Production environment using Anypoint CLI or the Anypoint Platform REST APIs
*****************************************
>> Anypoint Exchange is for asset discovery and documentation. It has got no provision to modify the properties of Mule API implementations at all.
>> API Manager is for managing API instances, their contracts, policies and SLAs. It has also got no provision to modify the properties of API implementations.
>> API policies are to address Non-functional requirements of APIs and has again got no provision to modify the properties of API implementations.
So, the right way and recommended way to do this as part of development practice is to bundle properties files for each environment into the Mule API implementation and just point and refer to respective file per environment.

NEW QUESTION 10
The implementation of a Process API must change.
What is a valid approach that minimizes the impact of this change on API clients?

• A. Update the RAML definition of the current Process API and notify API client developers by sending them links to the updated RAML definition
• B. Postpone changes until API consumers acknowledge they are ready to migrate to a new Process API or API version
• C. Implement required changes to the Process API implementation so that whenever possible, the Process API's RAML definition remains unchanged
• D. Implement the Process API changes in a new API implementation, and have the old API implementation return an HTTP status code 301 - Moved Permanently to inform API clients they should be calling the new API implementation

Answer: C

Explanation:
Correct Answer
Implement required changes to the Process API implementation so that, whenever possible, the Process API’s RAML definition remains unchanged.
***************************************** Key requirement in the question is:
>> Approach that minimizes the impact of this change on API clients Based on above:
>> Updating the RAML definition would possibly impact the API clients if the changes require any thing mandatory from client side. So, one should try to avoid doing that until really necessary.
>> Implementing the changes as a completely different API and then redirectly the clients with 3xx status code is really upsetting design and heavily impacts the API clients.
>> Organisations and IT cannot simply postpone the changes required until all API consumers acknowledge they are ready to migrate to a new Process API or API version. This is unrealistic and not possible.
The best way to handle the changes always is to implement required changes to the API implementations so that, whenever possible, the API’s RAML definition remains unchanged.

NEW QUESTION 11
Due to a limitation in the backend system, a system API can only handle up to 500 requests per second. What is the best type of API policy to apply to the system API to avoid overloading the backend system?

• A. Rate limiting
• B. HTTP caching
• C. Rate limiting - SLA based
• D. Spike control

Answer: D

Explanation:
Correct Answer
Spike control
*****************************************
>> First things first, HTTP Caching policy is for purposes different than avoiding the backend system from overloading. So this is OUT.
>> Rate Limiting and Throttling/ Spike Control policies are designed to limit API access, but have different intentions.
>> Rate limiting protects an API by applying a hard limit on its access.
>> Throttling/ Spike Control shapes API access by smoothing spikes in traffic. That is why, Spike Control is the right option.

NEW QUESTION 12
A company wants to move its Mule API implementations into production as quickly as possible. To protect access to all Mule application data and metadata, the company requires that all Mule applications be deployed to the company's customer-hosted infrastructure within the corporate firewall. What combination of runtime plane and control plane options meets these project lifecycle goals?

• A. Manually provisioned customer-hosted runtime plane and customer-hosted control plane
• B. MuleSoft-hosted runtime plane and customer-hosted control plane
• C. Manually provisioned customer-hosted runtime plane and MuleSoft-hosted control plane
• D. iPaaS provisioned customer-hosted runtime plane and MuleSoft-hosted control plane

Answer: A

Explanation:
Correct Answer
Manually provisioned customer-hosted runtime plane and customer-hosted control plane
*****************************************
There are two key factors that are to be taken into consideration from the scenario given in the question.
>> Company requires both data and metadata to be resided within the corporate firewall
>> Company would like to go with customer-hosted infrastructure.
Any deployment model that is to deal with the cloud directly or indirectly (Mulesoft-hosted or Customer's own cloud like Azure, AWS) will have to share atleast the metadata.
Application data can be controlled inside firewall by having Mule Runtimes on customer hosted runtime plane. But if we go with Mulsoft-hosted/ Cloud-based control plane, the control plane required atleast some minimum level of metadata to be sent outside the corporate firewall.
As the customer requirement is pretty clear about the data and metadata both to be within the corporate firewall, even though customer wants to move to production as quickly as possible, unfortunately due to the nature of their security requirements, they have no other option but to go with manually provisioned customer-hosted runtime plane and customer-hosted control plane.

NEW QUESTION 13
A REST API is being designed to implement a Mule application.
What standard interface definition language can be used to define REST APIs?

• A. Web Service Definition Language(WSDL)
• B. OpenAPI Specification (OAS)
• C. YAML
• D. AsyncAPI Specification

Answer: B

NEW QUESTION 14
In which layer of API-led connectivity, does the business logic orchestration reside?

• A. System Layer
• B. Experience Layer
• C. Process Layer

Answer: C

Explanation:

Correct Answer
Process Layer
*****************************************
>> Experience layer is dedicated for enrichment of end user experience. This layer is to meet the needs of different API clients/ consumers.
>> System layer is dedicated to APIs which are modular in nature and implement/ expose various individual functionalities of backend systems
>> Process layer is the place where simple or complex business orchestration logic is written by invoking one or many System layer modular APIs
So, Process Layer is the right answer.

NEW QUESTION 15
An API implementation is being designed that must invoke an Order API, which is known to repeatedly experience downtime.
For this reason, a fallback API is to be called when the Order API is unavailable.
What approach to designing the invocation of the fallback API provides the best resilience?

• A. Search Anypoint Exchange for a suitable existing fallback API, and then implement invocations to this fallback API in addition to the Order API
• B. Create a separate entry for the Order API in API Manager, and then invoke this API as a fallback API if the primary Order API is unavailable
• C. Redirect client requests through an HTTP 307 Temporary Redirect status code to the fallback API whenever the Order API is unavailable
• D. Set an option in the HTTP Requester component that invokes the Order API to instead invoke a fallback API whenever an HTTP 4xx or 5xx response status code is returned from the Order API

Answer: A

Explanation:

Correct Answer
Search Anypoint exchange for a suitable existing fallback API, and then implement invocations to this fallback API in addition to the order API
*****************************************
>> It is not ideal and good approach, until unless there is a pre-approved agreement with the API clients that they will receive a HTTP 3xx temporary redirect status code and they have to implement fallback logic their side to call another API.
>> Creating separate entry of same Order API in API manager would just create an another instance of it on top of same API implementation. So, it does NO GOOD by using clone od same API as a fallback API. Fallback API should be ideally a different API implementation that is not same as primary one.
>> There is NO option currently provided by Anypoint HTTP Connector that allows us to invoke a fallback API when we receive certain HTTP status codes in response.
The only statement TRUE in the given options is to Search Anypoint exchange for a suitable existing fallback API, and then implement invocations to this fallback API in addition to the order API.

NEW QUESTION 16
An organization wants MuleSoft-hosted runtime plane features (such as HTTP load balancing, zero downtime, and horizontal and vertical scaling) in its Azure environment. What runtime plane minimizes the organization's effort to achieve these features?

• A. Anypoint Runtime Fabric
• B. Anypoint Platform for Pivotal Cloud Foundry
• C. CloudHub
• D. A hybrid combination of customer-hosted and MuleSoft-hosted Mule runtimes

Answer: A

Explanation:

Correct Answer
Anypoint Runtime Fabric
*****************************************
>> When a customer is already having an Azure environment, It is not at all an ideal approach to go with hybrid model having some Mule Runtimes hosted on Azure and some on MuleSoft. This is unnecessary and useless.
>> CloudHub is a Mulesoft-hosted Runtime plane and is on AWS. We cannot customize to point CloudHub to customer's Azure environment.
>> Anypoint Platform for Pivotal Cloud Foundry is specifically for infrastructure provided by Pivotal Cloud Foundry
>> Anypoint Runtime Fabric is right answer as it is a container service that automates the deployment and orchestration of Mule applications and API gateways. Runtime Fabric runs within a customer-managed infrastructure on AWS, Azure, virtual machines (VMs), and bare-metal servers.
-Some of the capabilities of Anypoint Runtime Fabric include:
-Isolation between applications by running a separate Mule runtime per application.
-Ability to run multiple versions of Mule runtime on the same set of resources.
-Scaling applications across multiple replicas.
-Automated application fail-over.
-Application management with Anypoint Runtime Manager.

NEW QUESTION 17
An API has been updated in Anypoint Exchange by its API producer from version 3.1.1 to 3.2.0 following accepted semantic versioning practices and the changes have been communicated via the API's public portal.
The API endpoint does NOT change in the new version.
How should the developer of an API client respond to this change?

• A. The update should be identified as a project risk and full regression testing of the functionality that uses this API should be run
• B. The API producer should be contacted to understand the change to existing functionality
• C. The API producer should be requested to run the old version in parallel with the new one
• D. The API client code ONLY needs to be changed if it needs to take advantage of new features

Answer: D

NEW QUESTION 18
......
