NS0-184 Exam - NetApp Certified Storage Installation Engineer - ONTAP

NEW QUESTION 1
You completed a 2-node AFF A700 installation according to the poster. You run the disk show -fields
owner command and notice that all drives are assigned to node 1.
In this scenario, which tool would you use to access documentation and guidelines to solve the
issue?

• A. Active IQ Unified Manager
• B. Active IQ One Collect
• C. NET2
• D. NetAppDocs

Answer: D

Explanation:
Reference: https://github.com/NetAppDocs

NEW QUESTION 2
Which two functions does the management network provide? (Choose two.)

• A. to provide access to the system console of any node in the cluster
• B. to collect diag log files
• C. to replicate the cluster configuration to all nodes
• D. to transfer SVMs between the cluster nodes

Answer: AB

NEW QUESTION 3
You are deploying a new AFF All SAN Array A250 into a customer’s existing data fabric.
In this scenario, which two tools would give insight into their existing Cisco MDS fabric configuration?
(Choose two.)

• A. Brocade SAN Health
• B. Cisco Data Center Network Manager (DCNM)
• C. Active IQ
• D. Active IQ Config Advisor

Answer: BC

Explanation:
Explanation\:
Reference: https://www.cisco.com/c/en/us/products/collateral/storage-networking/mds-9700-seriesmultilayerdirectors/
cisco-ucs-mds.html
https://www.cisco.com/c/en/us/products/collateral/servers-unified-computing/ucs-x-series-modularsystem/
flexpod-datacenter-ucs-intersight.html

NEW QUESTION 4
You have a 2-node FAS8300 ONTAP 9.8 cluster that serves SMB shares. You are configuring interface
groups for higher performance and resiliency.
Which two NetApp best practices should you follow to satisfy these performance and resiliency
requirements? (Choose two.)

• A. Use ports from different NICs.
• B. Use ports from the same NICs.
• C. Use ports with different chipsets.
• D. Use ports with the same chipsets.

Answer: AD

Explanation:
Reference: https://www.netapp.com/media/19900-tr-4847.pdf (7)

NEW QUESTION 5
Which two statements are true about the LIFs that are used for a cluster peer relationship? (Choose two.)

• A. The MTU size must be set to 9000 bytes on all the LIFs used for the cluster peering.
• B. The LIFs must use the default intercluster service policy.
• C. The LIFs must be in dedicated broadcast domains an IPspaces.
• D. At least one LIF per node is required on each cluster.

Answer: BC

NEW QUESTION 6
After the installation of a new ONTAP 9.8 cluster, you have to verify if AutoSupport works.
In this scenario, which two commands would you use to accomplish this task? (Choose two.)

• A. system node autosupport history show
• B. system node autosupport check show
• C. system node autosupport destination show
• D. system node autosupport invoke

Answer: AB

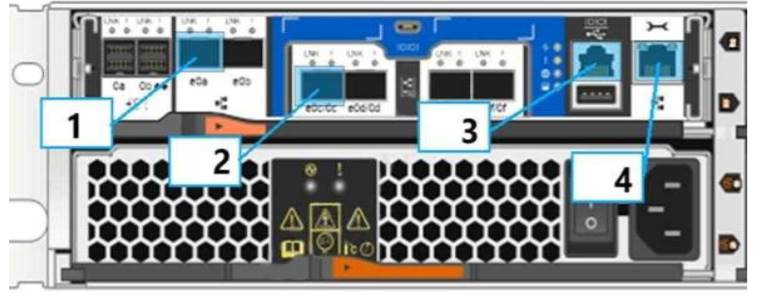

NEW QUESTION 7
Click the Exhibit button.

Referring to the numbers shown in the exhibit, which port on an AFF A220 controller is used as port e0M in
ONTAP?

• A. 4
• B. 3
• C. 2
• D. 1

Answer: A

NEW QUESTION 8
Your customer is migrating data from a legacy FAS8020 system that runs ONTAP9.5 software to a
new AFFA250 MetroClusteroverIP configuration.
In this scenario, which two methods would be supported to migrate the data? (Choose two.)

• A. PerformacontrollerswapfromtheFAS8020totheAFFA250s.
• B. Create a4-node cluster on one side and use the volmove commandtomigrate the data.
• C. Useahost-basedcopymigrationmethod.
• D. ConfigureaSnapMirrorcopybetweentheFAS8020andtheAFFA250systems.

Answer: AD

NEW QUESTION 9
YouareusingBroadcomBES-53248switchesforaclusterinterconnectinabaseconfiguration. In
thisscenario,whatistheminimumnumberofISLssupportedbetweentheswitches?

• A. 1
• B. 2
• C. 3
• D. 4

Answer: B

Explanation:
Reference: https://docs.netapp.com/us-en/ontap-systemsswitches/pdfs/sidebar/BES_53248_Switches.pdf (3)

NEW QUESTION 10
You are preparing for the installation of a new AFF A400 system with NS224 NS224 storage shelves. You want to gather information on the connectivity options for the external shelves. In this scenario, which NetApp tool would you use for this task?

• A. Hardware Universe.
• B. Active IQ Config Advisor
• C. Active IQ Unified Manager
• D. Interoperability Matrix Tool

Answer: A

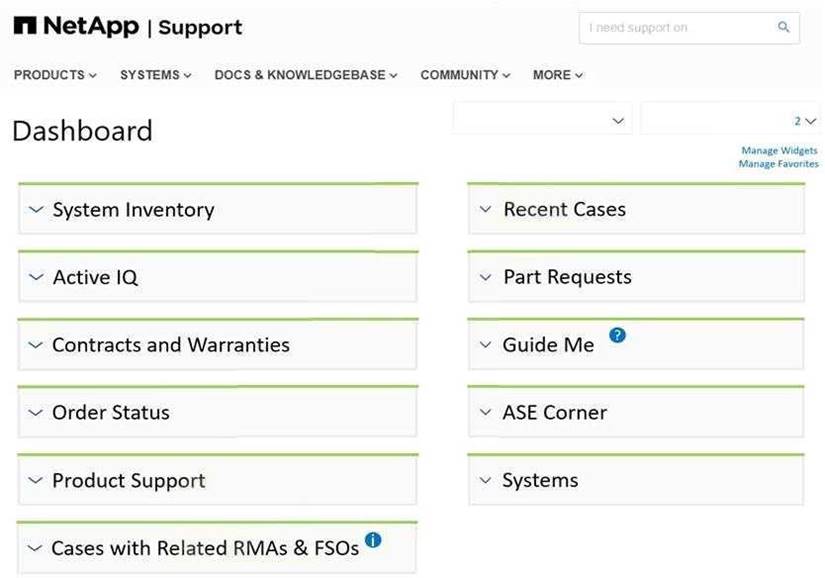

NEW QUESTION 11
Click the Exhibit button.

During an ONTAP cluster handover procedure, your customer asks how to identify and solve issues
that might occur on the newly deployed array.
Referring to the exhibit, which two widgets would the customer use to help with these issues?
(Choose two.)

• A. Guide Me
• B. Active IQ
• C. Contracts and Warranties
• D. ASE Corner

Answer: AC

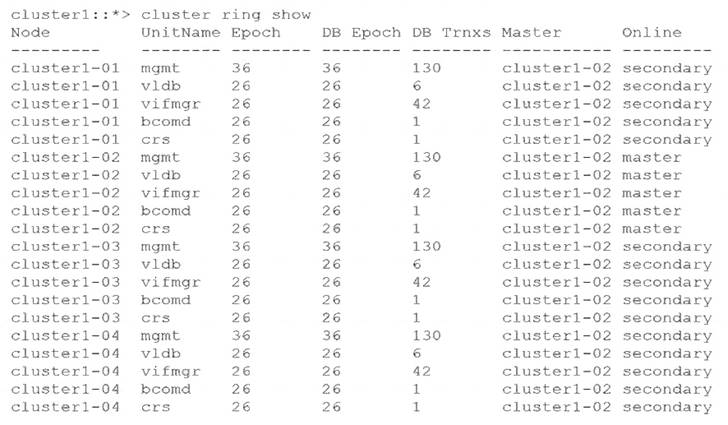

NEW QUESTION 12
Click the Exhibit button.

Immediately after installing a 4-node FAS8200 cluster, you discover that node, “cluster1-02”, must be
removed from the cluster. You want to use the cluster remove-node command to remove the node.
Referring to the exhibit, which two statements are correct? (Choose two.)

• A. Verify that high availability is configured for failover to the HA partner, then remove the node.
• B. Make the node ineligible by using the cluster modify -eligibility false command, then remove the node.
• C. Move Epsilon to cluster1-02, then remove the node.
• D. Remove the node, then the cluster will elect a new master to remain in quorum.

Answer: AC

NEW QUESTION 13
Which two switch operating system are supported on ONTAP cluster switches? (Choose two.)

• A. Brocade FOS
• B. Cisco NX-OS
• C. CiscoIOS
• D. Broadcom EFOS

Answer: BD

Explanation:
Reference: https://docs.netapp.com/us-en/ontap-systems-switches/pdfs/fullsitesidebar/AFF_and_FAS_Switch_Documentation.pdf

NEW QUESTION 14
A storage administrator is trying to upgrade a pair of FAS2520s with internal SATA storage to a new 2-node FAS8300 cluster. The storage administrator wants to preserve the existing data.
In this scenario, which two capabilities are available to the storage administrator? (Choose two.)

• A. the ability to move the volumes from the old nodes to the new nodes
• B. the ability to pull out the tray of internal disks of the FAS2520s and reseat the tray in the internal storage of the FAS8300s
• C. the ability to create a 4-node MetroCluster across the four nodes
• D. the ability to convert the FAS2520s to disk shelves and attach them to the new nodes

Answer: CD

NEW QUESTION 15

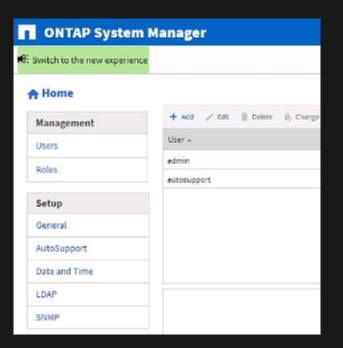

Exhibit:

You finished installing an ONTAP cluster and must inform the customer of the completion. As part of this exercise, you will show how to configure the ONTAP cluster using ONTAP System Manager, so that NetApp will receive notifications of any future issues. What would you select to allow the customer to receive this information?

• A. General
• B. Date and Time
• C. Users
• D. AutoSupport

Answer: D

NEW QUESTION 16
You are setting up a peer relationship between two ONTAP clusters.
In this scenario, which two statements are true regarding authentication?

• A. Peering authentication status can be verified with the cluster peer show command.
• B. Peering authentication can be configured using LDAP users and groups.
• C. Peering authentication is required before enabling peering encryption.
• D. Peering authentication can use an ONTAP generated passphrase.

Answer: AD

NEW QUESTION 17
What is a benefit of ONTAP System Manager?

• A. System Manager provides simplified management of service processor tasks.
• B. System Manager easily configures and provisions storage.
• C. System Manager easily configures and provisions StorageGRID.
• D. System Manager provides simplified management of E-Series.

Answer: B

NEW QUESTION 18
Your customer wants to know more about the network configuration within the cluster.
In this scenario, which statement is correct about a LIF?

• A. A LIF is a port that provides physical connections.
• B. A LIF is created within a broadcast domain and contains a pool of IP address.
• C. A LIF is an IP address or a WWPN that is associated with a port.
• D. A LIF separates network domains to access cluster data.

Answer: C

NEW QUESTION 19

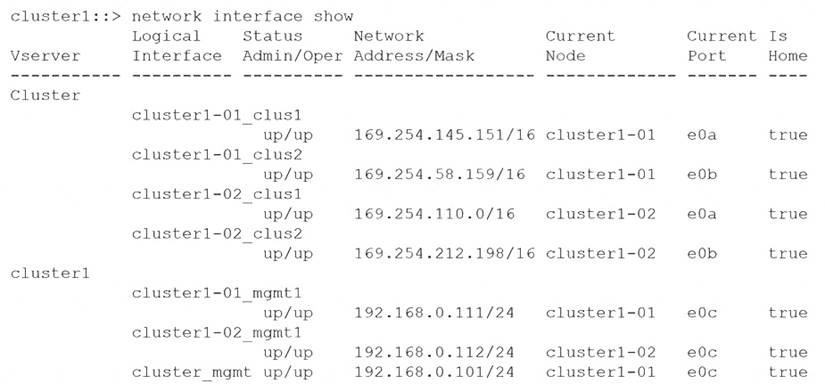

Click the Exhibit button.

You are installing a new AFF All SAN Array A700 HA pair.
Referring to the exhibit, which IP address would have been used to join node 02 to the cluster during setup?

• A. 192.168.0.112
• B. 169.254.212.198
• C. 169.254.145.151
• D. 192.168.0.101

Answer: A
