NS0-520 Exam - NetApp Certified Implementation Engineer - SAN. ONTAP

NEW QUESTION 1

You have three Windows servers and one Linux server, each with dual-ported HBAs that are connected into a dual fabric.
In this scenario, what is the minimum number of zones that you need to create within each fabric switch?

• A. 8
• B. 1
• C. 4
• D. 2

Answer: A

NEW QUESTION 2

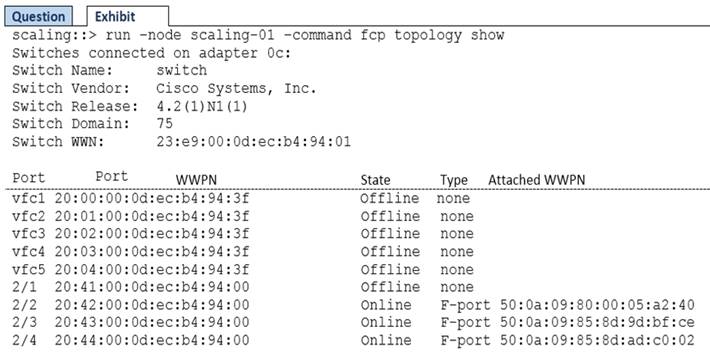

A customer has an AFF A700 connected to a Cisco switch and has verified connectivity but cannot see any LUNs. The customer issued the run -node scaling-01 -command fcp topology show command to verify the connection.
Referring to the exhibit, what needs to be enabled on the Cisco switch?

• A. Trunking needs to be enabled.
• B. VSAN needs to be enabled.
• C. NPIV needs to be enabled.
• D. VFC needs to be enabled.

Answer: D

NEW QUESTION 3

You have a 4-node cluster with a FAS8200 HA pair and an AFF A300 HA pair. You need to migrate a LUN from a FAS8200 node to an AFF A300 node for faster performance.
Which method will non-disruptively migrate the LUN to the AFF A300 while retaining snapshots of the LUN on the FAS8200?

• A. You move the LUN.
• B. You relocate the aggregate.
• C. You move the volume.
• D. You copy the LUN.

Answer: D

NEW QUESTION 4

You are planning on implementing a new SAN on AFF A400 controllers. The data set consists of unique 1 KB files that will be encrypted before being written to the SAN.

• A. Compaction
• B. compression
• C. Deduplication
• D. Autogrow

Answer: A

Explanation:
A screenshot of a computer Description automatically generated with medium confidence

NEW QUESTION 5

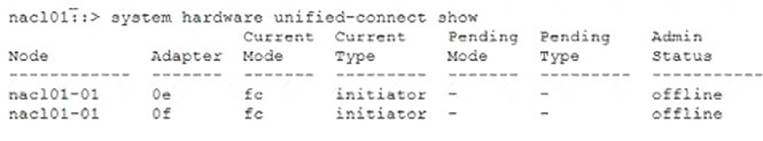

Your customer asks you to configure a newly installed FAS8300 for an FC host connection. Referring to the exhibit, which step accomplishes this task?

• A. Configure the ports 0e and 0f as a mode of CNA
• B. Configure the ports 0e and 0f as type of target
• C. Configure the ports 0e and 0f as status admin up
• D. Configure the ports 0e and 0f as status admin down

Answer: B

Explanation:
To change the port type from initiator to target you need to take the port offline The ports need to be on target mode to present LUNs to the hosts.
You can find more information on this link:
https://docs.netapp.com/ontap-9/index.jsp?topic=%2Fcom.netapp.doc.dot-cm-sanag%2FGUID-193C6818-EDB

NEW QUESTION 6

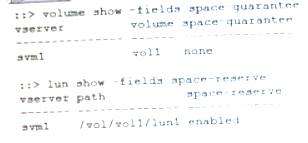

Exhibit.

Referring to the exhibit, which two statements are true? (Choose two.)

• A. The volume guarantee has no effect.
• B. LUN overwrites are guaranteed.
• C. The LUN might run out of space.
• D. The LUN space reservation has no effect.

Answer: BC

NEW QUESTION 7

You create a new iSCSI SVM and secure iSCSI sessions by using both Challenge-Handshake Authentication Protocol (CHAP) and iSCSI Access Control Lists (ACL).
In this scenario, in which two ways are you securing your iSCSI implementation? (Choose two.)

• A. CHAP creates a hash value for the username and shared secret.
• B. iSCSI ACLs are applied to the initiator configuration to provide an IP address of the targets.
• C. CHAP encrypts all iSCSI session I/O.
• D. iSCSI ACLs are applied to the target configuration to provide an IP address of the initiators.

Answer: AD

NEW QUESTION 8

What is the default Ethernet packet size (or MTU - Maximum Transmission Unit) for Ethernet ports on Ethernet switches?

• A. 2112 bytes
• B. 9000 bytes
• C. 1500 bytes
• D. 12000 bytes

Answer: C

NEW QUESTION 9

Which row of items should you look up in the IMT (Interoperability Matrix Tool) when designing a NetApp Storage Solution for a customer?

• A. Host OS & patches, FC WWPN, Volume Manager, File System version
• B. Host OS, iSCSI IQN, Volume Manager, Clustering
• C. Host OS & patches, HBA driver, Volume Manager, File System, Clustering
• D. Host OS, HBA driver, Host Memory & CPU Speed, File System, Clustering

Answer: C

NEW QUESTION 10

You have a two node Netapp ONTAP cluster that is hosting FC LUNs for 90 SAN hosts. The hosts are experiencing occasional performance problems and receiving QFULL responses from the cluster
nodes. Which action would solve this issue?

• A. Increase the queue depth on the target ports
• B. Configure additional FC target ports
• C. Increase the queue depth on the initiator ports
• D. Configure additional FC ports on the hosts

Answer: B

Explanation:
Adding more FC initiators on host will not solve this bottle-neck situation, we can try to increase the queue depth but we need the number of hosts and the number of target ports to calculate it correctly.
We need to add more FC target ports on our storage to keep the load balanced and distributed You can find more information on this link
https://docs.netapp.com/ontap-9/index.jsp?topic=%2Fcom.netapp.doc.dot-cm-sanconf%2FGUID-A055B184-08

NEW QUESTION 11

Which formula is appropriate for calculating target port Queue Depth?

• A. The number of LIFs using a physical port * 256
• B. The sum of the Queue Depth setting for all hosts using a physical port
• C. The number of LIFs using the physical port * Maximum Host HBA Queue Depth setting
• D. The number of physical ports * 2048

Answer: C

NEW QUESTION 12

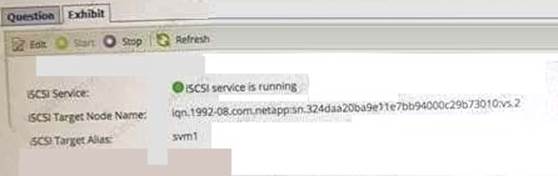

Exhibit.

You are asked to change the iSCSl Target Node Name of an SVM named SVM1 that is serving data. Referring to the exhibit, which two statements are correct? (Choose two.)

• A. Reconnect all the lUNs alter renaming the target node.
• B. Disable Selective LUN Mapping (SIM) and create port sets.
• C. Unmap and re-map the LUNs.
• D. Stop and start the iSCSI service.

Answer: CD

NEW QUESTION 13

Which two components must be verified for a supported NetApp SAN confutation? (Choose two.)

• A. host memory
• B. host GPU
• C. host multipath
• D. host bus adapter

Answer: CD

NEW QUESTION 14

You are configuring a Windows Server 2019 system to attach to an ISCSI presented LUN. There are multiple physical paths from the Windows Server to the Netapp Cluster. Which two changes are required
to the Windows Server to enable multipath? (choose two)

• A. Add an Ethernet network adapter
• B. Select the “enable multi-path” checkbox on the ISCSI software initiator
• C. Add a converged network adapter (CNA)
• D. Enable MPIO by selecting the option in the MPIO properties administrative application

Answer: BD

Explanation:
Select Enable multi-path, select Automatically restore this connection when the computer starts or Add this connection to the list of Favorite Targets, and then click Advanced
You can find more information on this link:
https://docs.netapp.com/ontap-9/topic/com.netapp.doc.exp-iscsi-cpg/iSCSI%20express%20configuration%20for (15)

NEW QUESTION 15

You want to create an additional SVM from the System Manager GUI to serve data only using block-based protocols. You know the SVM name, the aggregate containing the root volume, and the required protocols.
What other information is required to successfully create this SVM?

• A. name servers
• B. SVM Management LIF network details
• C. search domains
• D. root volume security style

Answer: D

NEW QUESTION 16

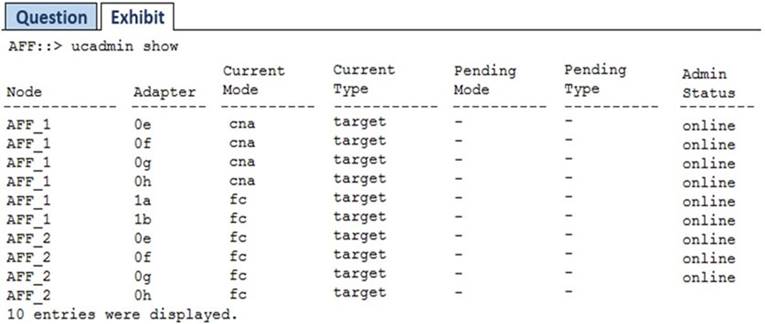

A customer needs to change ports 0e and 0f on AFF_1 to support FC.
Referring to the exhibit, which three steps are required to accomplish this task? (Choose three.)

• A. Issue the ucadmin modify -node AFF_1 -adapter 0e -mode FC -type target command.
• B. Issue the ucadmin modify -node AFF_1 -adapter 0e -mode FC -type initiator command.
• C. Restart the FC service.
• D. Take ports 0e and 0f offline.
• E. Reboot the node.

Answer: BCD

NEW QUESTION 17

Which FC service is used by a host for discover service to locate FC targets that are available?

• A. The fabric configuration server
• B. The fabric name service
• C. The fabric zone server
• D. The fabric security server

Answer: B

Explanation:
When a node is connected to the FC SAN, each SVM registers the World Wide Port Name (WWPN) of its LIF with the switch Fabric Name Service.
You can find more information on this link:
https://docs.netapp.com/ontap-9/index.jsp?topic=%2Fcom.netapp.doc.dot-cm-sanag%2FGUID-6DDD6DEC-B3
